4.4. Arithmetic Instructions Tab

Nios® II/f cores offer hardware multiply and divide options. You can choose the best option to balance embedded multiplier usage, logic element (LE) usage, and performance.

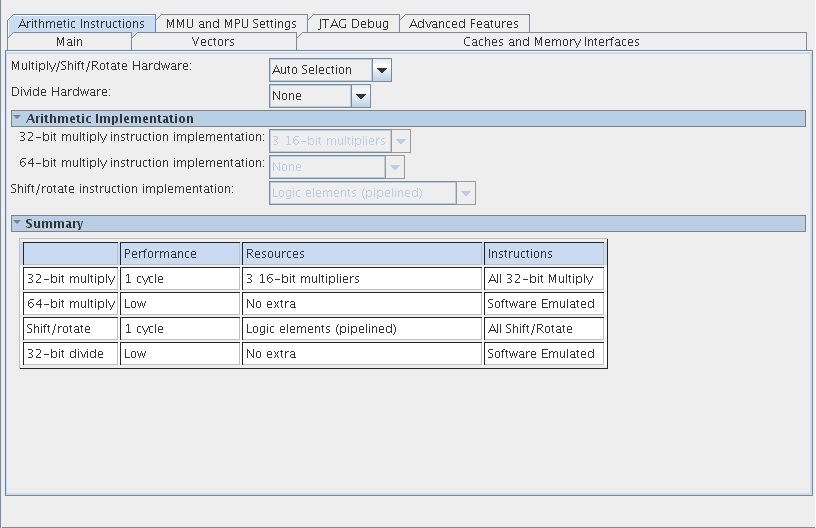

Figure 9.  Nios® II Platform Designer Arithmetic Instructions Tab

Section Content
Arithmetic Instructions
Arithmetic Implementation
