6.2.2. PCIe0 Configuration, Debug and Extension Options

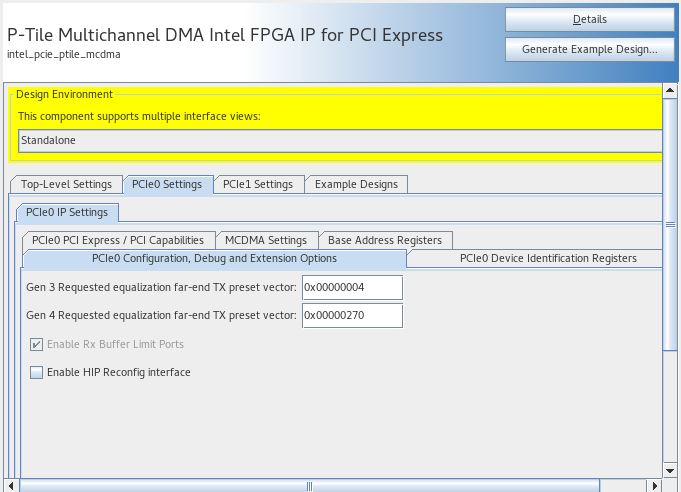

Figure 28. Endpoint PCIe0 Configuration, Debug and Extension Options [P-Tile]

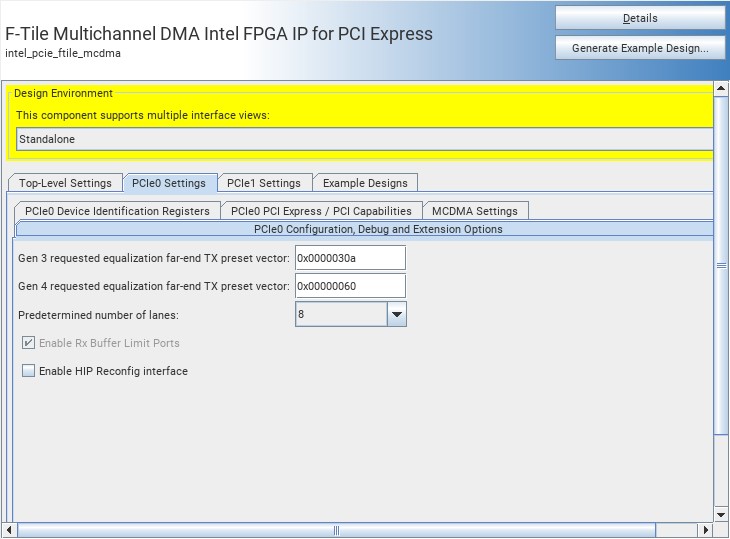

Figure 29. Endpoint PCIe0 Configuration, Debug and Extension Options [F-Tile]

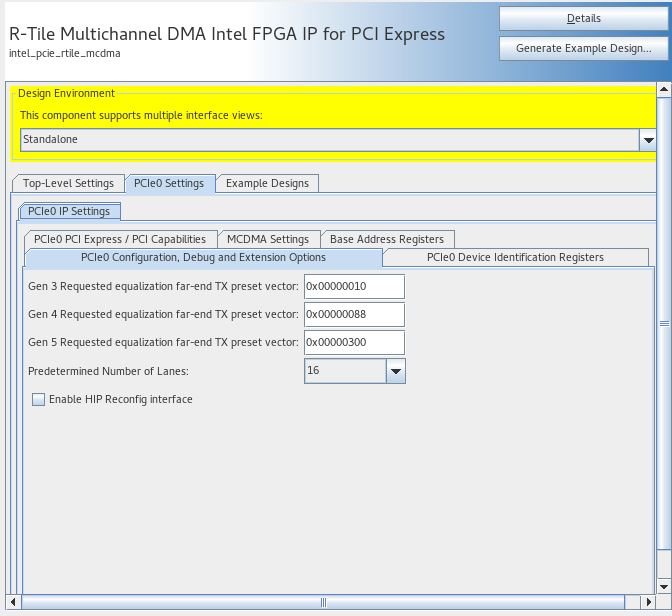

Figure 30. Endpoint PCIe0 Configuration, Debug and Extension Options [R-Tile]

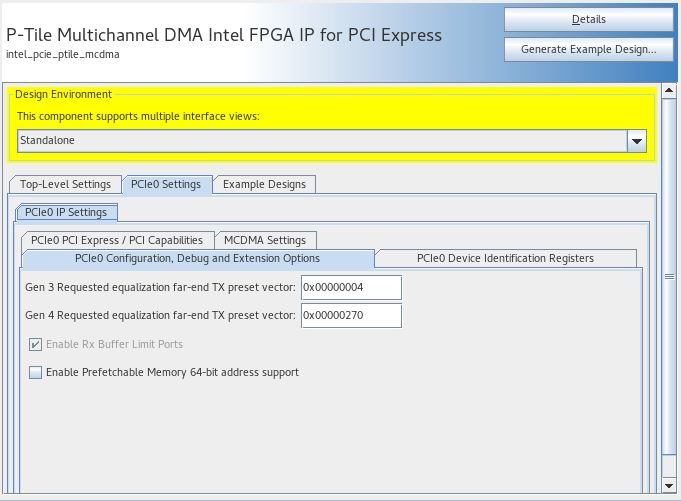

Figure 31. Rootport PCIe0 Configuration, Debug and Extension Options [P-Tile]

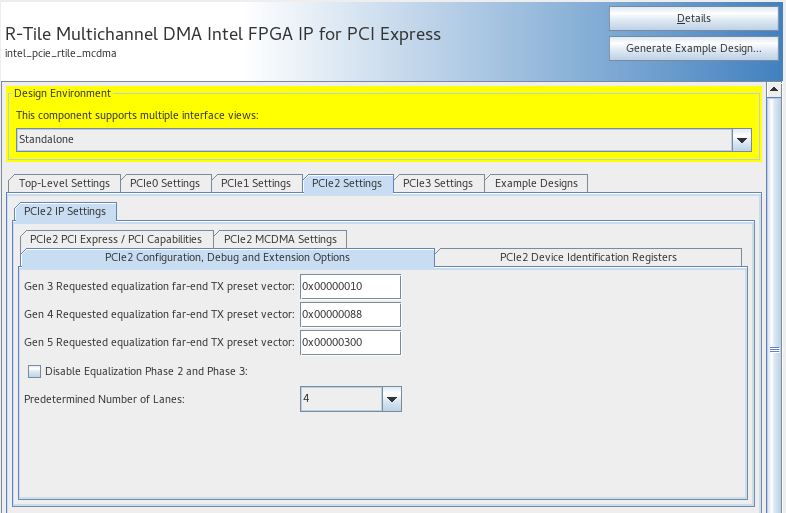

Figure 32. RootPort PCIe2 Configuration, Debug and Extension Options [R-Tile]
Table 74.  PCIe0 Configuration, Debug and Extension Options
Parameter Value Default Value Description

Gen 3 Requested equalization far-end TX preset vector

0 - 65535

0x00000004 (for P-Tile)

0x0000030a (for F-Tile)

0x00000200 (for R-Tile Rev. A)

0x00000010 (for R-Tile Rev. B)

Specifies the Gen 3 requested phase 2/3 far-end TX preset vector. Choosing a value different from the default is not recommended for most designs.

Gen 4 Requested equalization far-end TX preset vector

0 - 65535

0x00000270 (for P-Tile)

0x00000360 (for F-Tile)

0x00000008 (for R-Tile Rev. A)

0x00000088 (for R-Tile Rev. B)

Specifies the Gen 4 requested phase 2/3 far-end TX preset vector.

Choosing a value different from the default is not recommended for most designs.

Gen5 Requested equalization far-end TX preset vector

0 - 65535

0x00000200 (for R-Tile Rev. A)

0x00000300 (for R-Tile Rev. B)

Specifies the Gen 5 requested phase 2/3 far-end TX preset vector.

Choosing a value different from the default is not recommended for most designs.

Predetermined number of lanes (for R-Tile and F-Tile)

16

8

4

2

1

Maximum link width

Defines the number of lanes which are connected and good.

Enable HIP Reconfig interface

On / Off

Off

Enables HIP reconfiguration interface

Note: This interface is automatically enabled in Root Port mode. Hence, the parameter is not available for user modification in Root Port mode.

Enable Prefetchable Memory 64-bit address support (Root Port mode only)

On / Off

Off

When in RP mode, indicates that the prefetchable memory range supported is 64-bit.

Note: This feature is supported for P-Tile and F-Tile only.

Disable Equalization Phase 2 and Phase3

On / Off

Off

When this parameter is selected, there is no Equalization in Phase 2 and 3 during PCI Express link training.

Note: This feature is only supported for R-Tile and with Root Port mode.
