7.1. Generating the IP Core

You can use the Intel® Quartus® Prime Pro Edition IP Catalog or Platform Designer to define and generate a Multi Channel DMA IP for PCI Express custom component.

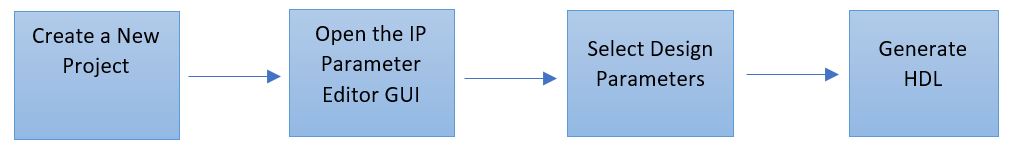

Follow the steps shown in the figure below to generate a custom Multi Channel DMA IP for PCI Express component.
Figure 40. IP Generation Flowchart

You can select Multi Channel DMA IP for PCI Express in the Intel® Quartus® Prime Pro Edition IP Catalog or Platform Designer as shown below.

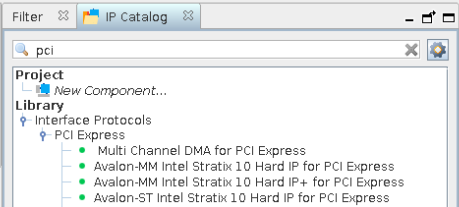

Figure 41.  Intel® Quartus® Prime Pro Edition IP Catalog (with filter applied)

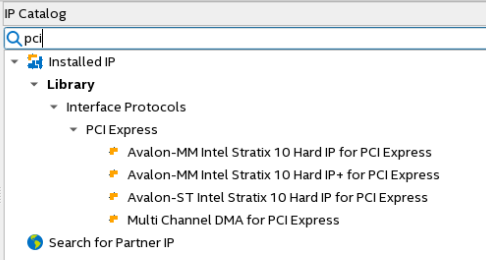

Figure 42.  Intel® Quartus® Prime Pro Edition IP Catalog (with filter applied)

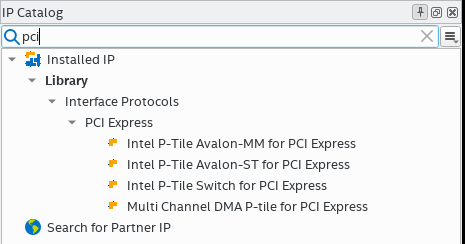

Figure 43.  Platform Designer IP Catalog (with filter applied)
