6.2.5. MCDMA Settings

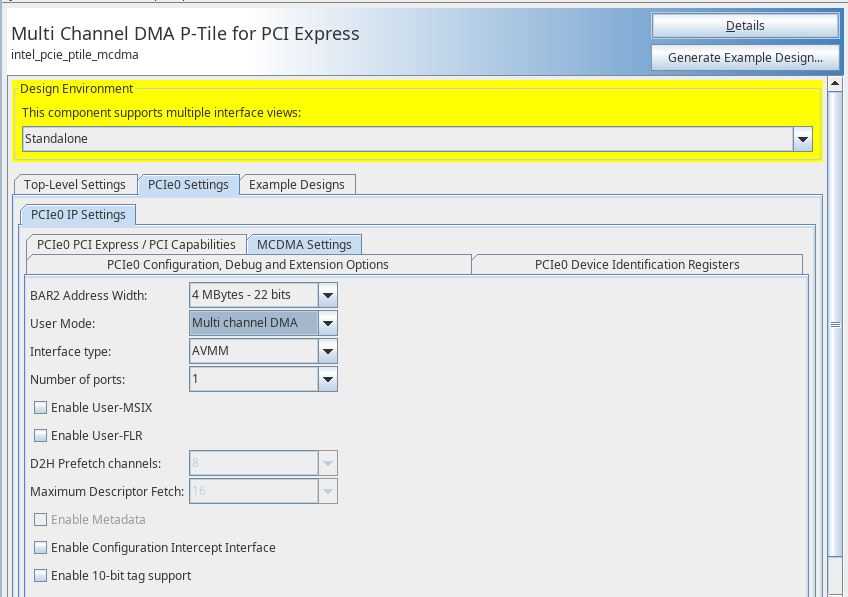

Figure 25. MCDMA Settings Parameters
Table 84.  MCDMA Settings
Parameter Value Default Value Description

BAR2 Address Width

128 Bytes - 8 Bytes

4 Mbytes – 22 bits

Address width for PIO AVMM port. Default address width is 22 bits

User Mode

Multi channel DMA

Bursting Master

Bursting Slave

BAM-BAS

BAM-MCDMA

Data Mover Mode only

Multi channel DMA

This option allows user to configure the mode of operation for MCDMA IP. MCDMA mode has the DMA functionality. BAM and BAS offer Bursting Master and Slave AVMM capabilities without DMA functionality

Interface type

AVMM

AVST

AVMM

User logic interface type for D2HDM and H2DDM.

Default: Avalon-MM Interface

Number of ports

1

4

1

If Interface Type = AVMM, Value =1

If Interface Type = AVST, Value= 1 or 4

Enable User-MSIX

On / Off

Off

User MSI-X is enables user application to initiate interrupts through MCDMA, this option is available only if the user selects MCDMA mode

Enable User-FLR

On / Off

Off

User FLR, interface allows passing of FLR signals to the user side application

D2H Prefetch channels

8

16

32

64

128

256

8

Sets the D2H Prefetch channels

In the current release, the D2H Prefetch Channels parameter follows the total number of DMA channels that you select in the IP Parameter Editor up to 256 total channels. When the total number of channels selected is greater than 256, then D2H Prefetch channels are fixed to 64.

Note: This parameter applicable to AVST 1 port interface only.

Maximum Descriptor Fetch

16

32

64

16

Sets the maximum descriptors that are fetched per D2H prefetch channel.

Note: This parameter is applicable to AVST 1 port interface only.

Enable Metadata

On / Off

Off

Enables Metadata

Note: This parameter is only available when the Interface Type is set to AVST.

Enable Configuration Intercept Interface

On / Off

Off

Select to enable configuration intercept interface.

Enable 10-bit tag support

On / Off

Off

This parameter is available for the following user modes only:
  • Multi channel DMA mode
  • BAM+MCDMA mode
