3.4.6.4.1. Examples of Advanced Triggering Expressions

The following examples show how to use advanced triggering:

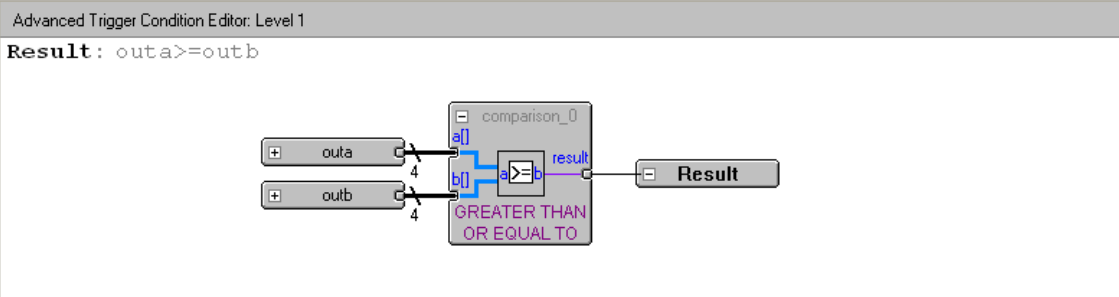

Figure 44. Bus outa Is Greater Than or Equal to Bus outbTrigger when bus outa is greater than or equal to outb.

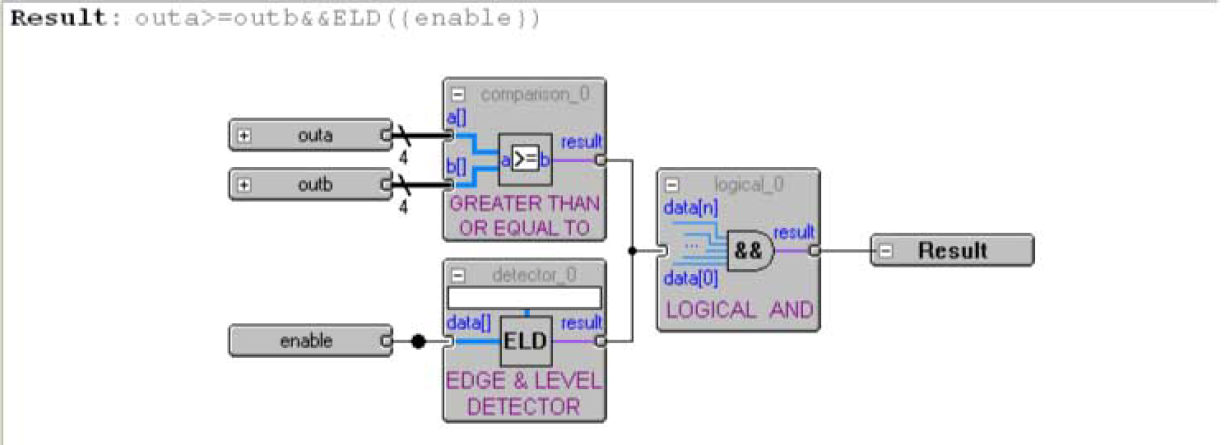

Figure 45. Enable Signal Has a Rising EdgeTrigger when bus outa is greater than or equal to bus outb, and when the enable signal has a rising edge.
Figure 46.  Bitwise AND OperationTrigger when bus outa is greater than or equal to bus outb, or when the enable signal has a rising edge. Or, when a bitwise AND operation has been performed between bus outc and bus outd, and all bits of the result of that operation are equal to 1.
