2.3.1. I/O Assignments with the Intel® Quartus® Prime Assignment Editor
You can assign all instance-specific settings and constraints through the Intel® Quartus® Prime Assignment Editor. You can filter assignments by node name or category.

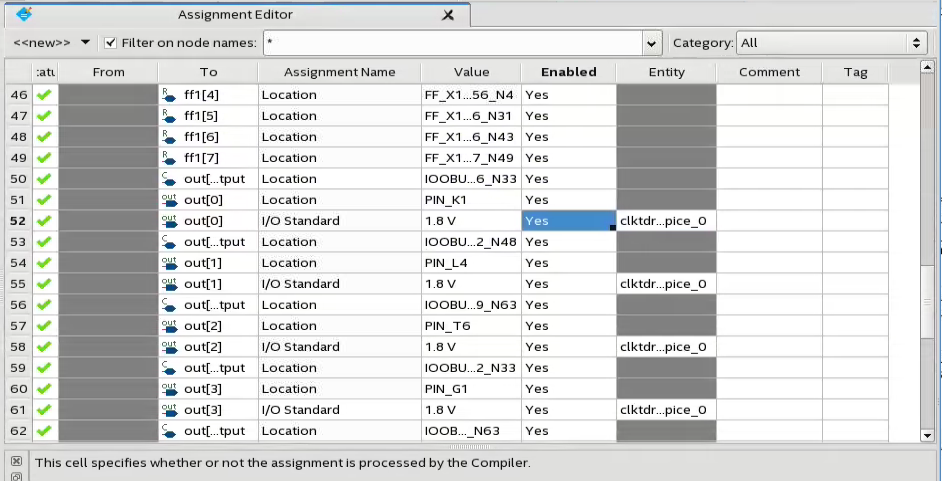

Figure 4. Intel® Quartus® Prime Assignment Editor This figure shows an example of the user interface and does not represent actual components, features, or settings supported by F-Series and I-Series FPGAs.
![](/content/dam/docs/us/en/683780/23-3/hss1565142400541.png)
