7.1.5.2. Locate Path from the Timing Analysis Report to the Chip Planner

To locate a path from the Timing Analysis report to the Chip Planner, perform the following steps:
  1. Select the path you want to locate in the Timing Analysis report.
  2. Right-click the path and point to Locate Path > Locate in Chip Planner.
    The path appears in the Locate History window of the Chip Planer.

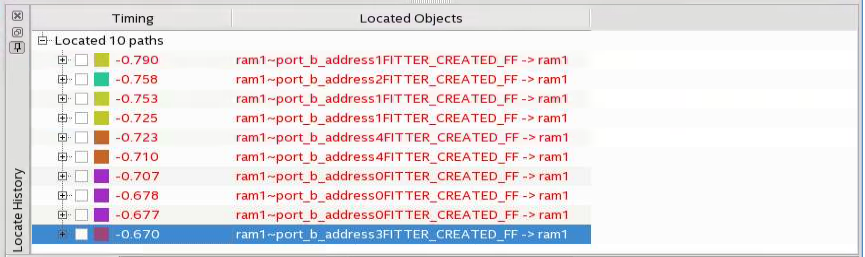

    Figure 87. Path List in the Locate History Window


Level Two Title
