7.1.3.12. Viewing Module Placement by Cross-Probing to Chip Planner

You can use cross-probing to determine the location of a design module on the device in Chip Planner.

To view the placement of a module with cross-probing following place and route:

  1. On the Project Navigator Hierarchy tab, right-click on a module name and click Locate in Chip Planner.

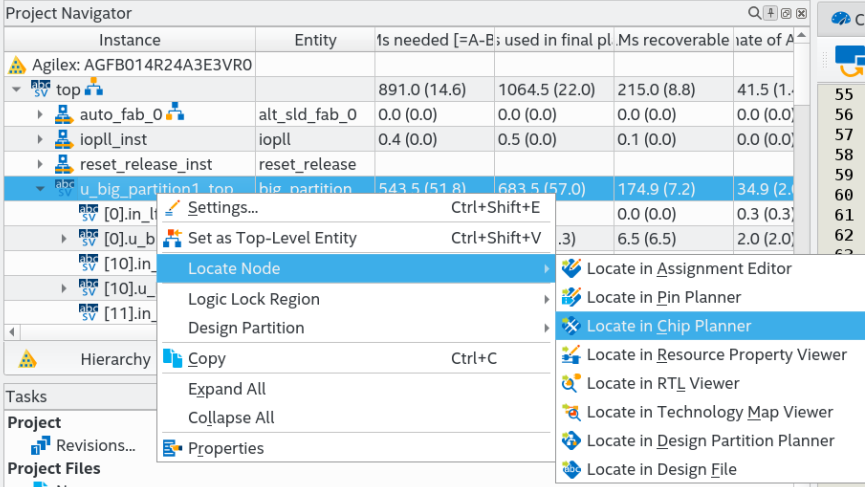

    Figure 78. Locate in Chip Planner Command from Project Navigator


  2. In the Reports pane, view the list of Located Entities color-coded and separated by module.

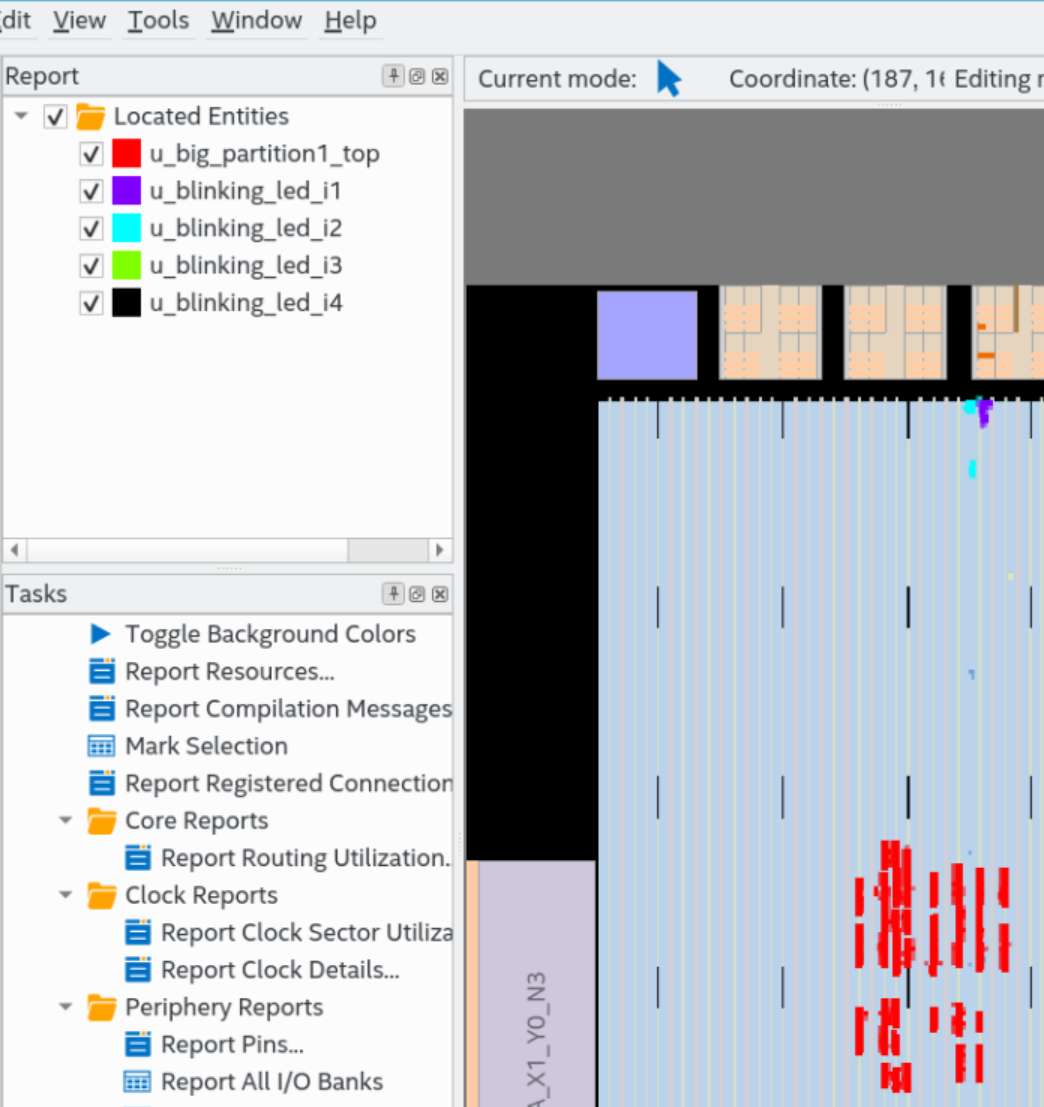

    Figure 79. Located Entities in Reports Pane
