2.3. Simulating the Design Example

The simulation setup involves the use of a Root Port Bus Functional Model (BFM) to exercise the R-tile Avalon® Streaming IP for PCIe (DUT) as shown in the following figure.

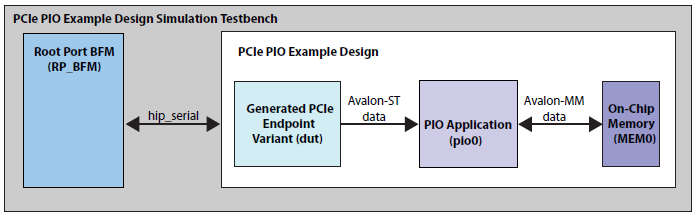

Figure 12. PIO Design Example Simulation Testbench

For a more detailed description of the testbench and the modules inside it, refer to Testbench. Also, for more details on the Root Port BFM specifically, refer to the Root Port BFM section.

The following flow diagram shows the steps to simulate the design example:

Figure 13. Procedure
Note: R-tile does not support parallel PIPE simulations.

The following figure shows the link status information for a Gen5 x16 Endpoint simulation:

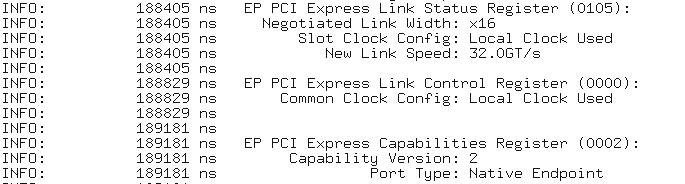

Figure 14. Link Status for a Gen5 x16 Endpoint Simulation

After a successful simulation, the simulation.log file will contain the "successful completion" message as shown in the following figure:

Figure 15. Successful Simulation Message

This testbench simulates up to a Gen5 x16 variant.

The simulation reports, "Simulation stopped due to successful completion" if no errors occur.
