4.1. E-Tile Channel Placement Tool

E-tile supports datacenters, 5G networks, Smart Grid and other market segments. Ethernet, CPRI and OTN are the backbone of these emerging and traditional technologies. The E-Tile Channel Placement Tool, in conjunction with the Device Family Pin Connection Guidelines, allows you to swiftly plan protocol placements in the product prior to reading comprehensive documentation and implementing designs in Intel® Quartus® Prime.
Note: For channel placement guidance for the OTN protocol, please contact Intel Representative and quote ID #18019485989.

The Excel-based E-Tile Channel Placement Tool, supplemented with Instructions, Legend, and Revision tabs, is available for download at E-Tile Channel Placement Tool.

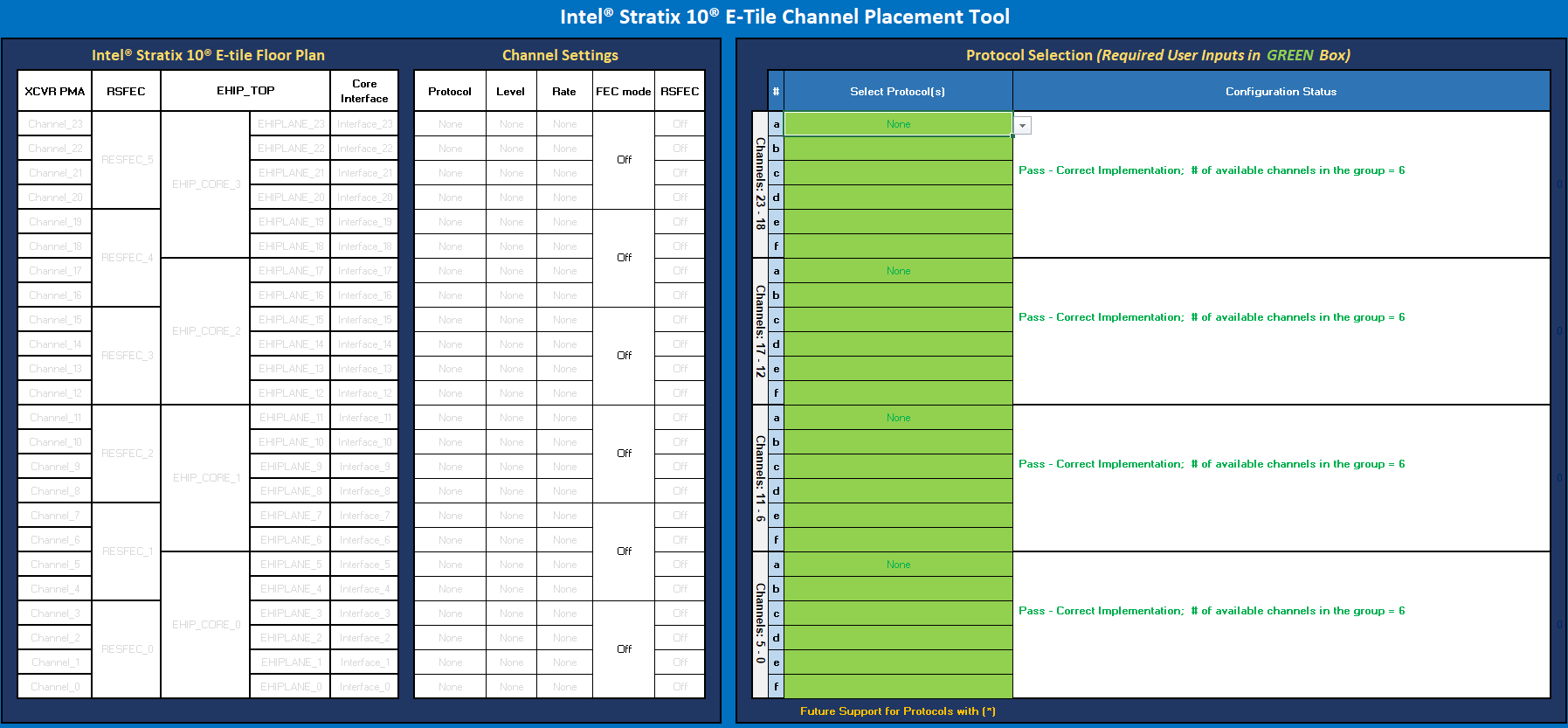

Figure 92. E-Tile Channel Placement Tool
