5.14. Intel® FPGA PTC - HBM Page
The HBM data entry page of the Intel® FPGA Power and Thermal Calculator (PTC) shows the power information pertaining to high-bandwidth memory (HBM). This page is available for Intel® Agilex™ 7 M-series and Intel® Stratix® 10 devices only.
Column Heading | Description | |
---|---|---|
Entity Name | A user-editable field to name each entity of the design. | |
Full Hierarchy Name | Specify the hierarchical path relevant to this entry. This is an optional entry. When entering levels of hierarchy, the pipe character (|) denotes a level of hierarchy. | |
HBM ID | Select the top or bottom HBM stack in devices that include multiple stacks. | |
Channel ID | Selects a particular die in the stack. | |
PC0 Traffic Pattern | Select the traffic pattern that most closely matches your application. (PC0 and PC1 refer to the two pseudo-channels that each physical channel [0-7] is divided into; you can select different traffic patterns for each pseudo-channel.) Intel Stratix 10 devices only. | |
PC1 Traffic Pattern | Select the traffic pattern that most closely matches your application. (PC0 and PC1 refer to the two pseudo-channels that each physical channel [0-7] is divided into; you can select different traffic patterns for each pseudo-channel.) Intel Stratix 10 devices only. | |
Pseudo channel 0 | Read Rate % | Select to most closely match your application. Intel® Agilex™ 7 M-series devices only. |
Bandwidth % | ||
Page Hit Rate % | ||
Pseudo channel 1 | Read Rate % | Select to most closely match your application. Intel® Agilex™ 7 M-series devices only. |
Bandwidth % | ||
Page Hit Rate % | ||
User Comment | User Comment field. |

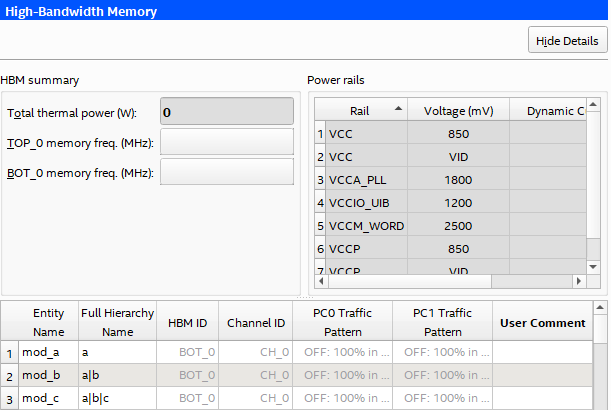

Figure 41. HBM Page of the Intel® FPGA PTC ( Intel® Stratix® 10 Devices)

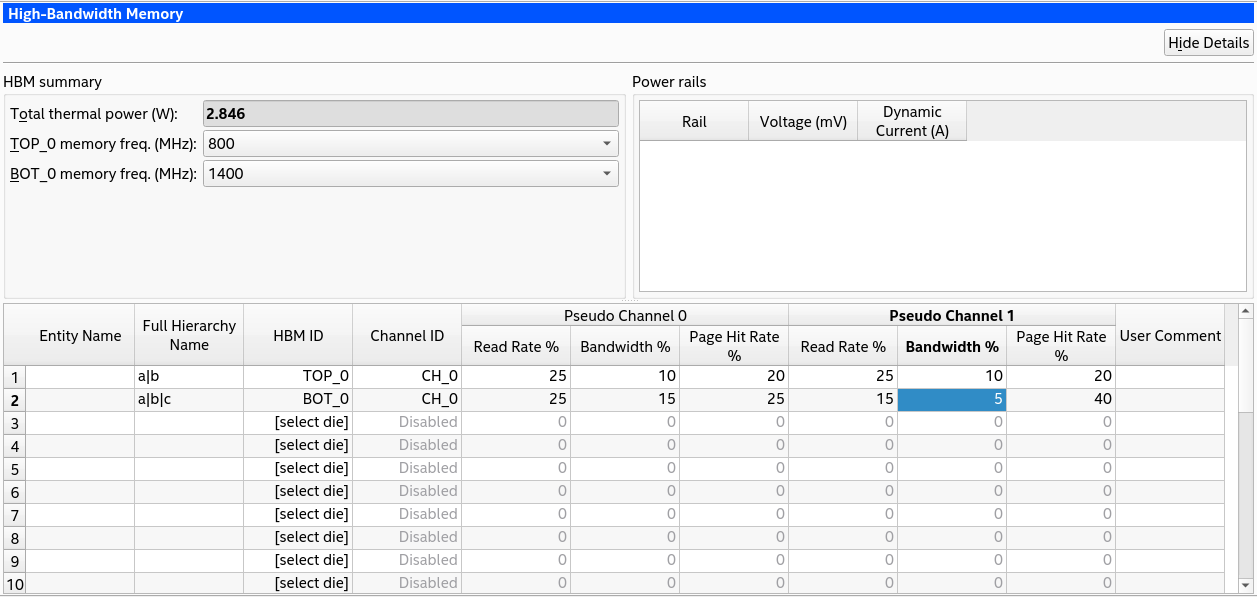

Figure 42. HBM Page of the Intel® FPGA PTC ( Intel® Agilex™ 7 M-series Devices)
