3. IP Parameter Settings

You customize the IP core by specifying parameters in the IP parameter editor.

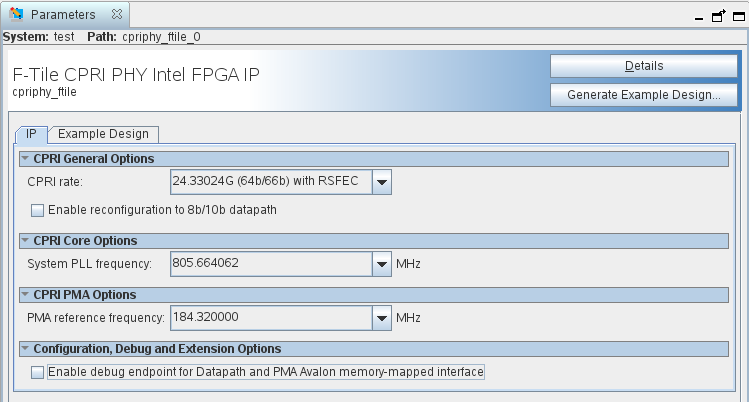

Figure 5. IP Parameter Editor
Table 8.  Parameter Settings: IP Tab
Parameter Supported Values Default Setting Description
CPRI General Options
CPRI Rate
  • 1.2288G (8b/10b)
  • 2.4376G (8b/10b)
  • 3.072G (8b/10b)
  • 4.9152G (8b/10b)
  • 6.144G (8b/10b)
  • 9.8304G (8b/10b)
  • 10.1376G (64b/66b)
  • 10.1376G

    (64b/66b)

  • 12.16512G (64b/66b)
  • 12.16512G (64b/66b) with RS-FEC
  • 24.33024G (64b/66b)
  • 24.33024G (64b/66b) with RS-FEC
 24.33024G (64b/66b) with RS-FEC Selects the CPRI data rate.

The hard RS-FEC block is included in the core if you select 10.1376, 12.1651, and 24.33024 Gbps (64b/66b) with the RS-FEC option.

Enable Reconfiguration to 8b/10b Datapath
  • On
  • Off
 Off Turn on this parameter if you plan to reconfigure the CPRI line rate of your channels from 64b/66b datapath rates to 8b/10b datapath rates at run-time.

If this option is not enabled, the CPRI IP core uses fewer resources, and you cannot change to 8b/10b datapath rates at run-time.

CPRI Core Options
System PLL Frequency
  • 805.664062 MHz
  • 830.078125 MHz
  • 903.125 MHz
 805.664062 MHz Select the System PLL frequency for your IP.
CPRI PMA Options
PMA Reference Frequency
  • 153.6 MHz
  • 184.32 MHz
 184.32 MHz Only one value of the reference clock frequency is supported for each CPRI line rate:
  • For CPRI line rates that include 8b/10b soft PCS, use a reference clock of 153.6 MHz.
  • For CPRI line rates that include 64b/66b hard PCS, use a reference clock of 184.32 MHz.
Configuration, Debug, and Extension Option
Enable Debug Endpoint for Datapath and PMA Avalon Memory-Mapped Interface
  • On
  • Off
 Off When turned On, the F-Tile CPRI PHY Intel FPGA IP core includes an embedded Debug Endpoint that internally connects the Avalon memory-mapped agent interface. The Debug Endpoint can access the reconfiguration space of the PMA interface block. it can perform certain tests and debug functions through JTAG using the System Console. This option may require that you include a jtag_debug link in the system.

For parameters in the Example Design tab, refer to the device specific F-Tile CPRI PHY Intel FPGA IP Design Example User Guide.

Related Information
Level Two Title
