11.9.6. Traffic Generator Status

The traffic generator reports its status in two ways: ISSPs and configuration interface.

Status Registers

The traffic generator reports status in two ways:

  • ISSPs
  • Configuration interface

Reading PNF Registers or ISSPs

The Pass Not Fail (PNF) registers show the status for each bit that has been read on the ctrl_amm interface.

pnf[x] = ~(amm_readdata_0[x]^amm_expected_readdata_0[x])

The PNF signal is “sticky”, which means that once a PNF bit is set to 0 due to a read miscompare, it does not return to a value of 1 on any consecutive reads, until the PNF is cleared. The PNF, TG_FAIL_EXPECTED_DATA, and TG_FAIL_READ_DATA registers are normally wider than a single register on the tg_cfg interface. As a result, the bus width is split up across NPNF_reg registers, where:

NPNF_reg = ceil(TG_RDATA_WIDTH / 32)

To determine the address of the Nth register:

TG_PNF[NPNF_reg] = (Symbol Address of TG_PNF) + 4*NPNF_reg

The maximum PNF width is 511 bits, so the bus width is split up across NPNF_ISSP ISSPs:

NPNG_ISSP = ceil(TG_RDATA_WIDTH / 511)

PNF ISSPs have the index in their name, starting with PNF0.

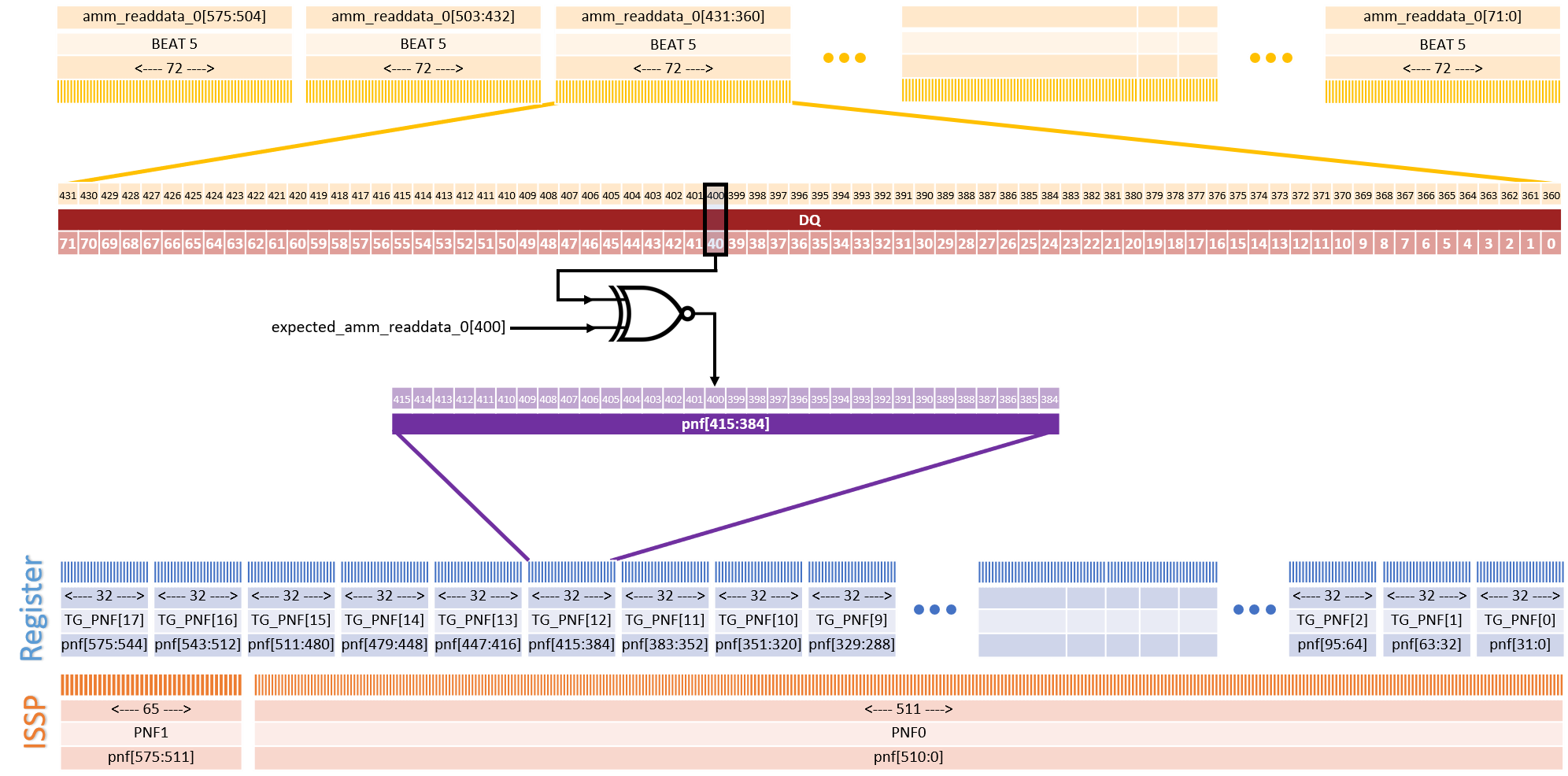

Example:

This example assumes the following conditions:

  • DQ Width: x72 (without ECC enabled)
  • Memory Protocol: DDR4
  • DQ/DQS: 8
  • Rate: Quarter-rate

Due to the memory protocol and rate, TG_DATA_RATE_WIDTH_RATIO = 8.

Therefore TG_RDATA_WIDTH = 72 * 8 = 576. This means that there are 18 TG_PNF registers, and two PNF ISSPs (PNF0, PNF1), as illustrated below:

Clearing Failure Information Between Runs

You can set the TG_CLEAR register to clear failure information between successive runs of the traffic generator.

Configuration Error Codes

The TG_ERROR_REPORT register codes flag when the traffic pattern may be the direct cause for data mismatches. You may still choose to run the traffic pattern, despite errors. This may be useful when not looking for a passing comparison.

The following table outlines the error codes:

Table 166.  Error Codes
Code Value Code Name Code Description
0x1 ERR_MORE_READS_THAN_WRITES More read operations are scheduled than write operations. Data mismatches might occur.
0x2 ERR_BURSTLENGTH_GT_SEQ_ADDR_INCR The Avalon® burst length exceeds the sequential address increment. Data mismatches might occur.
0x4 ERR_ADDR_DIVISIBLE_BY_GT_SEQ_ADDR_INCR The sequential address increment is smaller than the minimum required. Data mismatches might occur.
0x8 ERR_SEQ_ADDR_INCR_NOT_DIVISIBLE The sequential address increment is not divisible by the necessary step. Data mismatches might occur.
0x10 ERR_READ_AND_WRITE_START_ADDRS_DIFFER The sequential address increment is not divisible by the necessary step. Data mismatches might occur.
0x20 ERR_ADDR_MODES_DIFFERENT Read and write settings for address generation modes are different. Data mismatches might occur.
0x40 ERR_REPEATS_SET_TO_ZERO Invalid read or write repeat count. The number of read or write repeats must be at least 1. Data mismatches might occur.
0x80 ERR_BOTH_BURST_AND_REPEAT_MODE_ACTIVE Invalid read or write repeat count. The number of read or write repeats must be at least 1. Data mismatches might occur.
0x100 ERR_BURSTLENGTH_AND_WORD_ADDR_DIVISIBLE_FIELD_0 The width of field 0 must be greater than the number of bits required for burst length plus the number of LSB bits for the smallest possible step. Data mismatches may occur.
0x200 ERR_RELATIVE_FREQ_ZERO The relative frequency of a field is zero. Data mismatches may occur.
Level Two Title
