11.7.4.2.1. Rerunning Calibration

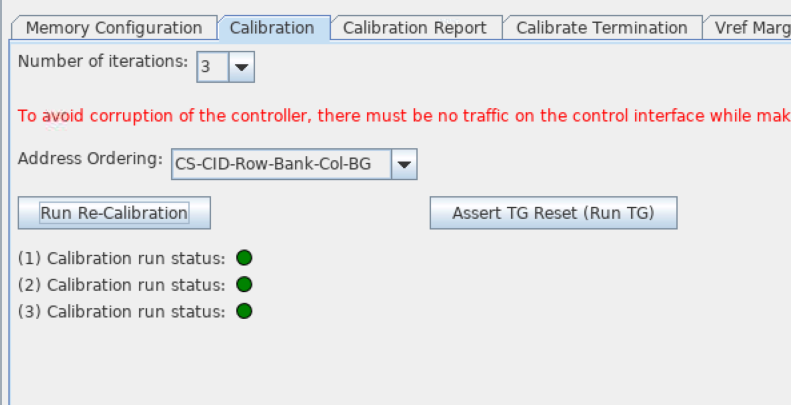

The Calibration tab lets you specify a number of iterations by which to rerun calibration.

To rerun calibration, follow these steps:

  1. Select the desired number of iterations from the Number of iterations pull-down menu.
  2. Click Run Re-Calibration to repeat calibration the specified number of times.

The system reports the Calibration run status for each iteration of calibration. A green dot indicates a pass, while a red dot indicates a calibration failure.
