4.2.4. Diagnostic Parameters for High Bandwidth Memory (HBM2) Interface Intel® FPGA IP

The Diagnostics tab allows you to select traffic options and to enable the efficiency monitor that measures HBM2 controller efficiency during functional simulation.

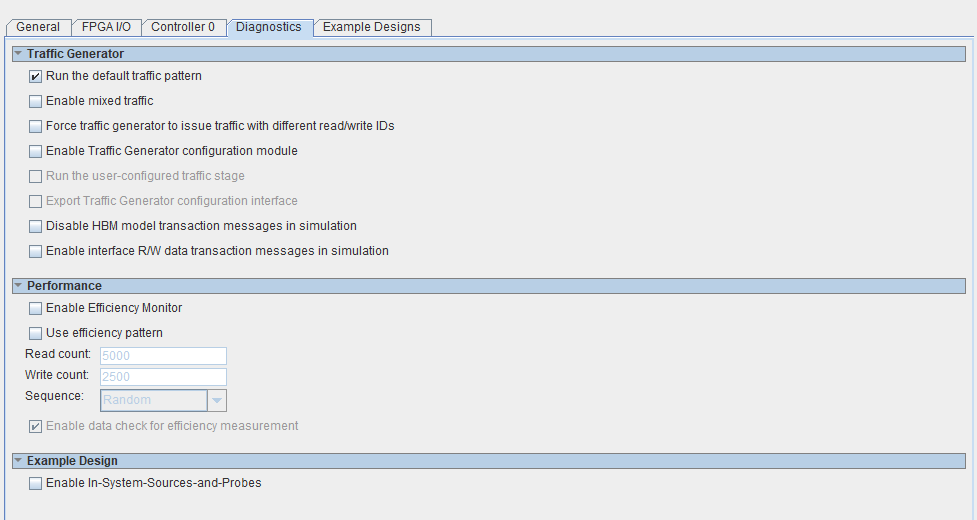

Figure 10. Diagnostics Tab

Table 12.  Group: Diagnostics / Traffic Generator
Display Name Description
Run the default traffic pattern Runs the default traffic pattern after reset. The default traffic pattern consists of multiple stages testing single/block reads and writes using sequential and random addressing. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.
Enable mixed traffic Configures the traffic generator to send out a variety of traffic patterns, including single and block reads/writes, using a mix of sequential and random addressing. If you do not enable this parameter, the traffic generator sends block reads/writes with sequential addressing. This parameter can help you understand the HBM2 interface performance over different traffic patterns. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.
Force traffic generator to issue traffic with different read/write IDs

Forces the traffic generator to issue traffic with different read/write IDs regardless of whether the reorder buffer is on. Using different read/write IDs allows the controller to reorder transactions for higher efficiency, but results in data mismatches if you have disabled the reorder buffer and the user logic does not handle read data returning out-of-order.

When you do enable the reorder buffer, the traffic generator automatically generates transactions with different IDs.

If you do not enable this parameter, the traffic generator does not issue AXI transactions with different read/write IDs, unless you have enabled the reorder buffer. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.

Enable Traffic Generator Configuration Module Enables instantiation of the traffic generator configuration module, which is necessary only if you are creating custom traffic patterns. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.
Run the user-configured traffic stage Runs the user-configured traffic pattern after reset. (You can still reconfigure the traffic generator later.) The traffic generator does not assert a pass or fail status until the Avalon configuration interface configures it and signals it to start. You can perform configuration by connecting to the traffic generator via the EMIF Debug Toolkit or by using custom logic connected to the Avalon-MM configuration slave port on the traffic generator. You can also simulate configuration with the example testbench provided in the altera_hbm_tg_axi_tb.sv file. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.
Export Traffic Generator Configuration Interface Exports an Avalon-MM slave port for configuring the traffic generator. This is necessary only if you are configuring the traffic generator with user-configured traffic. This parameter applies to the AXI user interface only; the Avalon® memory-mapped interface uses the default traffic pattern.
Disable HBM model transaction messages in simulation If enabled, HBM model transaction messages are not displayed in simulation.
Enable AXI R/W data transaction messages in simulation Displays AXI data transaction messages in simulation.
Table 13.  Group: Diagnostics / Performance
Display Name Description
Enable Efficiency Monitor Adds an Efficiency Monitor component to the AXI interface of the memory controller. The Efficiency Monitor gathers and reports statistics on the efficiency of the interface during simulation. The Efficiency Monitor is available only in the AXI user interface flow.
Use efficiency pattern The traffic generator generates a high-efficiency concurrent traffic pattern with features integrated in the design example. This parameter applies to the AXI user interface only.
Read count Defines the read count for the traffic generator. The read and write count should be equal, for the validity check to pass. This parameter applies to the AXI user interface only.
Write count Defines the write count for the traffic generator. The read and write count should be equal, for the validity check to pass. This parameter applies to the AXI user interface only.
Sequence Defines the write and read sequence for the traffic generator, with the selection of Random or Sequential. (For best HBM2 efficiency, select Sequential for this parameter.) This parameter applies to the AXI user interface only.
Enable data check for efficiency measurement Enables a data check for soft traffic generator efficiency measurement. This parameter applies to the AXI user interface only.
Table 14.  Group: Diagnostics / Example Design
Display Name Description
Enable in-System-Source-and-Probes Enables In-System-Sources-and-Probes in the design example for common debug signals such as calibration status or example traffic generator per-bit status. You must enable this parameter if you want to do driver margining.
