3.5.1.1. Find Timing Information

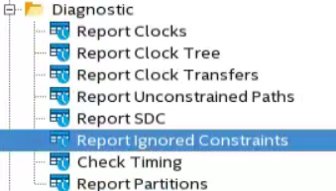

  • To find False or Multi-Cycle Paths, click Report Ignored Constraints in the Timing Analyzer Tasks pane.
    Figure 41. Report Ignored Constraints

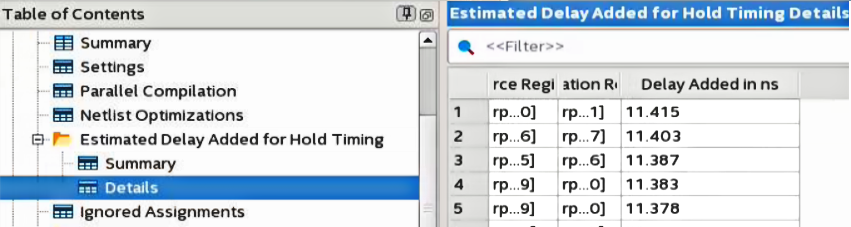

  • To see a list of the 10 paths with highest delay in the design, in the Reports pane find Fitter Summary Report > Estimate Delay Added for Hold Timing > Details.
