2.3.2. Estimating Power Consumption While Creating the FPGA Design

If your FPGA design is partially complete, you can import the EPE file (<revision name> _early_pwr.csv) generated by the Quartus® Prime software to the EPE spreadsheet. After importing the information from the <revision name> _early_pwr.csv into the EPE spreadsheet, you can edit the EPE spreadsheet to reflect the device resource estimates for your final design.

Table 2.  Advantages and Constraints of Power Estimation if your FPGA Design is Partially Complete
Advantage Constraint
  • You can perform power estimation early in the FPGA design cycle.
  • Provides the flexibility to automatically fill in the Early Power Estimator spreadsheet based on the Quartus Prime software compilation results.
  • You can adjust design resources and parameters and see how those changes affect total power consumption.
  • Accuracy depends on your inputs and your estimation of the device resources; where this information may change (during or after your design is complete), your power estimation results may be less accurate.
  • The EPE spreadsheet uses averages and not the actual design implementation details. The Power Analyzer has access to the full design details. For example, the EPE uses values for ALM configuration, while the Power Analyzer specifies an exact configuration for each ALM.

Importing a File

To estimate power consumption with the EPE spreadsheet if your FPGA design is partially complete, you can import a file.

Importing a file saves you time and effort otherwise spent on manually entering information into the EPE. You can also manually change any of the values after importing a file.

Generating the EPE File

To generate the EPE file, follow these steps:

  1. Compile the partial FPGA design in the Quartus Prime software.
  2. On the Project menu, click Generate Early Power Estimator File to generate the <revision name> _early_pwr.csv in the Quartus Prime software.

Importing Data into the EPE Spreadsheet

You must import the EPE file into the EPE spreadsheet before modifying any information in the EPE spreadsheet. Also, you must verify all your information after importing a file.

Importing a file from the Quartus Prime software populates all input values that were specified in the Quartus Prime software. Alternatively, you can import values exported from an earlier version of the EPE spreadsheet.

Input values imported into the EPE spreadsheet are the values taken from the Quartus Prime software as per the design, or the values that were entered into an earlier version of the EPE spreadsheet. You can manually edit the values in the EPE spreadsheet to suit your changing design requirements.

To import data into the EPE spreadsheet, follow these steps:

  1. In the EPE spreadsheet, Click Import CSV.
  2. Browse to a EPE file generated from the Quartus Prime software or an earlier version of the EPE spreadsheet and click Open. The file has a name of <revision name> _early_pwr.csv.
  3. After the file is imported, the mouse cursor changes from busy to normal. If there are any warnings during the importation, the EPE produces the EPE Import Warnings dialog box. Analyze the warnings carefully to ensure that they are expected. If any of the warnings are unexpected, you must manually modify the corresponding fields in the EPE after the importation is completed. You can copy all warning messages to the clipboard for future reference by clicking Copy to Clipboard. Click OK to dismiss the EPE Import Warnings dialog box.

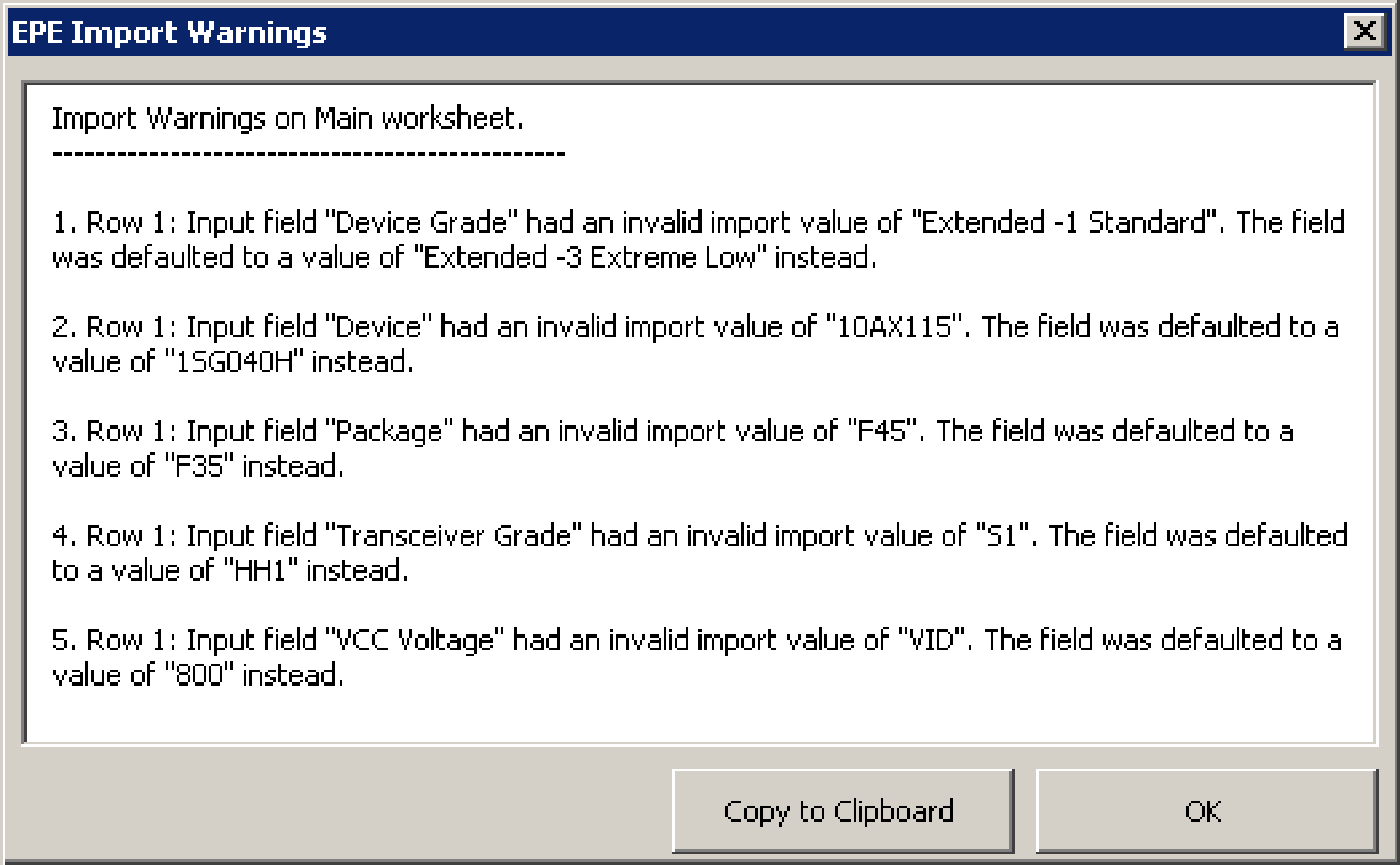

The following figure shows example warnings that may occur when importing a design from the EPE spreadsheet for Stratix V devices. The first error message indicates that the board model specified in the earlier version of the EPE spreadsheet is not supported, and that the value was set to Typical instead. The second and third error messages indicate that device ordering codes have changed between the two families, so the previous values for Device and Package input fields could not be imported directly, but were set to their default values instead. Finally, the last two messages indicate that some required information was not found in the imported file, and that corresponding fields were set to their default values. This last message could indicate that the information was not present in the earlier version of the EPE spreadsheet, or that the import file is corrupted.

Figure 1. Example Warning Messages During Importation
