6.2.3. PCI Express and PCI Capabilities Parameters

For each core (PCIe0/PCIe1/PCIe2/PCIe3), the PCI Express / PCI Capabilities tab contains separate tabs for the device, PRS (Endpoint mode), MSI (Endpoint mode), ACS capabilities (Root Port mode), slot (Root Port mode), MSI-X, and legacy interrupt pin register parameters.

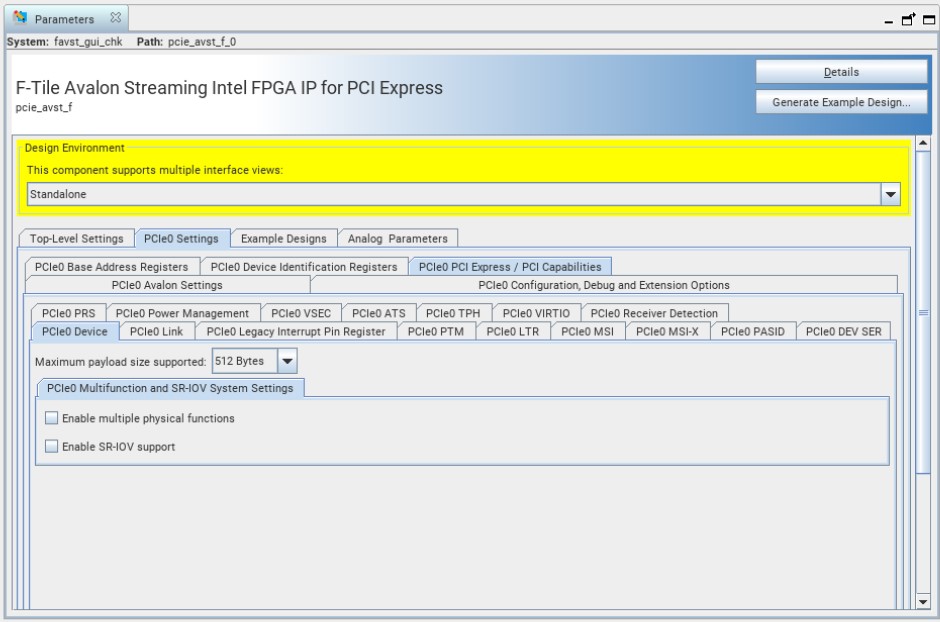

Figure 65. PCI Express / PCI Capabilities Parameters

Section Content
Device Capabilities
Link Capabilities
Legacy Interrupt Pin Register
MSI Capabilities
MSI-X Capabilities
Slot Capabilities
Latency Tolerance Reporting (LTR)
Process Address Space ID (PASID)
Device Serial Number Capability
Page Request Service (PRS)
Access Control Service (ACS) Capabilities
Power Management
Vendor Specific Extended Capability (VSEC) Registers
Precision Time Measurement (PTM)
Address Translation Services (ATS)
TLP Processing Hints (TPH)
VirtIO Parameters
Receiver Detection
