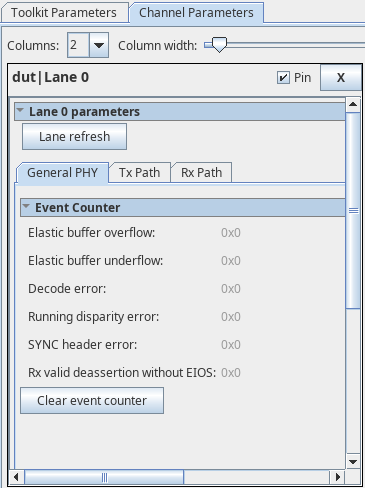

8.2.4.3.1. General PHY

This tab shows the reset status of the PHY.

Table 122.  General PHY Settings
  Parameters Values Descriptions
Event Counter 5 to clear the counter values. Elastic buffer overflow Hex value Indicates elastic buffer overflow errors.
Elastic buffer underflow Hex value Indicates elastic buffer underflow errors.
Decode error Hex value Indicates decode errors.
Running disparity error Hex value Indicates running disparity errors.
SYNC header error Hex value Indicates SYNC header errors.
RX valid deassertion without EIEOS Hex value Indicates errors when RX valid deassertion occurs without EIEOS.
5 Use Clear event counter
