E.6. View the Results

The Avery BFM includes a memory transaction test that runs a sequence of 10 memory write/read combinations, where the test writes to a memory location and immediately reads back from the same location. For details on the test, refer to mem_tr_test class in apci_top_rc.sv. When the test passes, the following is displayed:

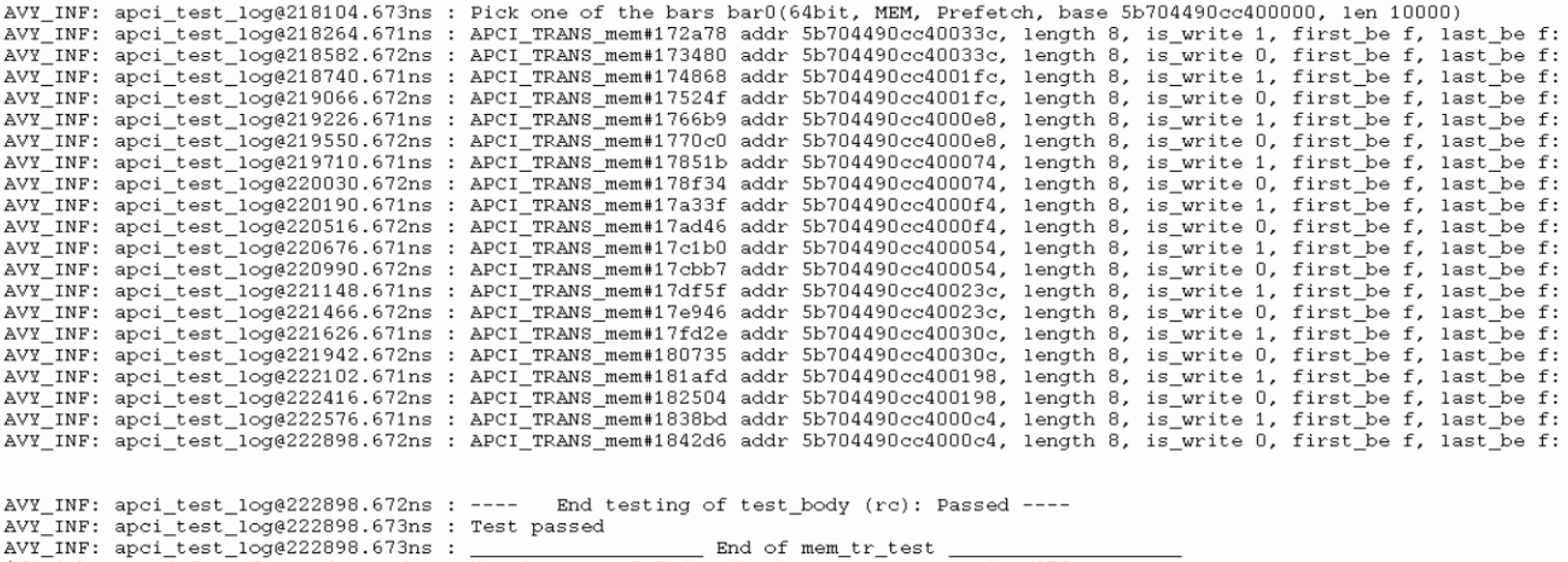

Figure 101. Simulation Results

In the simulation results above, is_write = 1 denotes a memory write, and is_write = 0 denotes a memory read.

When you want to view the VPD waveforms, invoke the DVE GUI:

% dve

In the DVE GUI, click File -> Open Database, and select apci_top.vpd.

To add waveforms, select a component (e.g. dut) in the Hierarchy pane, select signals in the Variable pane, and then add them to the Wave pane.

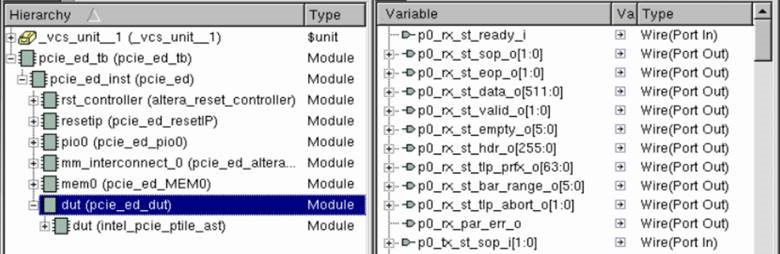

Figure 102. Sample DVE GUI Hierarchy and Variables Screen

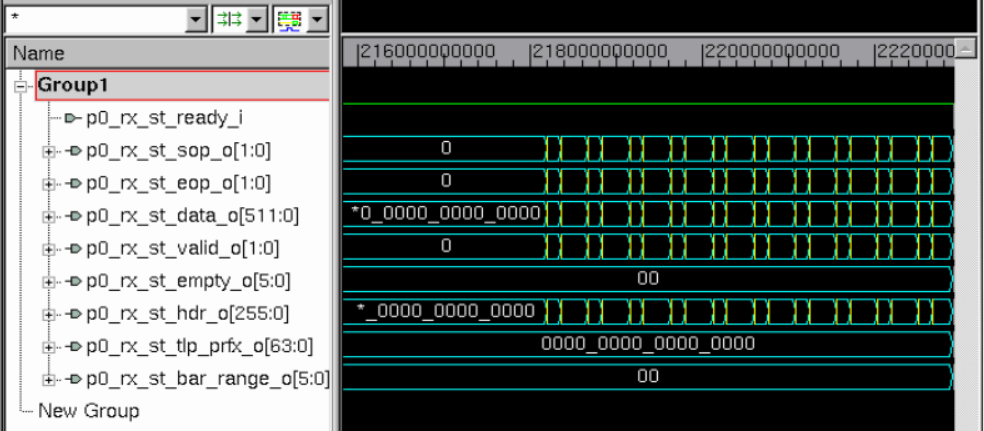

Figure 103. Sample Waveforms Screen

In addition, the Avery BFM enables dumping traffic into three text files to facilitate the debugging of the transaction layer, data link layer, and physical layer functions:

In apci_top_rc.sv:

initial begin

rc = new("rc", null, APCI_DEVICE_rc, 1);

…

rc.port_set_tracker(-1, "tl" , 1);

rc.port_set_tracker(-1, "dll", 1);

rc.port_set_tracker(-1, "phy", 1);

…

end

The three tracker files that the Avery BFM generates are:
  • tracker_tl_rc.txt (transaction layer TLP dump)
  • tracker_dll_rc.txt (data link layer DLLP dump)
  • tracker_phy_rc.txt (physical layer Ordered Set dump)

Here is an example of TLP transactions captured in tracker_tl_rc.txt:

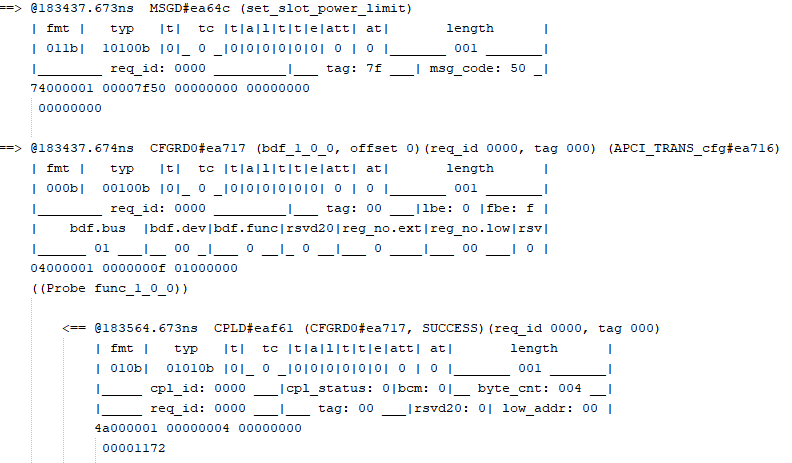

Figure 104. Excerpt from tracker_tl_rc.txt
