GPU Pinning
Short Description
Use this feature to distribute Intel GPU devices between MPI ranks.
To enable this feature, set I_MPI_OFFLOAD_TOPOLIB=level_zero. This feature requires that the Level-Zero* library be installed on the nodes. The device pinning information is printed out in the Intel MPI debug output at I_MPI_DEBUG=3.
Default settings:
I_MPI_OFFLOAD_CELL=tile
I_MPI_OFFLOAD_DOMAIN_SIZE=-1
I_MPI_OFFLOAD_DEVICES=all
By default, all available resources are distributed between MPI ranks as equally as possible given the position of the ranks; that is, the distribution of resources takes into account on which NUMA node the rank and the resource are located. Ideally, the rank will have resources only on the same NUMA node on which the rank is located.
Examples
All examples below represent a machine configuration with two NUMA nodes and two GPUs with two tiles.

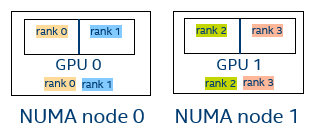

Figure 1. Four MPI Ranks
Debug output I_MPI_DEBUG=3:
[0] MPI startup(): ===== GPU pinning on host1 =====
[0] MPI startup(): Rank Pin tile
[0] MPI startup(): 0 {0}
[0] MPI startup(): 1 {1}
[0] MPI startup(): 2 {2}
[0] MPI startup(): 3 {3}

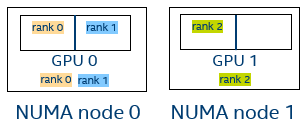

Figure 2. Three MPI Ranks
Debug output I_MPI_DEBUG=3:
[0] MPI startup(): ===== GPU pinning on host1 =====
[0] MPI startup(): Rank Pin tile
[0] MPI startup(): 0 {0}
[0] MPI startup(): 1 {1}
[0] MPI startup(): 2 {2,3}
I_MPI_OFFLOAD_TOPOLIB
Set the interface for GPU topology recognition.
Syntax
I_MPI_OFFLOAD_TOPOLIB=<arg>
Arguments
<arg> String parameter.
level_zero Use Level-Zero library for GPU topology recognition.
none Disable GPU recognition and GPU pinning.
Description
Set this environment variable to define the interface for GPU topology recognition. Setting this variable enables the GPU Pinning feature.
I_MPI_OFFLOAD_CELL
Set this variable to define the base unit: tile (subdevice) or device (GPU).
Syntax
I_MPI_OFFLOAD_CELL=<cell>
Arguments
<cell> Specify the base unit.
tile One tile (subdevice). Default value.
device Whole device (GPU) with all subdevices
Description
Set this variable to define the base unit. This variable may affect other GPU pinning variables.
Example

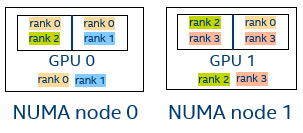

Figure 3. Four MPI ranks, I_MPI_OFFLOAD_CELL=device
I_MPI_OFFLOAD_DOMAIN_SIZE
Control the number of base units per MPI rank.
Syntax
I_MPI_OFFLOAD_DOMAIN_SIZE=<value>
Arguments
<value> Integer number.
-1 Auto. Default value. Each MPI rank may have a different domain size to use all available resources.
> 0 Custom domain size.
Description
Set this variable to define how many base units will be pinned to the MPI rank. I_MPI_OFFLOAD_CELL variable defines the base unit: tile or device.
Examples
Figure 4. Three MPI ranks, I_MPI_OFFLOAD_DOMAIN_SIZE=1
I_MPI_OFFLOAD_DEVICES
Define a list of available devices.
Syntax
I_MPI_OFFLOAD_DEVICES=<devicelist>
Arguments
<devicelist> A comma-separated list of available devices.
all All devices are available. Default value.
<l> Device with logical number <l>.
<l>-<m> Range of devices with logical numbers from <l> to <m>.
<k>,<l>-<> Device <k> and devices from <l> to <m>.
Description
Set this variable to define the available devices. This variable also gives you the ability to exclude devices.
Example
Figure 5. Four MPI ranks, I_MPI_OFFLOAD_DEVICES=0
I_MPI_OFFLOAD_CELL_LIST
Define a list of base units to pin for each MPI rank.
Syntax
I_MPI_OFFLOAD_DEVICE_LIST=<base_units_list>
Arguments
<base_units_list> A comma-separated list of base units. The process with the i-th rank is pinned to the i-th base unit in the list.
<l> Base unit with logical number <l>.
<l>-<m> Range of base units with logical numbers from <l> to <m>.
<k>,<l>-<m> Base unit <k> and base units from <l> to <m>.
Description
Set this variable to define the list of base units to pin for each MPI rank. The process with the i-th rank is pinned to the i-th base unit in the list.
I_MPI_OFFLOAD_CELL variable defines the base unit: tile or device.
I_MPI_OFFLOAD_DEVICE_LIST variable has less priority than the I_MPI_OFFLOAD_DOMAIN variable.
Example
Figure 6. Four MPI ranks, I_MPI_OFFLOAD_DEVICE_LIST=3,2,0,1
I_MPI_OFFLOAD_DOMAIN
Define domains through the comma separated list of hexadecimal numbers for each MPI rank.
Syntax
I_MPI_OFFLOAD_DOMAIN=<masklist>
Arguments
<masklist> A comma-separated list of hexadecimal numbers.
[m1,...,mn ] For <masklist>, each mi is a hexadecimal bit mask defining an individual domain.
The following rule is used: the i-th base unit is included into the domain if the corresponding bit in mi value is set to 1.
Description
Set this variable to define the list of hexadecimal bit masks. For the i-th bit mask, if the j-th bit set to 1, then the j-th base unit will be pinned to the i-th MPI rank.
I_MPI_OFFLOAD_CELL variable defines the base unit: tile or device.
I_MPI_OFFLOAD_DOMAIN variable has higher priority than the I_MPI_OFFLOAD_DEVICE_LIST.
Example
Figure 7. Four MPI ranks, I_MPI_OFFLOAD_DOMAIN=[B,2,5,C]. Parsed bit masks: [1101,0100,1010,0011]
