Skylake U/Y

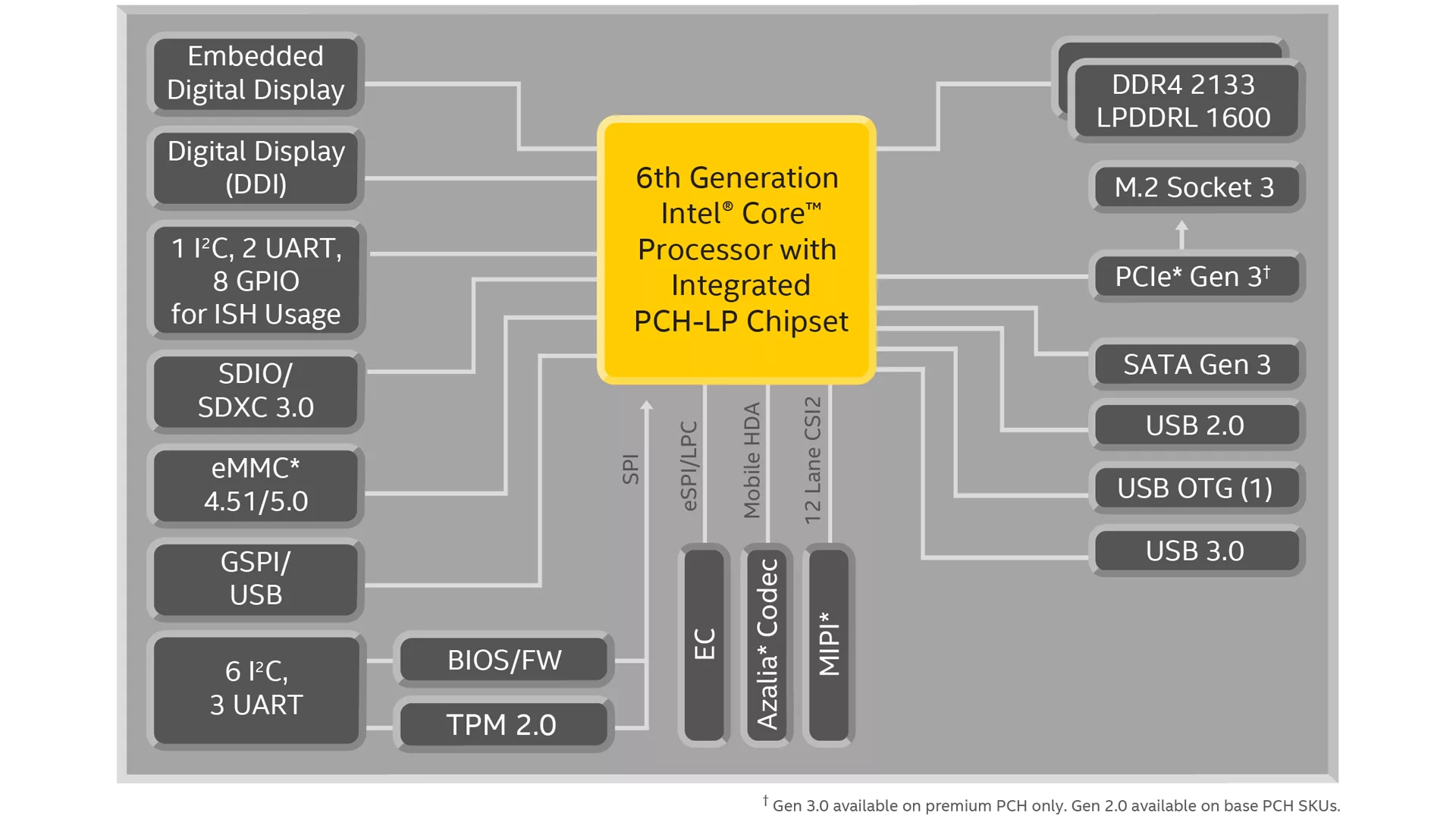

The 6th generation Intel® Core™ processor family, formerly Skylake U-Series (Mobile) features ultra-low-power, 64-bit, multi-core processors built on Intel's latest 14 nm technology. Designed for small form-factor applications, this multi-chip package (MCP) integrates a low-power CPU and platform controller hub (PCH) onto a common package substrate. The 6th generation Intel Core processor family offers dramatically higher CPU and graphics performances a broad range of power and features scaling the entire Intel product line, and new advanced features that boost edge-to-cloud performance for Internet of Things (IoT) designs in a wide variety of markets. These processors run at 15W thermal design power (TDP) and are ideal for small, energy-efficient, form-factor designs including digital signage, point-of-sale terminals, and medical tablets.
Key features on Skylake U/Y
- Stunning visual performance
- Power-efficient performance
- Broad design range
- Advanced security and manageability
Processors specifications
| Processor name | Cache | Clock speed | Power | Memory | Ordering code |
|---|---|---|---|---|---|
| Intel® Core™ i7-6600U processor | 4 MB |
3.4 GHz | 15 W | DDR4: 1866/2133 | FJ8066201924950 |
| Intel® Core™ i5-6300U processor | 3 MB |
2.9 GHz | 16 W | DDR4: 1866/2133 | FJ8066201924931 |
| Intel® Core™ i3-6100U processor | 3 MB |
2.3 GHz | 17 W | DDR4: 1866/2133 | FJ8066201931104 |
| Intel® Celeron® processor 3955U | 2 MB | 2 GHz | 15 W | DDR4-1866/2133, LPDDR3-1600/1866 | FJ8066201931006 |
