Rangeley

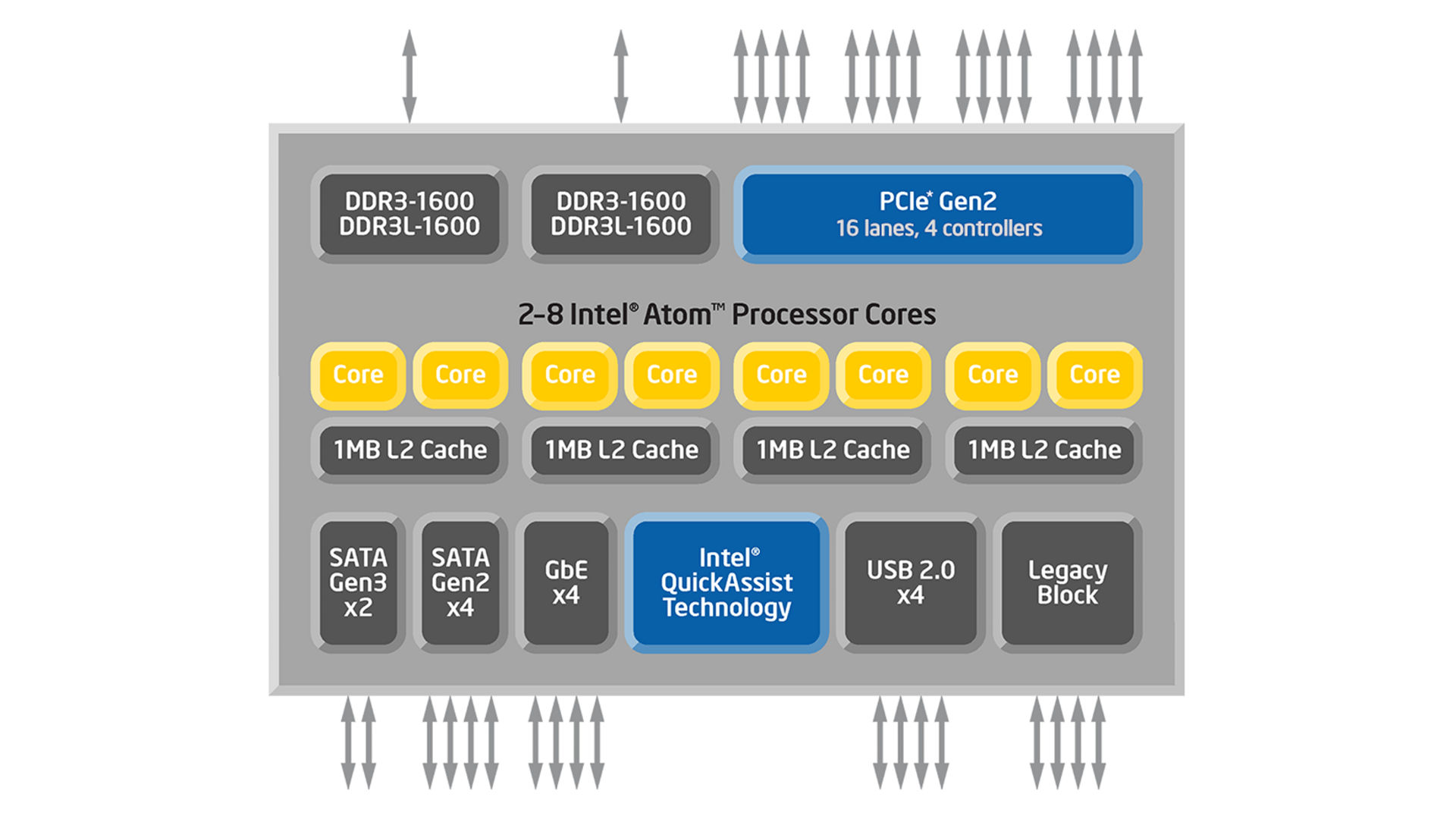

Based on the low-power Silvermont microarchitecture, the Intel Atom® C2000 processor family extends the scalability of Intel® architecture into smaller footprints, dense communications, and intelligent systems applications. This product family offers a range of multi-core processing capabilities (from two cores to eight cores) and features high levels of I/O and acceleration integration, resulting in a scalable, single-chip system-on-chip (SoC). Ideal for entry to midrange branch office routers, security appliances, network access, communications servers, control plane processing, and storage.
Key features on Rangeley
Based on the 22-nanometer process technology with 3D tri-gate transistors, the product family provides optimal performance per watt, addressing the needs of thermally constrained solutions, such as entry to midrange branch office routers, security appliances, network access, communications servers, small cells, control plane processing, and storage.
Pin-to-pin compatible, this product family allows developers to scale platforms seamlessly with design reuse. A range of thermal design power (TDP) from 7 to 20 watts supports energy-efficient network designs, including fanless embedded designs.
When paired with the Data Plane Development Kit (DPDK), this platform improves packet processing speeds to handle increased network traffic data rates and associated control and signaling infrastructure requirements.
Processor specifications
| Processor Number | Ordering Code | Cache | Clock Speed | Memory Types | |
|---|---|---|---|---|---|
| Intel® Atom™ Processor C2508 (2M Cache, 1.25 GHz) | FH8065501516768 | 2.0 MB | 1.25 GHz | 9.5 | DDR3 1333 |
| Intel® Atom™ Processor C2308 (1M Cache, 1.25 GHz) | FH8065501516754 | 1.0 MB | 1.25 GHz | 6 | DDR3 1333 |
| Intel® Atom™ Processor C2338 (1M Cache, 1.70 GHz) | FH8065501516761 | 1.0 MB | 1.70 GHz | 7 | DDR3/DDR3L 1333 |
| Intel® Atom™ Processor C2358 (1M Cache, 1.70 GHz) | FH8065501516711 | 1.0 MB | 1.70 GHz | 7 | DDR3/DDR3L 1333 |
| Intel® Atom™ Processor C2518 (2M Cache, 1.70 GHz) | FH8065501516710 | 2.0 MB | 1.70 GHz | 13 | DDR3/DDR3L 1333 |
| Intel® Atom™ Processor C2538 (2M Cache, 2.40 GHz) | FH8065501516762 | 2.0 MB | 2.40 GHz | 15 | DDR3/DDR3L 1600 |
| Intel® Atom™ Processor C2558 (2M Cache, 2.40 GHz) | FH8065501516709 | 2.0 MB | 2.40 GHz | 15 | DDR3/DDR3L 1600 |
| Intel® Atom™ Processor C2718 (4M Cache, 2.00 GHz) | FH8065501516708 | 4.0 MB | 2.00 GHz | 18 | DDR3/DDR3L 1333 |
| Intel® Atom™ Processor C2738 (4M Cache, 2.40 GHz) | FH8065501516763 | 4.0 MB | 2.40 GHz | 20 | DDR3/DDR3L 1600 |
| Intel® Atom™ Processor C2758 (4M Cache, 2.40 GHz) | FH8065501516702 | 4.0 MB | 2.40 GHz | 20 | DDR3/DDR3L 1600 |
