Purley
Intel® Xeon® Scalable Processors with Intel® C620 Series Chipsets, formerly Purley (Skylake-SP and Lewisburg), deliver new levels of consistent and breakthrough performance. The platform is based on cutting-edge technology and provides compelling benefits across a broad variety of usage models including big data, artificial intelligence, high-performance computing, enterprise-class IT, cloud, storage, communication, and Internet of Things (IoT). Top enhancements include performance for a wide range of workloads with 1.5X memory bandwidth, integrated network/fabric, and optional integrated accelerators.
Key features on Purley
Pervasive, breakthrough performance
The new microarchitecture provides increased per-core and socket-level performance.
Accelerate compute-intensive workloads
Intel® AVX-512 can accelerate performance for workloads such as video and image analytics, cryptography, and signal processing.
Integrated Intel® Ethernet with iWARP RDMA
Speeds of up to 4x10GbE with iWARP RDMA provides low-latency, high-throughput data communication integrated in the chipset.
Integrated Intel® QuickAssist Technology (Intel® QAT)
Data compression and cryptography acceleration, frees the host processor, and enhances data transport and protection across server, storage, network, and VM migration. Integrated in the chipset. ‡
Protecting the future of data
15-year product availability and 10-year use-case reliability helps protect your investment. ‡
Topline specifications
- Up to 28 CPU cores
- Up to 3.6 GHz non-AVX base CPU frequency

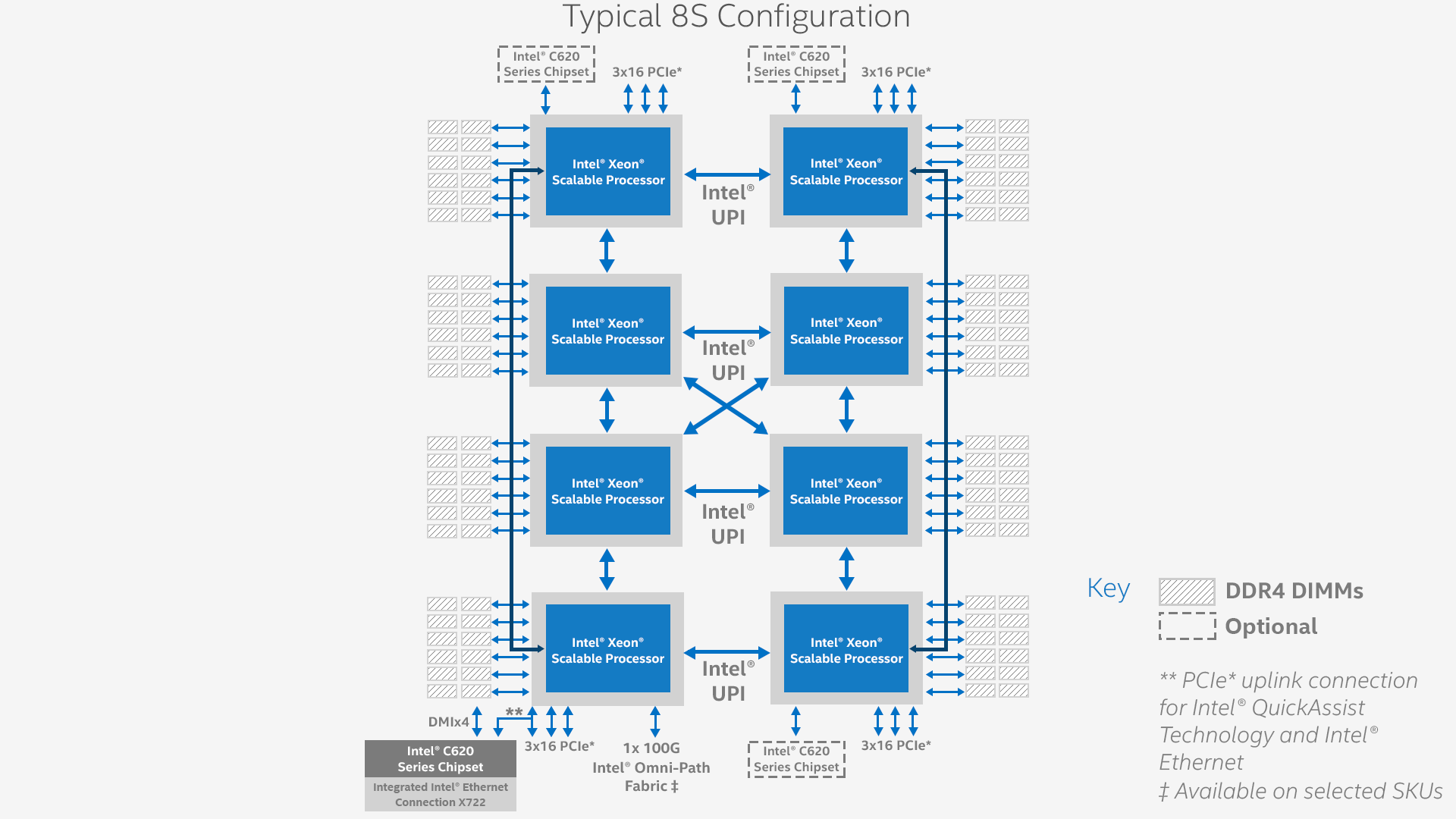

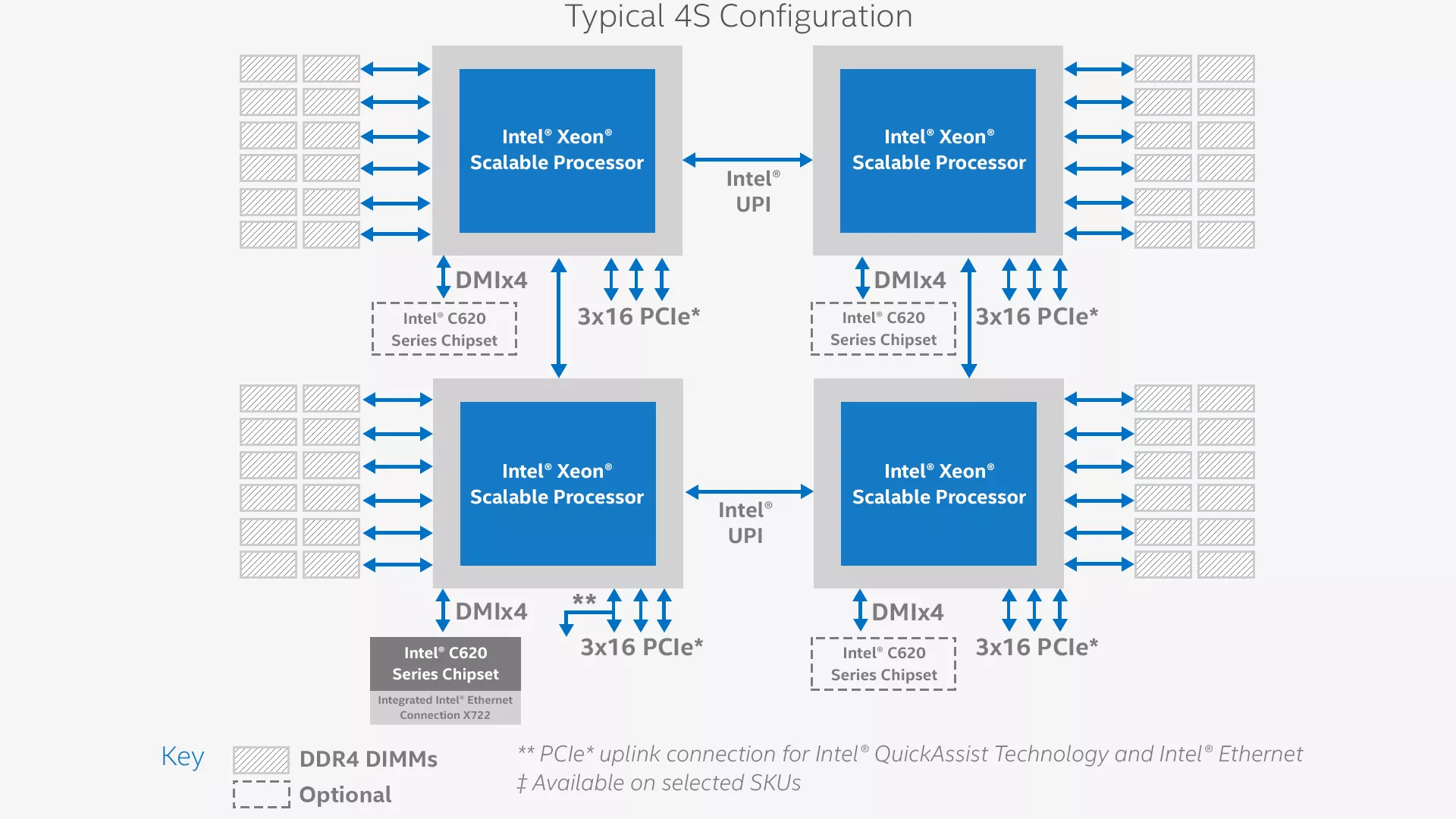

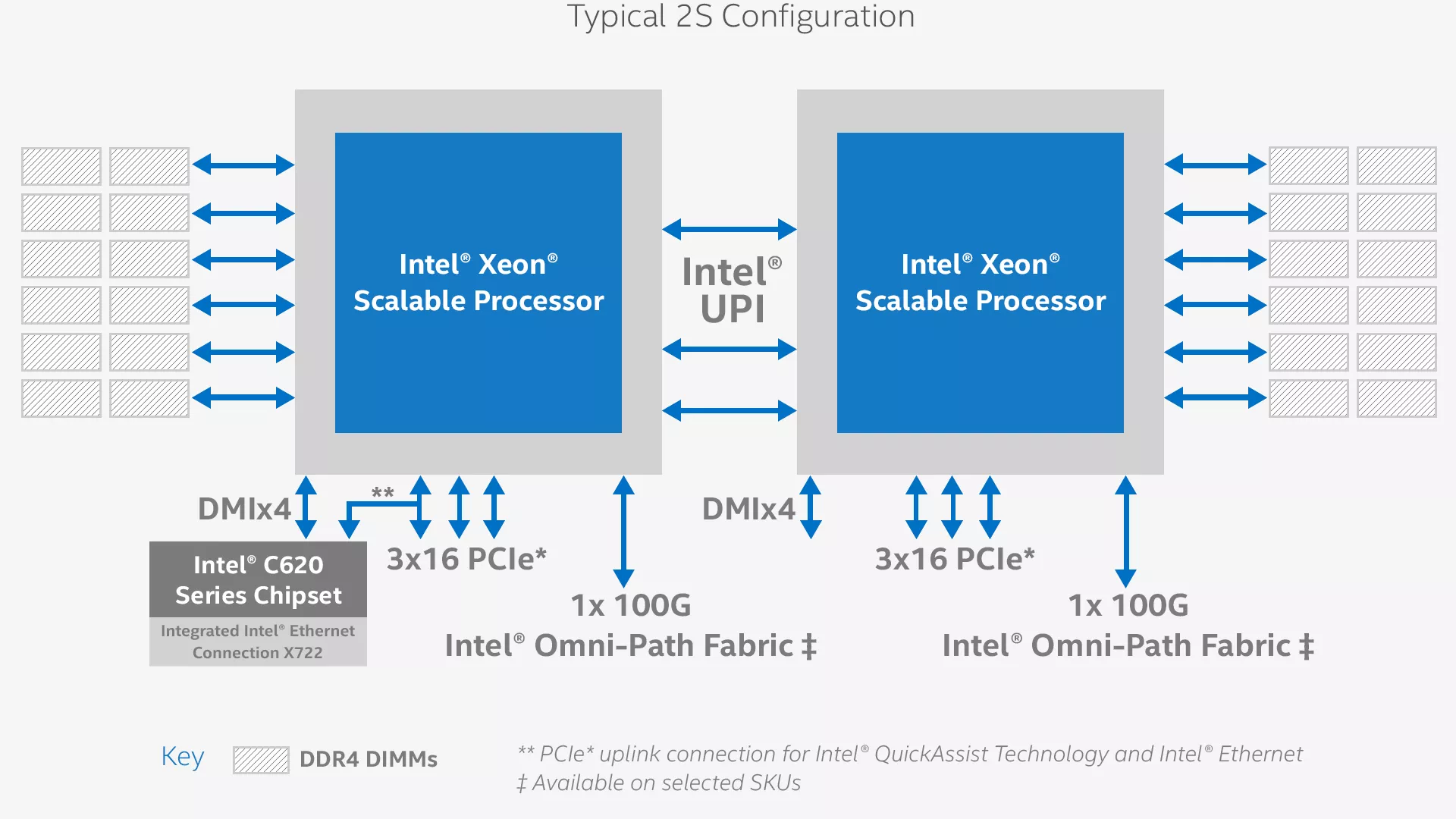

- Multi-socket support (2, 4, 8 CPU)
- Up to 3 UPI channels per CPU
- 6 channels DDR4 per CPU with 2133–2666 MHz DDR4
- 768 GB to 1.5 TB memory capacity per CPU
- Integrated Intel® Ethernet Connection X722
- 48 lanes of PCIe 3.0 per CPU
- Up to 14 SATA3 and 10 USB3
What you can do with Purley
Healthcare
Make quicker and more intelligent medical decisions by taking advantage of the advanced machine capabilities, better identifying image anomalies, resulting in quicker diagnosis and better treatment
Industrial & manufacturing
Modernize manufacturing control systems with improved on-premise data management capabilities, increased system reliability, and application extensibility
Smart cities
Achieve faster and better insights for smart cities by accelerating video monitoring, object identification and rapidly transferring large files across the city network for better traffic management
Autonomous systems
Integrated and enhanced I/O reduces latency and increases bandwidth for compute, network and storage needs, easily processing the dynamic data demands of connected and autonomous systems
Enterprise data centers
Harness the platform’s scalability, efficiency and security deliver competitive services, scale workloads, and respond to shifting market opportunities fast
Communications service providers
Advanced compute core designed into a broad portfolio of balanced platforms delivering powerful performance and scalability for cloud-optimized and 5G-capable communications networks
Cloud service providers
The world’s most advanced compute core which features a new microarchitecture optimized to accelerate a wide range of cloud workloads
High Performance Computing (HPC)
The world’s most advanced compute core designed into a broad portfolio of balanced platforms to deliver powerful performance, maximum scalability, and energy efficiency for diverse high performance computing (HPC) workloads
Platform components for Purley
SKUs optimized for highest per-core performance
| Processor | Cores | Base non-AVX Speed (GHz) |
TDP (W) | IoT options available |
Ordering code |
|---|---|---|---|---|---|
| Intel® Xeon® Platinum 8180 Processor | 28 | 2.5 | 205 | - | CD8067303314400 |
| Intel® Xeon® Platinum 8168 Processor | 24 | 2.7 | 205 | - | CD8067303327701 |
| Intel® Xeon® Platinum 8158 Processor | 12 | 3 | 150 | - | CD8067303406500 |
| Intel® Xeon® Platinum 8156 Processor | 4 | 3.6 | 105 | - | CD8067303368800 |
| Intel® Xeon® Gold 6148 Processor | 20 | 2.4 | 150 | - | CD8067303406200 |
| Intel® Xeon® Gold 6154 Processor | 18 | 3 | 200 | - | CD8067303316400 |
| Intel® Xeon® Gold 6150 Processor | 18 | 2.7 | 165 | - | CD8067303328000 |
| Intel® Xeon® Gold 6142 Processor | 16 | 2.6 | 150 | - | CD8067303405400 |
| Intel® Xeon® Gold 6132 Processor | 14 | 2.66 | 140 | - | CD8067303592500 |
| Intel® Xeon® Gold 6146 Processor | 12 | 3.2 | 165 | - | - |
| Intel® Xeon® Gold 6136 Processor | 12 | 3 | 150 | - | CD8067303405800 |
| Intel® Xeon® Gold 6126 Processor | 12 | 2.6 | 125 | Y | CD8067303405900 |
| Intel® Xeon® Gold 6144 Processor | 8 | 3.5 | 150 | - | - |
| Intel® Xeon® Gold 6134 Processor | 8 | 3.2 | 130 | - | CD8067303330302 |
| Intel® Xeon® Gold 6128 Processor | 6 | 3.4 | 115 | - | CD8067303592600 |
| Intel® Xeon® Gold 5122 Processor | 4 | 3.6 | 105 | - | CD8067303330702 |
SKUs optimized for balanced energy efficient performance per watt
SKUs with extended life (10-year use) and NEBS-friendly thermal specification
| Processor | Cores | Base Non-AVX Speed (GHz) |
TDP (W) | IoT Options Available |
Ordering Code |
|---|---|---|---|---|---|
| Intel® Xeon® Platinum 8160T Processor | 24 | 2.1 | 150 | - | CD8067303592800 |
| Intel® Xeon® Gold 6138T Processor | 20 | 2 | 125 | - | CD8067303592900 |
| Intel® Xeon® Gold 6130T Processor | 16 | 2.1 | 125 | Y | CD8067303593000 |
| Intel® Xeon® Gold 6126T Processor | 12 | 2.6 | 125 | Y | CD8067303593100 |
| Intel® Xeon® Gold 5120T Processor | 14 | 2.2 | 105 | Y | CD8067303535700 |
| Intel® Xeon® Gold 5119T Processor | 14 | 1.9 | 85 | Y | - |
| Intel® Xeon® Silver 4116TProcessor | 12 | 2.1 | 85 | Y | - |
| Intel® Xeon® Silver 4114TProcessor | 10 | 2.2 | 85 | Y | - |
| Intel® Xeon® Silver 4109T Processor | 8 | 2 | 70 | Y | CD8067303562200 |
SKUs with integrated Intel® Omni-Path Architecture (Intel® OPA)
| Processor | Cores | Base Non-AVX Speed (GHz) |
TDP (W) | Ordering Code |
|---|---|---|---|---|
| Intel® Xeon® Platinum 8176F Processor | 28 | 2.1 | 173 | - |
| Intel® Xeon® Platinum 8160F Processor | 24 | 2.1 | 160 | CD8067303593600 |
| Intel® Xeon® Gold 6148F Processor | 20 | 2.4 | 160 | - |
| Intel® Xeon® Gold 6142F Processor | 16 | 2.6 | 160 | CD8067303593700 |
| Intel® Xeon® Gold 6138F Processor | 20 | 2 | 135 | - |
| Intel® Xeon® Gold 6130F Processor | 16 | 2.1 | 135 | CD8067303593300 |
| Intel® Xeon® Gold 6126F Processor | 12 | 2.6 | 135 | CD8067303593400 |
| Chipset | 10Gb/1Gb ethernet ports |
TDP (W) | PCIe* Uplink | Intel® QuickAssist Technology |
IoT options available |
Ordering code |
|---|---|---|---|---|---|---|
| Intel® C629 Chipset | 4/4 | 28.6 | X16 | Yes | - | EY82C629 |
| Intel® C628 Chipset | 4/4 | 26.3 | x16 | Yes | - | EY82C628 |
| Intel® C627 Chipset | 4/4 | 28.6 | x16 | Yes | - | EY82C627 |
| Intel® C626 Chipset | 4/4 | 23 | x16 | Yes | - | EY82C626 |
| Intel® C625 Chipset | 4/4 | 21 | x16 | Yes | - | EY82C625 |
| Intel® C624 Chipset | 4/4 | 19 | x16 | - | Yes | EY82C624 |
| Intel® C622 Chipset | 2/4 | 17 | x8 | - | Yes | EY82C622 |
| Intel® C621 Chipset | 0/4 | 15 | x1 | - | Yes | EY82C621 |
OS type |
Operating system1 (Targeted for Support) | Support2 | Distribution | BIOS |
|---|---|---|---|---|
| Linux | Red Hat* Enterprise Linux 7.2, 7.3 | Red Hat | ||
| SUSE* Linux Enterprise Server 11 SP4,12 SP2 | SUSE, Open Source | SUSE | ||
| Ubuntu* 15.10, 16.04 LTS | Canonical, Open Source | Canonical | ||
| Yocto* Linux | Intel, Open Source | Yocto Project* | ||
| CentOS* 6.8, 7.3, FreeBSD | Open Source Community | American Megatrends Inc Insyde Software Phoenix Technologies BYOSOFT |
||
| Windows* | Microsoft Windows* Server 2022, Server 2016 (including Nano Server), Server 2012 R2 | Intel, Microsoft | Microsoft | |
Product and Performance Information
This is the OS list that is tested internally and does NOT reflect the OS vendor support for these exact release versions. Please contact respective OS vendor(s) for the release version numbers and support. Several software patches will be upstreamed and will be picked up over time. These will be required to enhance platform support.
Intel only provides support for our tools, patches and utilities on the OS. Actual OS support should come from the OS Vendor.
