Kaby Lake U/Y

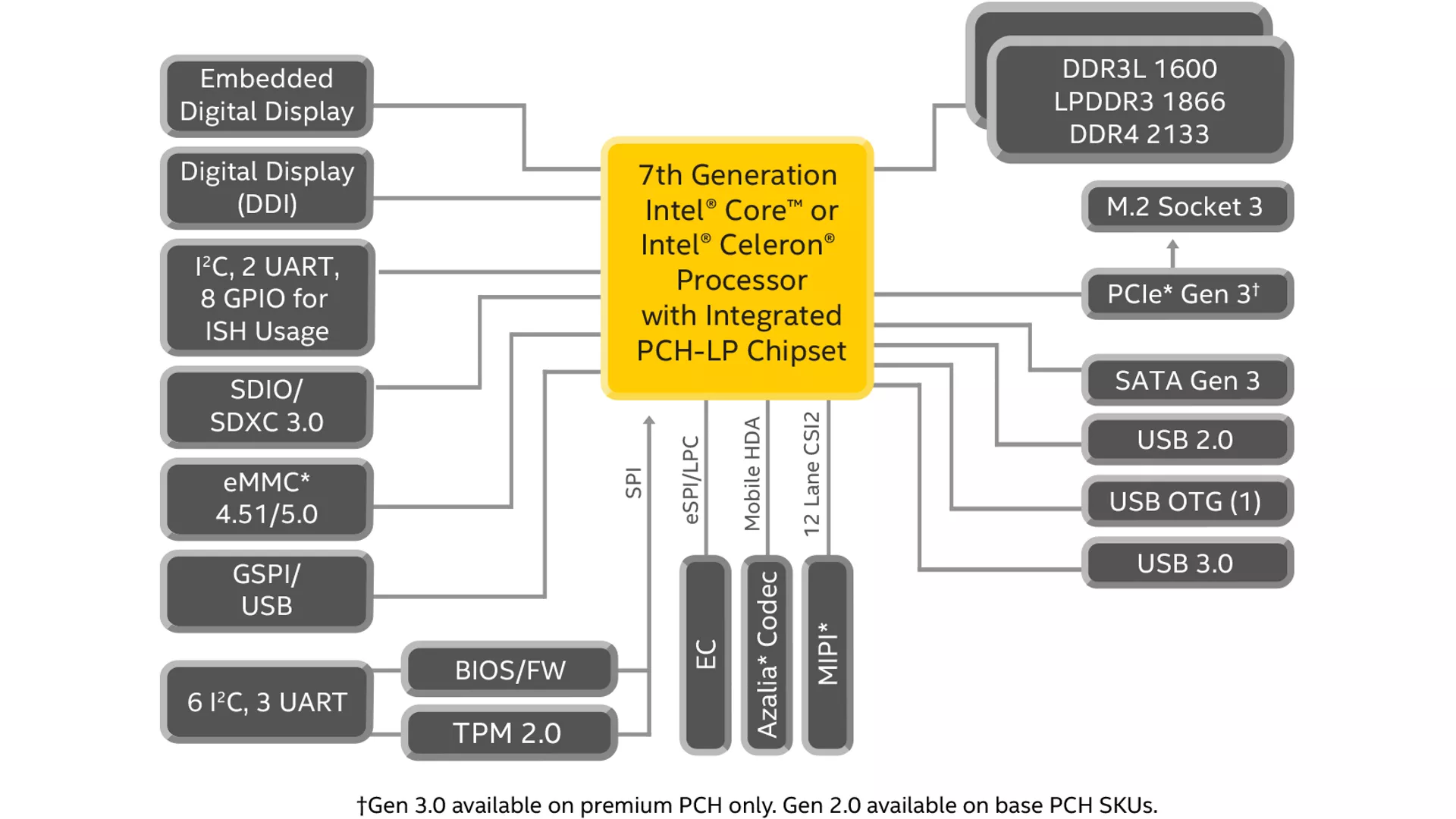

The 7th generation Intel® Core™ and Intel® Celeron® processor families feature ultra-low-power, 64-bit multi-core processors built on Intel’s optimized 14 nm technology. These processors offer even greater CPU and graphics performances as compared to the previous generation. The U-series of processors offer thermal design power (TDP) options of 15W with the flexibility of 25W cTDP up and 8.5W cTDP down, for an exceptional balance of power and performance. Designed for small form-factor applications, this multi-chip package (MCP) integrates a low-power CPU and platform controller hub (PCH) onto a common package substrate. They are ideal for small, energy-efficient designs including digital signage, point-of-sale terminals, and medical tablets.
Topline specifications
- Single-digit (1) CPU and graphics performance gains
- Improved power efficiency
- Quad- and dual-core options
- Reusability of existing IP and board designs
- Advanced security and manageability
- Extended product supply and IoT use conditions
Processors specifications
Processor Name | Ordering code | Cache | Clock speed | Power | Memory |
---|---|---|---|---|---|
Intel® Core™ i7-7600U Processor | FJ8067702739628 | 4M | 2.8 GHz | 15W | DDR3L-1600, LPDDR3-1866, DDR4-2133 |
Intel® Core™ i5-7300U Processor | FJ8067702739633 | 3M | 2.6 GHz | 15W | DDR3L-1600, LPDDR3-1866, DDR4-2133 |
Intel® Core™ i3-7100U Processor | FJ8067702739738 | 3M | 2.4 GHz | 15W | DDR3L-1600, LPDDR3-1866, DDR4-2133 |
Intel® Celeron® 3965U Processor | FJ8067702739934 | 2M | 2.2 GHz | 15W | DDR3L-1600, LPDDR3-1866, DDR4-2133 |
