Glen Forest
Manufactured on industry-leading 22nm process technology with 3D tri-gate transistors, these 4th generation Intel® Core™ processors are based on the Intel® microarchitecture codenamed Haswell. The introduction of Intel® Advanced Vector Extensions (Intel® AVX) 2.0 benefits math, codec, image, and digital signal processing software while improving performance in face detection, professional imaging, and high-performance computing. Paired with the Intel® Communications Chipset 89xxCC series, this processor-based platform extends the scalability of Intel® architecture (IA) into smaller footprint communications systems without sacrificing industry requirements such as workload acceleration and compression, multicore processing, and virtualization. The platform addresses the needs of thermally constrained solutions, such as midrange security appliances, branch office routers, network access, media and communications servers, small cells, control plane processing, and storage.
Key features on Glen Forest
- Error Correcting Code (ECC): Enhances performance, uptime, and autonomous operation. Detects multiple-bit memory errors and locates/corrects single-bit errors to keep a system up and running without requiring system reset.
- Intel® Hyper-Threading Technology1: Additional logical cores on Intel® architecture-based systems increase control plane and data plane performance. Boosts performance for parallel, multi-threaded applications
- Intel® QuickAssist Technology: Delivers hardware acceleration services for efficient cryptographic and compression performance.

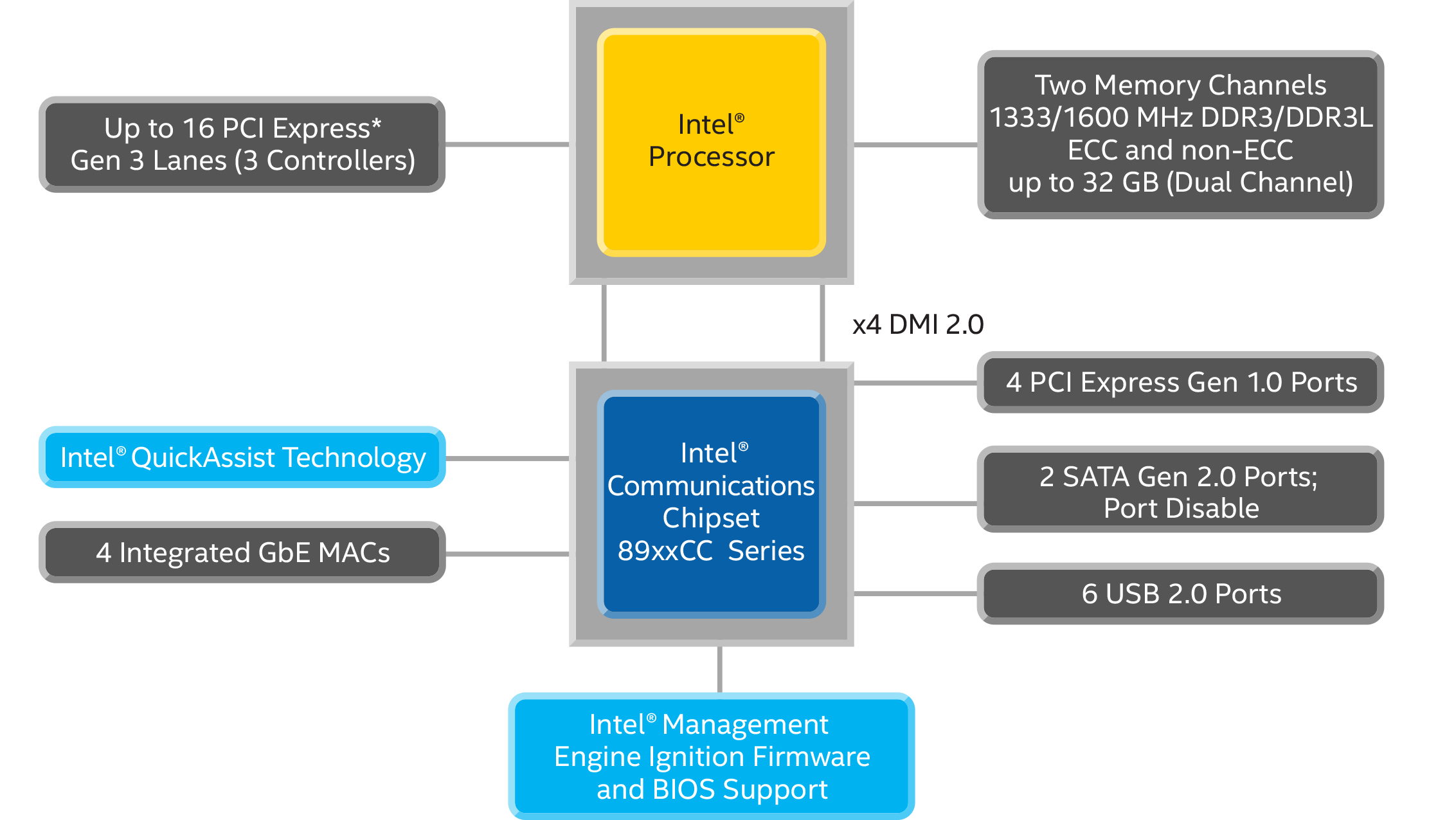

Platform components for Glen Forest
| Processor Name | Cache | Clock Speed | Power | Memory | Ordering Code |
|---|---|---|---|---|---|
| Intel® Core Processor i7-4700EC | 8 MB | 2.7 GHz | 43 W | DDR3L-1333/1600 | CL8064701830000 |
| Intel® Core Processor i7-4702EC | 8 MB | 2 GHz | 27 W | DDR3L-1333/1600 | CL8064701830100 |
| Intel® Core Processor i5-4402EC | 4 MB | 2.5 GHz | 27 W | DDR3L-1333/1600 | CL8064701830200 |
| Product | Ordering Code | Power | Features |
|---|---|---|---|
| Intel® Communications Chipset 8900 | DH8900CC | 8.5 W | x4 PCIe Gen2 |
| Intel® Communications Chipset 8903 | DH8903CC | 9.5 W | Intel® QuickAssist Technology, x4 PCIe Gen2 |
| Intel® Communications Chipset 8910 | DH8910CC | 11 W | Intel® QuickAssist Technology, x8 PCIe Gen2 |
| Intel® Communications Chipset 8920 | DH8920CC | 12 W | Intel® QuickAssist Technology, x16 PCIe Gen2 |
Product and Performance Information
Available on select Intel® Core™ processors. Intel® Hyper-Threading Technology (Intel® HT Technology) requires an Intel® HT Technology-enabled system. Consult your PC manufacturer. Performance will vary depending on the specific hardware and software used. For more information, including details on which processors support Intel® HT Technology, visit www.intel.com/content/www/us/en/architecture-and-technology/hyper-threading/hyper-threading-technology.html.
