Coffee Lake S
The 8th generation Intel® Core™, Pentium® and Celeron® processor families introduce the first 6-core processors for performance-demanding applications. These processors are manufactured on Intel's most up-to-date and optimized 14 nm technology. When paired with an Intel® 300 series chipset, these processors offer even greater CPU and graphics performance as compared to the previous generation and introduce native USB 3.1 Gen2 (10Gb/s) support. The S-series of processors enables more manufacturing flexibility to match performance, features, and price to IoT and other applications. These processors offer thermal design power (TDP) options of 65W and 35W to fit specific designs configurations with performance and low-power requirements. The S-series processors are ideally suited for applications like gaming, content creation, virtual reality, transactional retail terminals, digital security systems, and health care.
Key features on Coffee Lake S
- Performance Multiple offerings for scalable performance, enhanced performance over previous generation with up to 6 cores
- Immersive graphics and media performance 9th generation graphics engine, fast video acceleration, 3 independent 4K Ultra HD displays, extensive media codec library, HDMI 2.0/HDCP 2.2 (w/LSPCON)
- Improved I/O capability Up to 30 High-Speed I/O lanes on PCH, integrated USB-C / USB 3.1 Gen2 (10Gb/S)
- Enhanced OS offering Windows* 10 Enterprise & IOT Enterprse (64b), Yocto Project*, Wind River Linux*, VxWorks*
- Enhanced security features Intel Software Guard eXtensions (SGX) 1.0, Intel® Trusted Execution Engine 3.0, Intel® Platform Trust Technology
What you can do with Coffee Lake S
Retail transaction terminals
Flexible design options with greater performance and high speed configurable I/O. Remote management and operating system choices help deliver operational efficiency to the retailer.
Visual retail
Stunning 4K visuals enable context rich (media/graphics) customer engagement, enhanced power efficiency, and higher performance ideal for high end vending machines, kiosks, and digital signage.
Office automation
Scalable office based solutions with cloud service integration and remote manageability. Performance and power efficiency for office equipment, scaling to commercial printing.
Digital security and surveillance
High definition video: 4K Ultra HD support and high speed hardware encoding/decoding. High performance CPUs enable data analytics capabilities.
Smart cities
Scale from low-power systems to higher-end, greater performance applications and data analytics enabling route guidance, predictive traffic analysis, lighting & electronic toll control solutions.
Healthcare
Powerful mix of computing and graphics/imaging. Image processing and analysis scaling from applications like ultrasound and MRI to personal monitoring.

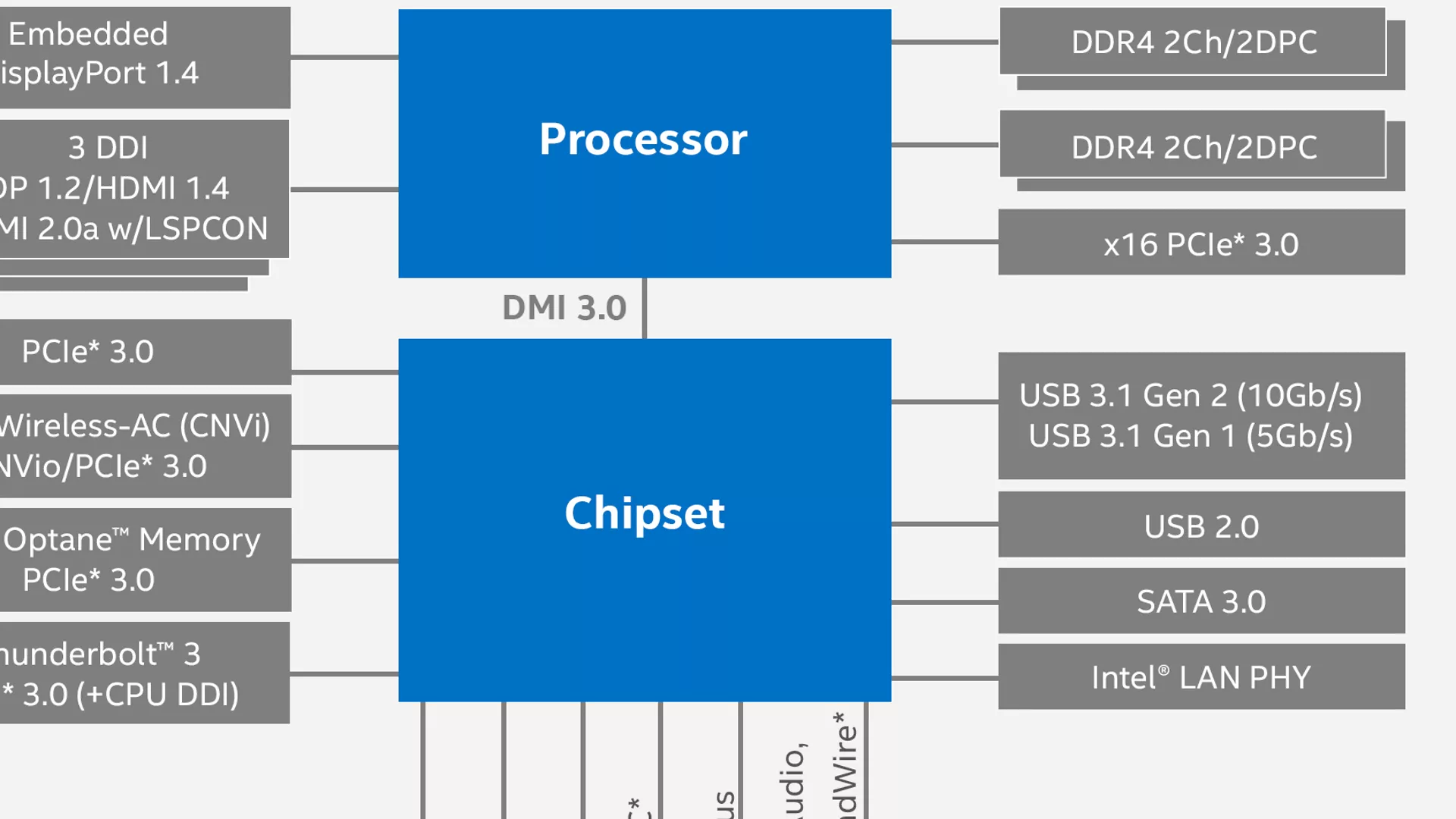

Platform components for Coffee Lake S
| Processor | # of cores | # of threads | Processor base frequency | TDP | Cache | Memory types | Intel® vPro™ Technology | IoT options available | Ordering code |
|---|---|---|---|---|---|---|---|---|---|
| Intel® Core™ i7-8700K Processor | 6 | 12 | 3.70 GHz | 95 W | 12 MB | DDR4-2666 | Yes | No | CM8068403358220 |
| Intel® Core™ i7-8700 Processor | 6 | 12 | 3.20 GHz | 65 W | 12 MB | DDR4-2666 | Yes | Yes | CM8068403358316 |
| Intel® Core™ i7-8700T Processor | 6 | 12 | 2.40 GHz | 35 W | 12 MB | DDR4-2666 | Yes | Yes | CM8068403358413 |
| Intel® Core™ i5-8600K Processor | 6 | 6 | 3.60 GHz | 95 W | 9 MB | DDR4-2666 | Yes | No | CM8068403358508 |
| Intel® Core™ i5-8600 Processor | 6 | 6 | 3.10 GHz | 65 W | 9 MB | DDR4-2666 | Yes | No | BX80684I58600 |
| Intel® Core™ i5-8500 Processor | 6 | 6 | 3.00 GHz | 65 W | 9 MB | DDR4-2666 | Yes | Yes | CM8068403362607 |
| Intel® Core™ i5-8400 Processor | 6 | 6 | 2.80 GHz | 65 W | 9 MB | DDR4-2666 | No | No | CM8068403358811 |
| Intel® Core™ i5-8600T Processor | 6 | 6 | 2.30 GHz | 35 W | 9 MB | DDR4-2666 | Yes | No | - |
| Intel® Core™ i5-8500T Processor | 6 | 6 | 2.10 GHz | 35 W | 9 MB | DDR4-2666 | Yes | Yes | CM8068403362509 |
| Intel® Core™ i5-8400T Processor | 6 | 6 | 1.70 GHz | 35 W | 9 MB | DDR4-2666 | No | No | - |
| Intel® Core™ i3-8350K Processor | 4 | 4 | 4.00 GHz | 91 W | 8 MB | DDR4-2400 | No | No | CM8068403376809 |
| Intel® Core™ i3-8300 Processor | 4 | 4 | 3.70 GHz | 62 W | 8 MB | DDR4-2400 | No | No | BX80684I38300 |
| Intel® Core™ i3-8100 Processor | 4 | 4 | 3.60 GHz | 65 W | 6 MB | DDR4-2400 | No | Yes | CM8068403377308 |
| Intel® Core™ i3-8300T Processor | 4 | 4 | 3.20 GHz | 35 W | 8 MB | DDR4-2400 | No | No | - |
| Intel® Core™ i3-8100T Processor | 4 | 4 | 3.10 GHz | 35 W | 6 MB | DDR4-2400 | No | No | - |
| Intel® Pentium® Gold G5600 Processor | 2 | 4 | 3.90 GHz | 54 W | 4 MB | DDR4-2400 | No | No | BX80684G5600 |
| Intel® Pentium® Gold G5500 Processor | 2 | 4 | 3.80 GHz | 54 W | 4 MB | DDR4-2400 | No | No | BX80684G5500 |
| Intel® Pentium® Gold G5400 Processor | 2 | 4 | 3.70 GHz | 54 W | 4 MB | DDR4-2400 | No | Yes | CM8068403360112 |
| Intel® Pentium® Gold G5500T Processor | 2 | 4 | 3.20 GHz | 35 W | 4 MB | DDR4-2400 | No | No | - |
| Intel® Pentium® Gold G5400T Processor | 2 | 4 | 3.10 GHz | 35 W | 4 MB | DDR4-2400 | No | Yes | CM8068403360212 |
| Intel® Celeron® Processor G4920 | 2 | 2 | 3.20 GHz | 54 W | 2 MB | DDR4-2400 | No | No | BX80684G4920 |
| Intel® Celeron® Processor G4900 | 2 | 2 | 3.10 GHz | 54 W | 2 MB | DDR4-2400 | No | Yes | CM8068403378112 |
| Intel® Celeron® Processor G4900T | 2 | 2 | 2.90 GHz | 35 W | 2 MB | DDR4-2400 | No | Yes | CM8068403379312 |
| Chipset | TDP | Max # of PCI Express lanes | USB configuration | Max # of SATA 6.0 Gb/s ports | IoT options available | Ordering code |
|---|---|---|---|---|---|---|
| Intel® Q370 Chipset | 6 W | 24 | 10 Total USB 3.1 Ports - Up to 6 USB 3.1 Gen 2 Ports - Up to 10 USB 3.1 Gen 1 Ports 14 USB 2.0 Ports |
6 | Yes | FHQ370 |
| Intel® H310 Chipset | 6 W | 6 | 4 USB 3.1 Gen 1 Ports 10 USB 2.0 Ports |
4 | Yes | FHH310 |
| Intel® B360 Chipset | 6 W | 12 | 6 Total USB 3.1 Ports - Up to 4 USB 3.1 Gen 2 Ports - Up to 6 USB 3.1 Gen 2 Ports 12 USB 2.0 Ports |
6 | No | FHB360 |
OS vendor |
Operating systems |
Platform |
Distribution |
Support |
|---|---|---|---|---|
Microsoft* |
Windows* 10 Enterprise & IOT Enterprise (64b) RS31 |
CFL-S/H |
Microsoft* |
Intel / Microsoft* |
Windows* Server 20161 |
Intel® Xeon® E-2100 Processor Family | |||
Linux* |
Ubuntu*, SuSe*, Redhat Enterprise* 1,2 (Kernel 4.14) | CFL-S/H |
Canonical Ltd.*, Attachmate Grp*, Red Hat* & open source |
|
Yocto* 2.4 Tool-based Embedded Linux Distribution1 |
CFL-S/H3
|
Yocto* project community |
||
RTOS |
Wind River* VxWorks* 7 |
CFL-S/H |
Wind River* systems |
|
1 Legacy boot not supported for Windows* 10 and Linux*. Customers should work with their BIOS vendors for enabling/validating legacy BIOS features.
2 Linux* supported by Intel via the upstreaming of Intel Linux* drivers to the Linux* Open Source Community. Adoption into individual Linux* distributions is dependent upon the OS vendor.
3 Yocto* BSP validated on CFL-H reference platform. The reference BSP expected to work on CFL-S as well.
