Coffee Lake Refresh
The 9th Generation Intel® Core™ H- and S-Series processors for IoT applications are Intel IoT’s most flexible generation of processors yet. All Intel IoT SKUs offer long-life availability, embedded use conditions, and support for Intel® Distribution of OpenVINO™ toolkit, Intel® Media SDK and select processors support Intel® vPro™ technology features (reference table below). Ranging from 4 to 8 cores, increased I/O capacity, support for Intel® Optane™ memory and the latest DDR4-2666 memory, these processors deliver the performance required to consolidate multiple workloads, a flexible platform to design intelligent devices and a mature ecosystem to accelerate the development of your value-add solutions enabling you to quickly put your ideas into action.
Key features on Coffee Lake Refresh
Immersive graphics and media
Deliver smooth 4K content streaming on multiple displays, enable simultaneous monitoring of ultra-high-definition video feeds, enhance speech recognition and audio playback, and much more.
High-speed connectivity
Draw from a broad range of connectivity options, including integrated Gigabit Wi-Fi, Thunderbolt™ 3 technology, and robust I/O, to quickly move data from devices to wherever it needs to go—to a network video recorder, an on-premise server, the cloud, or any other destination.
Intel® Optane™ Memory
Robust I/O makes it possible to connect multiple cameras, displays, graphics cards, and storage to the same system, while support for the latest Intel® Optane™ memory technology helps break through data transfer bottlenecks.
Remote manageability
With out-of-band remote manageability, Intel® Active Management Technology streamlines operations and creates a consistent approach to managing a broad spectrum of devices on the network, reducing IT support and saving time and money.
Topline specifications
- Up to 4.4 GHz max frequency
- DDR4-2666 memory
- Discrete Thunderbolt™ 3 support
- Generation 9.5 Intel® Graphics GT2
- Integrated and discrete Gigabit Wi-Fi
- Integrated USB 3.1 Generation 2
- Intel® Smart Sound Technology
- Intel® Turbo Boost Technology 2.0
- Intel® Media SDK

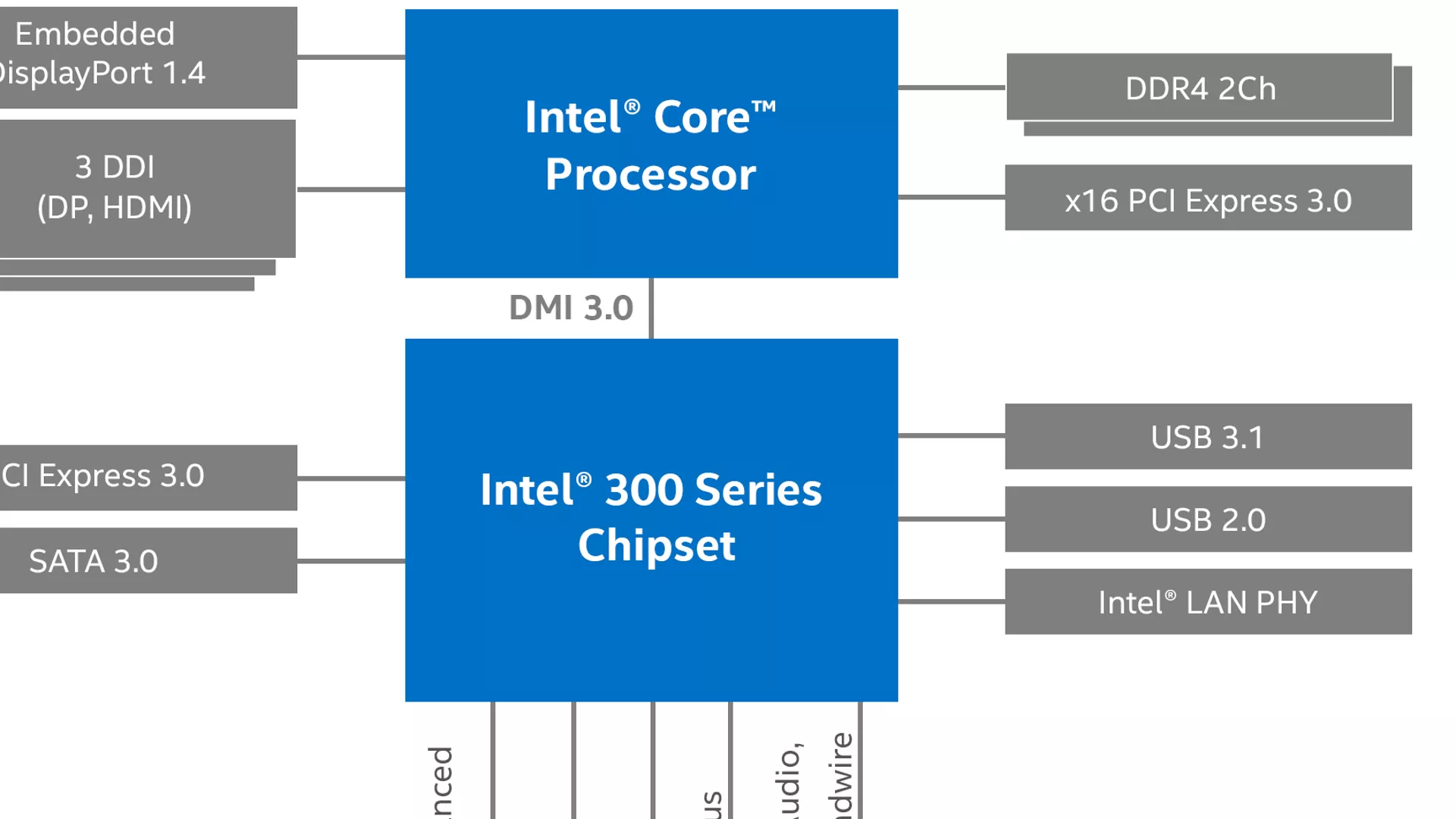

![Coffee Lake Refresh block diagram](/content/dam/www/program/design/us/en/images/16x9/coffee-lake-refresh-block-diagram-16x9.png.rendition.intel.web.720.405.png)
What you can do with Coffee Lake Refresh
Visual retail
Retail solutions deliver continuously streaming 4K media for attention-grabbing digital signage, kiosks, and menu boards to attract and inform shoppers with stunning visuals.
AI and retail
Enable capabilities such as facial recognition for authentication at ATMs or intelligent vending machines, object detection for cashier-free checkout, people counting, and audience analytics.
Industrial security
In the industrial sector, downtime can cause significant losses. Leverage hardware- and software-based security hardening to help protect systems and data at rest and in flight.
Platform components for Coffee Lake Refresh
9th Generation Intel® Core™ Processors S-Series and Intel® Xeon® E Processors GE/GEL-Series
Processor | Chipset | Cores | Threads | Cache (MB) | Base frequency (GHz) | Max turbo frequency (GHz) | TDP (W) | ECC | Intel® vPro™ Technology | Ordering code |
---|---|---|---|---|---|---|---|---|---|---|
Intel® Xeon® E-2278GE Processor | Intel® C246 Chipset | 8 |
16 |
16 |
3.3 |
4.7 |
80 |
Yes | Yes |
CM8068404196302 |
Intel® Xeon® E-2278GEL Processor | Intel® C246 Chipset | 8 |
16 |
16 |
2.0 |
3.9 |
35 |
Yes | Yes |
CM8068404311303 |
Intel® Xeon® E-2226GE Processor | Intel® C246 Chipset | 6 |
6 |
12 |
3.4 |
4.6 |
80 |
Yes | Yes |
CM8068404312804 |
Intel® Core™ i7-9700E Processor | Intel® Q370 Chipset | 8 |
8 |
12 |
2.6 |
4.4 |
65 |
No | Yes |
CM8068404196203 |
Intel® Core™ i7-9700E Processors |
Intel® C246 Chipset | 8 |
8 |
12 |
2.6 |
4.4 |
65 |
No | No |
CM8068404196203 |
Intel® Core™ i7-9700E Processors |
Intel® H310 Chipset | 8 |
8 |
12 |
2.6 |
4.4 |
65 |
No | No |
CM8068404196203 |
Intel® Core™ i7-9700TE Processor |
Intel® Q370 Chipset | 8 |
8 |
12 |
1.8 |
3.8 |
35 |
No | Yes |
CM8068404311404 |
Intel® Core™ i7-9700TE Processor |
Intel® C246 Chipset | 8 |
8 |
12 |
1.8 |
3.8 |
35 |
No | No |
CM8068404311404 |
Intel® Core™ i7-9700TE Processor |
Intel® H310 Chipset | 8 |
8 |
12 |
1.8 |
3.8 |
35 |
No | No |
CM8068404311404 |
Intel® Core™ i5-9500E Processor |
Intel® Q370 Chipset | 6 |
6 |
9 |
3.0 |
4.2 |
65 |
No | Yes |
CM8068404250704 |
Intel® Core™ i5-9500E Processor |
Intel® C246 Chipset | 6 |
6 |
9 |
3.0 |
4.2 |
65 |
No | No |
CM8068404250704 |
Intel® Core™ i5-9500E Processor |
Intel® H310 Chipset | 6 |
6 |
9 |
3.0 |
4.2 |
65 |
No | No |
CM8068404250704 |
Intel® Core™ i5-9500TE Processor |
Intel® Q370 Chipset | 6 |
6 |
9 |
2.2 |
3.6 |
35 |
No | Yes |
CM8068404311702 |
Intel® Core™ i5-9500TE Processor |
Intel® C246 Chipset | 6 |
6 |
9 |
2.2 |
3.6 |
35 |
No | No |
CM8068404311702 |
Intel® Core™ i5-9500TE Processor |
Intel® H310 Chipset | 6 |
6 |
9 |
2.2 |
3.6 |
35 |
No | No |
CM8068404311702 |
Intel® Core™ i3-9100E Processor |
Intel® Q370 Chipset |
4 |
4 |
6 |
3.1 |
3.7 |
65 |
No | No |
CM8068404250603 |
Intel® Core™ i3-9100E Processor |
Intel® C246 Chipset |
4 |
4 |
6 |
3.1 |
3.7 |
65 |
Yes | No |
CM8068404250603 |
Intel® Core™ i3-9100E Processor |
Intel® H310 Chipset |
4 |
4 |
6 |
3.1 |
3.7 |
65 |
No | No |
CM8068404250603 |
Intel® Core™ i3-9100TE Processor |
Intel® Q370 Chipset |
4 |
4 |
6 |
2.2 |
3.2 |
35 |
No | No |
CM8068404250504 |
Intel® Core™ i3-9100TE Processor |
Intel® C246 Chipset |
4 |
4 |
6 |
2.2 |
3.2 |
35 |
Yes | No |
CM8068404250504 |
Intel® Core™ i3-9100TE Processor |
Intel® H310 Chipset |
4 |
4 |
6 |
2.2 |
3.2 |
35 |
No | No |
CM8068404250504 |
9th Generation Intel® Core™ Processors H-Series and Intel® Xeon® E Processors ME/ML-Series
Processor | Chipset | Cores | Threads | Cache (MB) | Base frequency (GHz) | Max turbo frequency (GHz) | TDP (W) | ECC | Intel® vPro™ Technology | Ordering code |
---|---|---|---|---|---|---|---|---|---|---|
Intel® Xeon® E-2276ME Processor |
Mobile Intel® CM246 Chipset | 6 |
12 |
12 |
2.8 |
4.5 |
45 | Yes | Yes |
CL8068404164700 |
Intel® Xeon® E-2276ML Processor |
Mobile Intel® CM246 Chipset |
6 |
12 |
12 |
2.0 |
4.2 |
25 |
Yes | Yes |
CL8068404165100 |
Intel® Xeon® E-2254ME Processor |
Mobile Intel® CM246 Chipset |
4 |
8 |
8 |
2.6 |
3.8 |
45 | Yes | Yes |
CL8068404175200 |
Intel® Xeon® E-2254ML Processor |
Mobile Intel® CM246 Chipset | 4 |
8 |
8 |
1.7 |
3.5 |
25 |
Yes | Yes |
CL8068404165301 |
Intel® Core™ i7-9850HE Processor |
Mobile Intel® QM370 Chipset |
6 |
12 |
9 |
2.7 |
4.4 |
45 | No | Yes |
CL8068404164800 |
Intel® Core™ i7-9850HE Processor |
Mobile Intel® CM246 Chipset |
6 |
12 |
9 |
2.7 |
4.4 |
45 | No | No |
CL8068404164800 |
Intel® Core™ i7-9850HE Processor |
Mobile Intel® HM370 Chipset |
6 |
12 |
9 |
2.7 |
4.4 |
45 | No | No |
CL8068404164800 |
Intel® Core™ i7-9850HL Processor |
Mobile Intel® QM370 Chipset |
6 |
12 |
9 |
1.9 |
4.1 |
25 |
No | Yes |
CL8068404165200 |
Intel® Core™ i7-9850HL Processor |
Mobile Intel® CM246 Chipset |
6 |
12 |
9 |
1.9 |
4.1 |
25 |
Yes | No |
CL8068404165200 |
Intel® Core™ i7-9850HL Processor |
Mobile Intel® HM370 Chipset |
6 |
12 |
9 |
1.9 |
4.1 |
25 |
No | No |
CL8068404165200 |
Intel® Core™ i3-9100HL Processor |
Mobile Intel® QM370 Chipset |
4 |
4 |
6 |
1.6 |
2.9 |
25 |
No | No |
CL8068404165400 |
Intel® Core™ i3-9100HL Processor |
Mobile Intel® CM246 Chipset |
4 |
4 |
6 |
1.6 |
2.9 |
25 |
Yes | No |
CL8068404165400 |
Intel® Core™ i3-9100HL Processor |
Mobile Intel® HM370 Chipset |
4 |
4 |
6 |
1.6 |
2.9 |
25 |
No | No |
CL8068404165400 |
Intel® Pentium® G5600E Processor |
Mobile Intel® QM370 Chipset |
2 |
2 |
4 |
2.6 |
3.1 |
35 |
No | No |
CL8068404165000 |
Intel® Pentium® G5600E Processor |
Mobile Intel® CM246 Chipset |
2 |
2 |
4 |
2.6 |
3.1 |
35 |
Yes | No |
CL8068404165000 |
Intel® Pentium® G5600E Processor |
Mobile Intel® HM370 Chipset |
2 |
2 |
4 |
2.6 |
3.1 |
35 |
No | No |
CL8068404165000 |
Intel® Celeron® G4930E Processor |
Mobile Intel® QM370 Chipset |
2 |
2 |
2 |
2.4 |
2.4 |
35 |
No | No |
CL8068404164900 |
Intel® Celeron® G4930E Processor |
Mobile Intel® CM246 Chipset |
2 |
2 |
2 |
2.4 |
2.4 |
35 |
Yes | No |
CL8068404164900 |
Intel® Celeron® G4930E Processor |
Mobile Intel® HM370 Chipset |
2 |
2 |
2 |
2.4 |
2.4 |
35 |
No | No |
CL8068404164900 |
Intel® Celeron® G4932E Processor |
Mobile Intel® QM370 Chipset |
2 |
2 |
2 |
1.9 |
1.9 |
25 |
No | No |
CL8068404165500 |
Intel® Celeron® G4932E Processor |
Mobile Intel® CM246 Chipset |
2 |
2 |
2 |
1.9 |
1.9 |
25 |
Yes | No |
CL8068404165500 |
Intel® Celeron® G4932E Processor |
Mobile Intel® HM370 Chipset |
2 |
2 |
2 |
1.9 |
1.9 |
25 |
No | No |
CL8068404165500 |
OS Vendor |
Operating system 2 (Targeted for Support) |
Implementation | Distribution and support 3 |
---|---|---|---|
Microsoft |
Windows* 10 IoT Enterprise RS5 (64b) |
Intel |
Intel, Microsoft |
Linux* |
Ubuntu*, SUSE, Red Hat* Enterprise (64b) | Canonical Ltd., Attachmate Group, Red Hat, and open source | |
Yocto Project* BSP tool-based embedded Linux distribution (64b) |
Intel |
Intel, Yocto Project community |
|
RTOS |
Wind River VxWorks* 7 (64b) |
Wind River |
Product and Performance Information
As measured by SPECint*_rate_base2006 N copy on Intel® Core™ i7-9700E vs. Intel® Core™ i7-7700 processor
Intel® Core™ i7-9700E processor, PL1= 65W TDP, 8C8T, Turbo up to 4.4GHz, Intel® UHD Graphics 630, Motherboard: Asus* Prime Q370M-C, Memory: 2x8GB DDR4-2666, Storage: 512GB Intel® 545s SSD, OS: Microsoft Windows* 10 pro RS5 Build Version 1809.
Intel® Core™ i7-7700 processor, PL1=65W TDP, 4C8T, Turbo up to 4.2GHz, Intel® HD Graphics 630, Motherboard: Asus* Prime Q270M-C, Memory: 2x8GB DDR4-2400, Storage: 512GB Intel® 545s SSD, OS: Microsoft Windows* 10 Pro RS5 Build Version 1809.
SPEC* CPU2000/2006 is a benchmark from the SPEC consortium that measures device performance and throughput using compute intensive application subtests. SPECint*_base2000/2006 measures how fast a device completes a single integer compute task. SPECint*_rate_base2000/2006 measures throughput, or how many integer compute tasks a device can accomplish in a given amount of time. OS support: Desktop Windows*, UNIX*/Linux* and Mac* OS.
Performance results are based on testing as of May 24, 2019 and may not reflect all publicly available security updates. See configuration disclosure for details. No product can be absolutely secure.
This is the OS list that is tested internally and does NOT reflect the OS vendor support for these exact release versions. Please contact respective OS vendor(s) for the release version numbers and support. Several software patches will be upstreamed and will be picked up over time. These will be required to enhance platform support.
Intel only provides support for our tools, patches and utilities on the OS. Actual OS support should come from the OS Vendor.
