Broadwell DE
The Intel® Xeon® processor D-1500 product family is Intel’s third-generation 64-bit system on a chip (SOC) and the first Intel® Xeon® SoC based on Intel® 14 nm silicon technology. This lineup offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge. For applications where space is a premium, an integrated Platform Controller Hub (PCH) technology and Intel® Ethernet in a ball grid array (BGA) package offer an inspiring level of design simplicity. Highlights include Intel® Advanced Vector Extensions 2 (Intel® AVX2), Cache Monitoring Technology (CMT), Cache Allocation Technology (CAT), Memory Bandwidth Monitoring (MBM), Intel® Virtualization Technology, Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI), and Intel® Secure Key Instructions. Ideal for Industrial applications.
Key features on Broadwell DE
- Enhanced performance per watt The Intel Xeon processor D-1500 product family delivers exceptional value and unmatched performance density per watt with Intel® Xeon® processor in a SoC package. Its TDP of ~19W to 65W, industry-leading 14 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.
- Expanded hardware and software scalability The Intel Xeon processor D-1500 product family boasts hardware and software scalability from two to sixteen cores in a thermal design power (TDP) of ~19W to 65W. Utilizing similar development tools and processes as Intel® Core™, Intel Atom®, and other Intel Xeon processors, the Intel Xeon processor D-1500 product family delivers broad application compatibility and software consistency from the data center to the edge. The reliable Intel® x86 64-bit software support helps save time, cost, and validation.

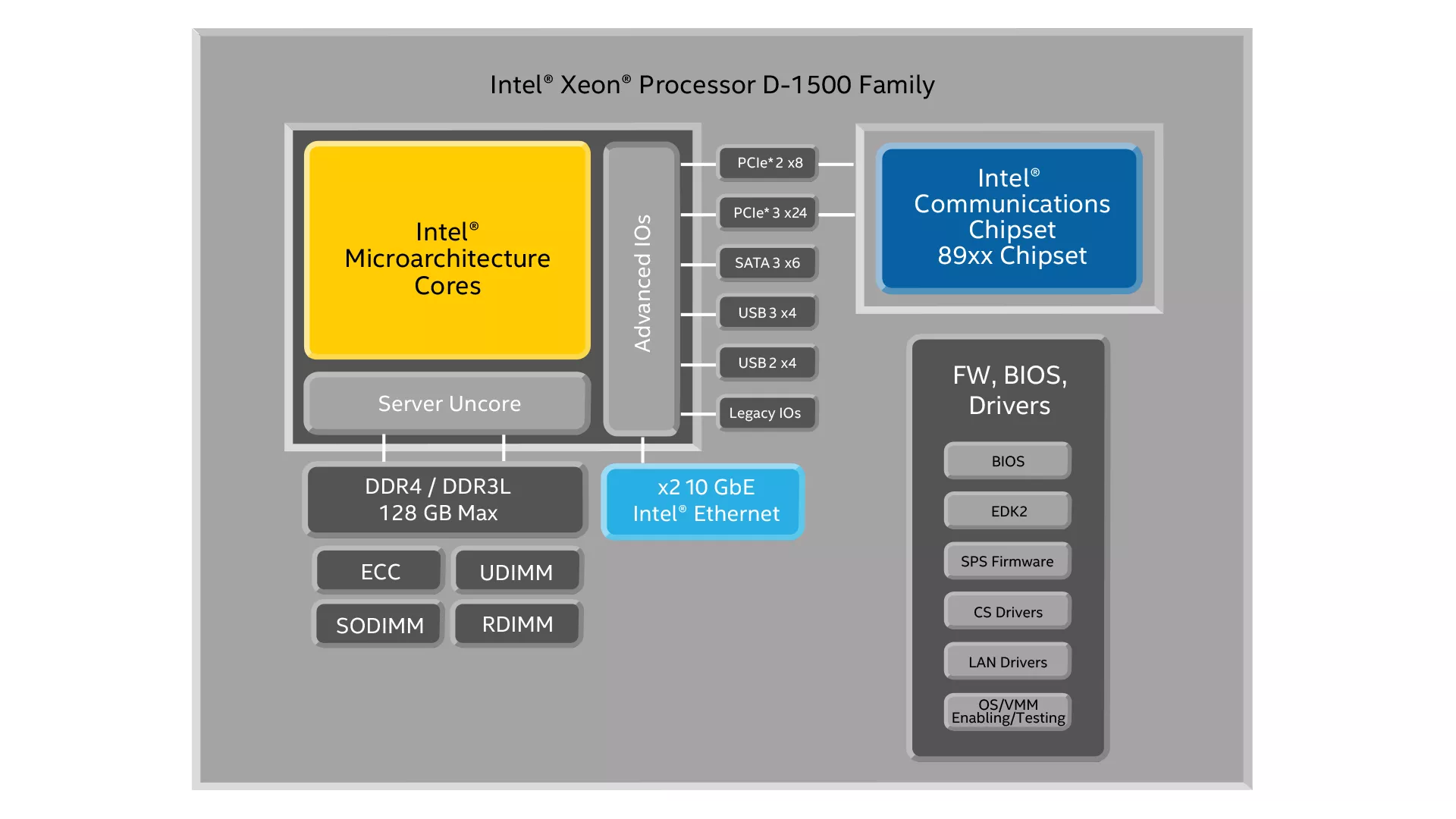

- Integrated SoC solution Save on engineering time and cost thanks to the efficiency of a one-chip solution offered by the Intel Xeon processor D-1500 product family. It brings the performance and advanced intelligence of Intel Xeon processors into a dense, lower-power system-on-a-chip. It removes board design complexity by integrating Platform Controller Hub technology and Intel® Ethernet, and by utilizing an integrated heat spreader and a BGA package to meet TDP targets.
- Enabling more IoT use cases The Intel® Xeon® processor D-1500 product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -40° C to 85° C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.
Processors specifications
| Processor name | Cache | Clock speed | Power | Memory | Ordering code |
|---|---|---|---|---|---|
3 MB |
2.2 GHz |
25 W |
128 GB |
GG8067402569900 |
|
3 MB |
1.5 GHz |
19 W |
128 GB |
GG8067402570103 |
|
6 MB |
1.5 GHz |
25 W |
128 GB |
GG8067402569601 |
|
6 MB |
2.2 GHz |
35 W |
128 GB |
GG8067402569400 |
|
6 MB |
1.3 GHz |
20 W |
128 GB |
GG8067402570001 |
|
12 MB |
1.6 GHz |
35 W |
128 GB |
GG8067402569400 |
|
12 MB |
2.0 GHz |
45 W |
128 GB |
GG8067402569300 |
|
18 MB |
1.5 GHz |
45 W |
128 GB |
GG8067402570801 |
|
18 MB |
2.1 GHz |
65 W |
128 GB |
GG8067402570603 |
|
24 MB |
1.3 GHz |
45 W |
128 GB |
GG8067402570503 |
