Bay Trail
Intel Atom® Processor E3800 and Z3700 Series, and Intel® Pentium® and Celeron® Processor N- and J-Series. Ideal for digital signage, retail, portable medical devices, and industrial control systems.
The Intel® Atom™ processor E3800 product family is the first system-on-chip (SoC) designed for intelligent systems,1 delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D tri-gate transistors, which deliver significant improvements in computational performance and energy efficiency.1

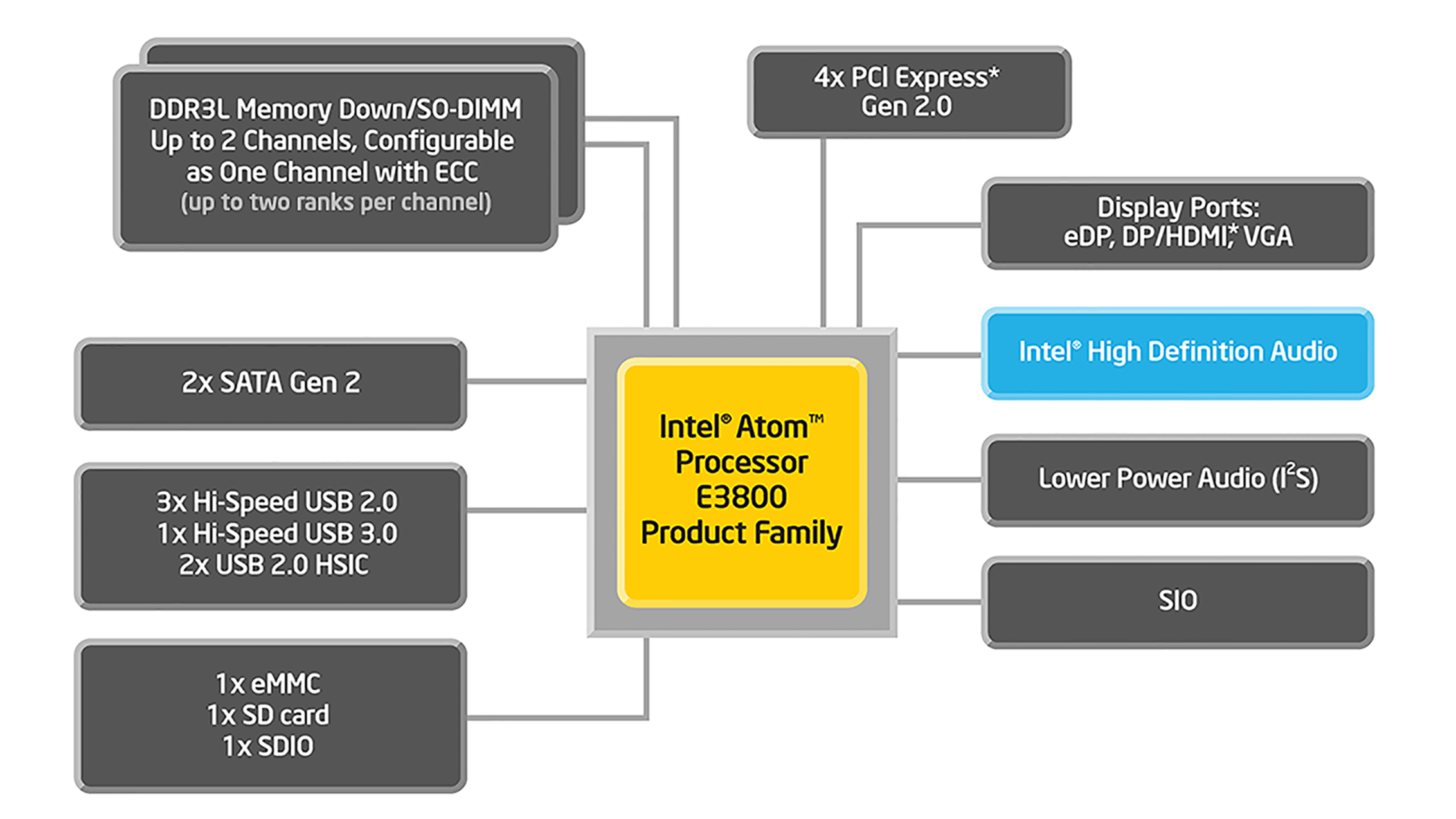

Highlights of the product family include high I/O connectivity, integrated memory controller, virtualization, error correcting code (ECC), and built-in security capabilities within a thermal design power (TDP) range of 5W to 10W.
Three Intel® Celeron® processor-branded SoCs, based on the same microarchitecture, are offered on Intel’s embedded roadmap. While they do not offer an industrial temperature range or ECC, they provide many of the same features and performance-per-watt benefits, making them ideal for PC-like designs, such as thin clients, retail transactional clients, and digital signs.2
Topline specifications
- SoC designed specifically for intelligent systems
- Outstanding compute, graphics, and media performance
- Extended thermal range
- High I/O connectivity, integrated memory controller
- Virtualization, error correcting code (ECC), and built-in security
Processors specifications
| Processor Number | Ordering Code | Cache | Clock Speed | Memory Types | |
|---|---|---|---|---|---|
| Intel Atom® Processor E3805 (1M Cache, 1.33 GHz) | FH8065301989700 | 1.0 MB | 1.33 GHz | 3 | DDR3L 1067 |
| Intel® Celeron® Processor N2807 (1M Cache, up to 2.16 GHz) | FH8065301730502 | 1.0 MB | 1.58 GHz | 4.3 | DDR3L 1333 |
| Intel® Celeron® Processor N2930 (2M Cache, up to 2.16 GHz) | FH8065301729501 | 2.0 MB | 1.83 GHz | 7.5 | DDR3L 1333 |
| Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | FH8065301615009, FH8065301615010 | 2.0 MB | 2.00 GHz | 10 | DDR3L 1333 |
| Intel® Celeron® Processor N2920 (2M Cache, up to 2.00 GHz) | FH8065301616203 | 2.0 MB | 1.86 GHz | 7.5 | DDR3L 1066 |
| Intel Atom® Processor E3825 (1M Cache, 1.33 GHz) | FH8065301567311, FH8065301567313 | 1.0 MB | 1.33 GHz | 6 | DDR3L 1067 |
| Intel Atom® Processor E3845 (2M Cache, 1.91 GHz) | FH8065301487715, FH8065301487717 | 2.0 MB | 1.91 GHz | 10 | DDR3L 1333 |
| Intel Atom® Processor E3815 (512K Cache, 1.46 GHz) | FH8065301567411, FH8065301567414 | 512 KB | 1.46 GHz | 5 | DDR3L 1067 |
| Intel Atom® Processor E3826 (1M Cache, 1.46 GHz) | FH8065301542213, FH8065301542215 | 1.0 MB | 1.46 GHz | 7 | DDR3L 1067 |
| Intel Atom® Processor E3827 (1M Cache, 1.75 GHz) | FH8065301487916, FH8065301487918 | 1.0 MB | 1.75 GHz | 8 | DDR3L 1333 |
Product and Performance Information
Claim based on comparison with previous-generation microarchitectures for Intel® Atom™ processors.
Claim based on comparison with previous-generation microarchitectures for Intel® Celeron® processors.
