GTS PMA/FEC Direct PHY IP
GTS is a general purpose transceiver in Agilex™ 5 FPGAs. The transceiver is monolithically integrated into the FPGA core fabric offering up to 28Gbps data speeds optimized for power efficiency, low-latency, and dynamic reconfiguration to implement multiple protocols.
Empower FPGAs to Deploy Applications That Require Transceivers to Transmit and Receive Gbps Signals With Ease.
- Dynamic Reconfiguration - NRZ transceivers optimized for a wide variety of applications, ranging from 1 Gbps to 28.1 Gbps.
- Advanced adaptive equalization circuits to enable long reach backplane driving applications.

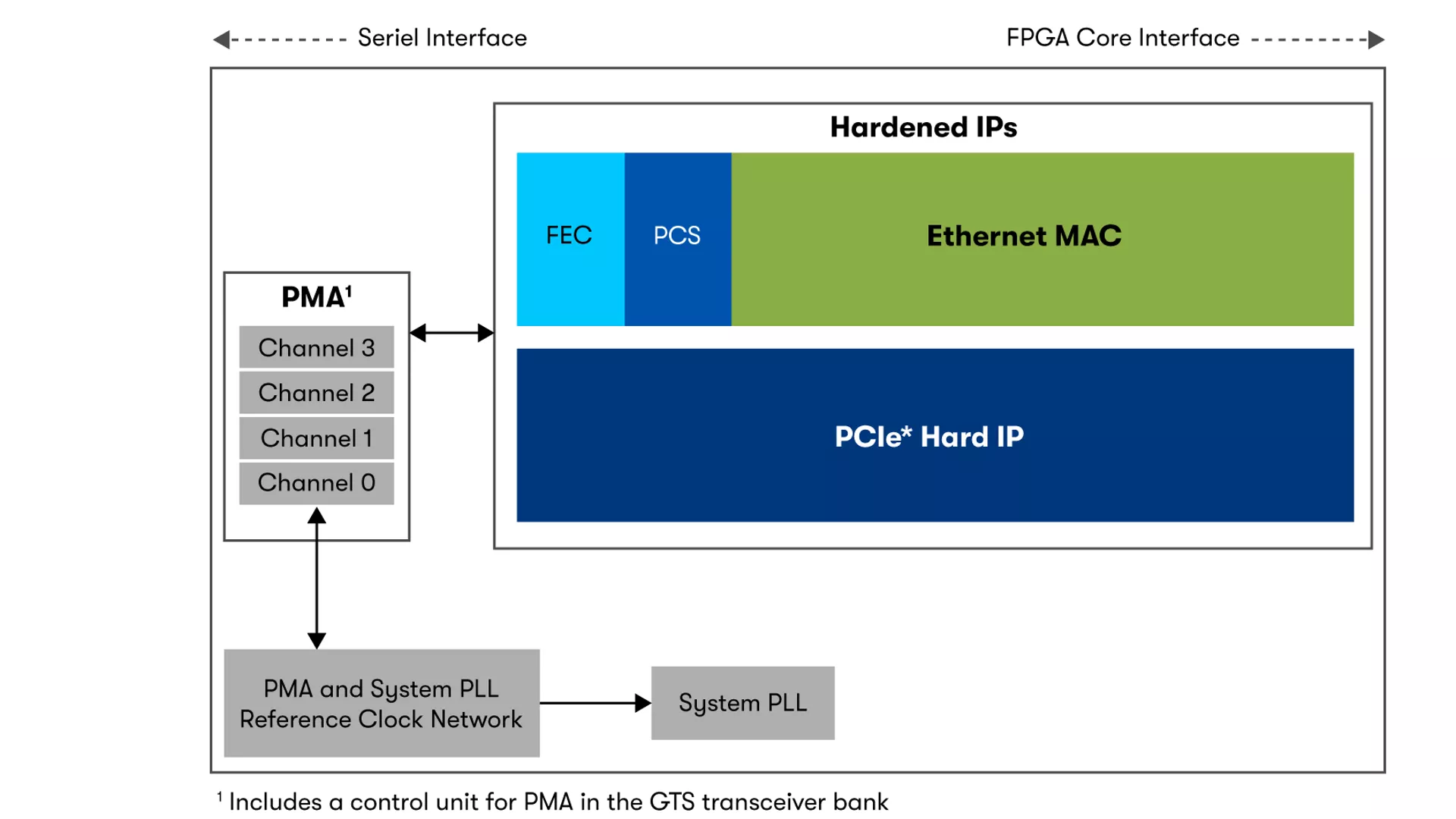

- Dedicated PMA and PLLs for independent usage of transceiver channels with Avalon® memory-mapped interface.
- Hardened PCS—supports 64b/66b encoding and decoding functions, data scrambling, block alignment, and gear boxing functions.
- Hardened FEC—Firecode and Reed Solomon for 10/25 Gb Ethernet BASE-KR/CR (Backplane) applications.
- Supports SFP and SFP+ Direct Attach for implementation of optical modules.
- Supports PCIe 4.0x8*, 25GbE Ethernet with IEEE 802.3 compliant, and FEC – Firecode and Reed Solomon*.
*Only in Agilex™ 5 FPGA E-Series Group A and D-Series devices.
100/200 Gbps OTN Muxponders and 2.5Gbps – 100Gbps GPON Platform.
Solid State Radar Platforms.
Low Latency Ethernet Network Interfaces.
High-Bandwidth PCIe interfaces.
HD video and vision processing.
Agilex™ 5 FPGAs In-Action Demo Video
Watch this demonstration to see the high-bandwidth transceivers on our mid-range devices with a first look at 17 Gbps transceiver performance on Agilex 5 FPGA E-Series.
