FPGA AI Suite
The FPGA AI Suite enables FPGA designers, machine learning engineers, and software developers to create optimized FPGA AI platforms efficiently. Utilities in the suite speed up FPGA development for AI inference using familiar and popular industry frameworks such as TensorFlow or PyTorch and OpenVINO toolkit, while also leveraging robust and proven FPGA development flows with the Quartus Prime Software.
FPGA AI Suite
Benefits
High Performance
Agilex™ 7 FPGA M-Series can achieve a maximum theoretical performance of 88.5 INT8 TOPS, or 3,679 Resnet-50 frames per second at 90% FPGA utilization.1
Low Total Cost of Ownership with Easy System Integration
Integrate AI IP with other system-level components to achieve smaller footprint, lower power, and latency.
AI Front End Support
Use your favorite AI front end such as TensorFlow, Caffe, Pytorch, MXNet, Keras, and ONNX.
Simple and Standard Flows
Create and add AI inference IP to current or new FPGA designs with Quartus Prime Software or Platform Designer.
Access to Pre-Trained Models
FPGA AI Suite supports most of the models in Open Model Zoo.
Seamless Pre-Trained Model Conversion
OpenVINO Toolkit converts models from most of the standard frameworks to intermediate representations.
Push-Button Optimized AI IP Generation
FPGA AI Suite seamlessly generates optimal AI inference IP from pre-trained AI model sweeping the design space for optimal resources to performance targets.
Hardware-less Early Model Validation
Bit-accurate2 software emulation of the AI inference IP is available through the OpenVINO plugin interface enabling quicker evaluation of the accuracy of the model without hardware.
FPGA AI Inference Development Flow
The development flow seamlessly combines a hardware and software workflow into a generic end-to-end AI workflow. The steps are as follows:
1. OpenVINO Model Optimizer converts your pre-trained model to intermediate representation network files (.xml) and weights, biases files (.bin).
2. FPGA AI Suite compiler is used to:
- Provide estimated area or performance metrics for a given architecture file or produce an optimized architecture file. (Architecture refers to inference IP parameters such as size of PE array, precisions, activation functions, interface widths, window sizes, etc.)
- Compile network files into a .bin file with network partitions for FPGA and CPU (or both) along with weights and biases.
3. The compiled .bin file is imported by the user inference application at runtime.
- Runtime application programming interfaces (APIs) include Inference Engine API (runtime partition CPU and FPGA, schedule inference) and FPGA AI (DDR memory, FPGA hardware blocks).
4. Reference designs are available to demonstrate the basic operations of importing .bin and running inference on FPGA with supporting host CPUs (x86 and Arm processors) as well as hostless inference operations.
5. Software emulation of the FPGA AI Suite IP is accessible through the OpenVINO plugin interface enabling quicker evaluation of the accuracy of FPGA AI IP without access to hardware (available for Agilex™ 5 FPGA only).
Notes:
Devices supported: Agilex™ 5 FPGA, Agilex™ 7 FPGA, Cyclone® 10 GX FPGA, Arria® 10 FPGA
Tested networks, layers, and activation functions3:
- ResNet-50, MobileNet v1/v2/v3, YOLO v3, TinyYOLO v3, UNET, i3d
- 2D Conv, 3D Conv, Fully Connected, Softmax, BatchNorm, EltWise Mult, Clamp
- ReLU, PReLU, Tanh, Swish, Sigmoid, Reciprocal
System Level Architectures
FPGA AI Suite is flexible and configurable for a variety of system-level use cases. Figure 1. lists the typical ways to incorporate the FPGA AI Suite IP into a system. The use cases span different verticals, from optimized embedded platforms to applications with host CPUs (Intel® Core™ processors, Arm processors) to data center environments with Intel® Xeon® processors. It supports hostless designs and soft processors such as the Nios® V processors.
Figure 1: Typical Intel FPGA AI Suite System Topologies

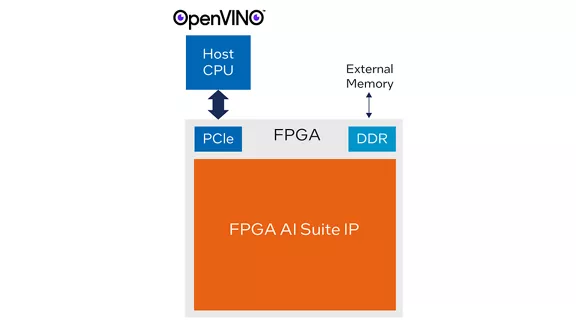

CPU offload
AI Accelerator

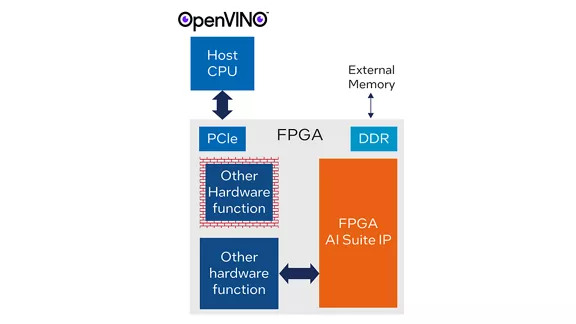

Multi-function CPU offload
AI Accelerator + Additional Hardware Function

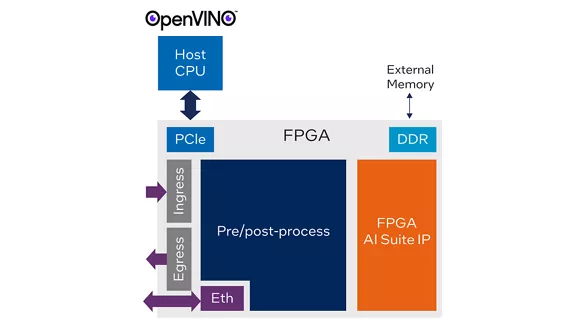

Ingest / Inline Processing + AI
AI Accelerator + Direct Ingest and Data Streaming

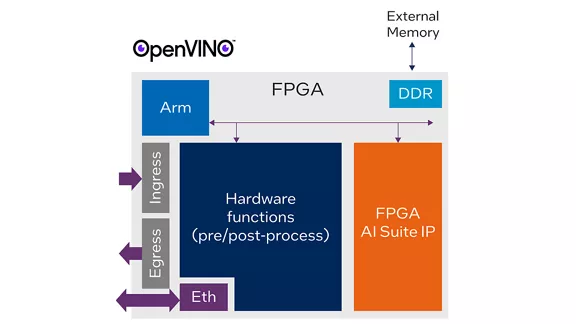

Embedded SoC FPGA + AI
AI Accelerator + Direct Ingest and Data Streaming + Hardware Function +
Embedded Arm or Nios® V Processors
FPGA AI Design Guided Journey
Explore the interactive FPGA AI Design Guided Journey, which provides step-by-step guidance for developing AI Intellectual Property (IP) designs.
Start designing
Learn More About FPGAi
Browse the FPGAi resources, white papers, and success stories
Learn more
Why FPGAs Are Especially Good for Implementing AI?
Read about the emerging use cases of FPGA-based AI inference in edge and custom AI applications, and software and hardware solutions for edge FPGA AI.
Read the white paper
