Cyclone® V SX SoC Development Kit

The Cyclone® V SoC Development Kit offers a quick and simple approach to developing custom ARM* processor-based SoC designs accompanied by the low-power, cost-sensitive Cyclone® V FPGA fabric.

This kit supports a wide range of functions, such as:

  • Processor and FPGA prototyping and power measurement
  • Industrial networking protocols
  • Motor control applications*
  • Acceleration of image- and video-processing applications*
  • PCI Express (PCIe) x4 lane with ~1,000 MBps transfer rate (endpoint or rootport)

* Application-specific daughtercards, available separately, supporting a wide range of I/O and interface standards.

Table 1. Ordering Information

Ordering Code Check Distributor Availability Device
DK-DEV-5CSXC6N-B

Mouser

DigiKey

 5CSXFC6D6F31C6N
View all Show less

Table 2. Development Kit Contents and Features

What is included

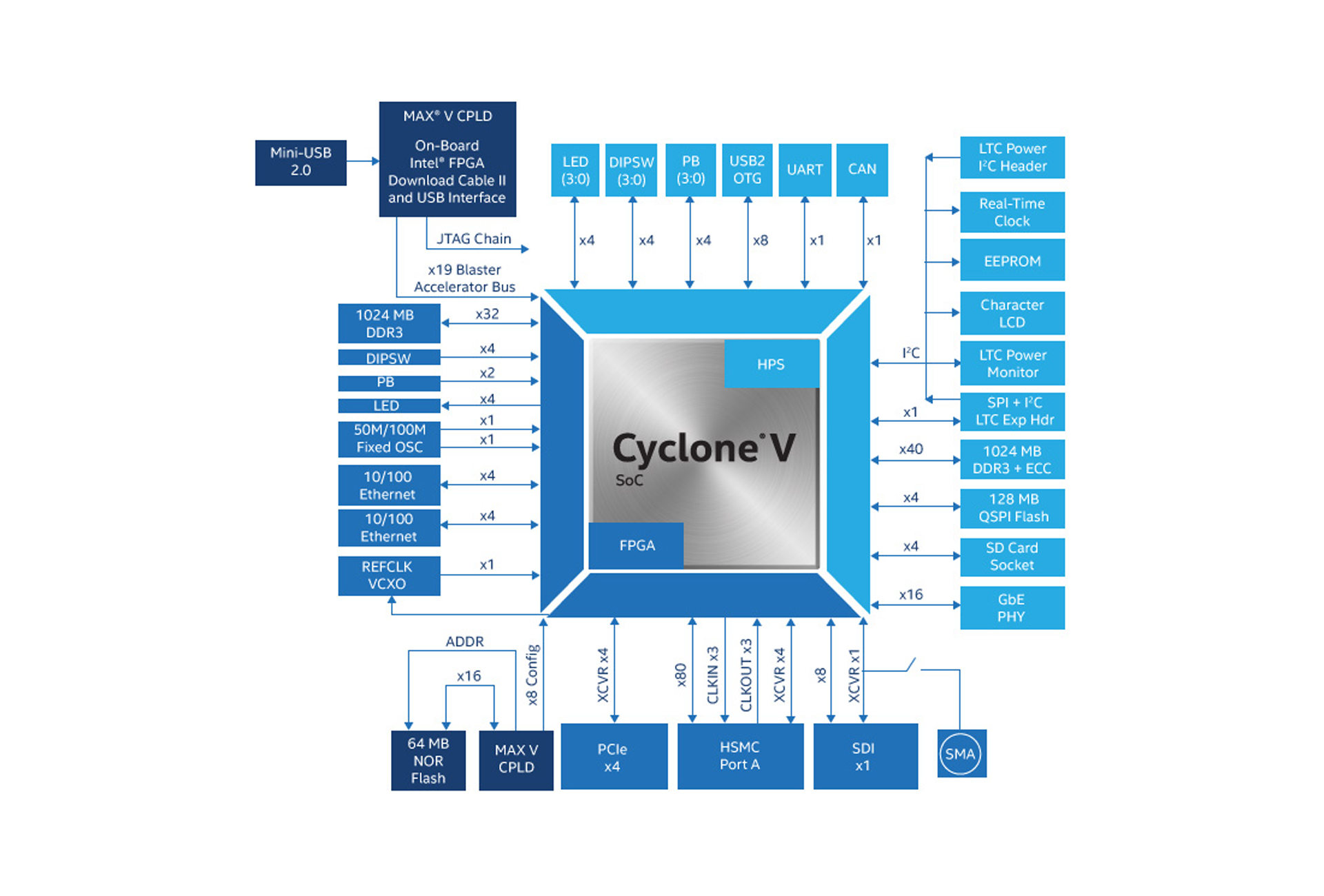

Device Cyclone® V SX development board featured devices
  • Cyclone® V SX SoC—5CSXFC6D6F31C6N (SoC)
  • MAX® V CPLD—5M2210ZF256C4N (system controller)
  • MAX® II CPLD—EPM570GF100 (embedded Intel® FPGA Download Cable II)
FPGA I/O interfaces

2X 10/100 Megabit Ethernet PHYs (EtherCAT)

PCIe* 1.0 x4 female connector

Universal high-speed mezzanine card (HSMC)—x4 transceivers, x16 TX LVDS, x16 RX LVDS

One serial digital interface (SDI) channel

Four SMAs for one transceiver channel

4X push buttons

2X switches

4X LEDs
HPS I/O interfaces

1X USB 2.0 On-the-Go (OTG)

1X 10/100/1000 Megabit Ethernet (10MbE/100MbE/1000MbE)

1X CAN

1X UART (UART to USB bridge)

1X real-time clock (with battery backup)

1X two-line text LCD

1-/2-channel, 20 bit delta-sigma analog-to-digital converter (Linear Technology LTC2422)

4X push buttons

4X switches

4X LEDs
HPS boot sources

1 GB DDR3 SDRAM (32 bit) with error correction code (ECC)

128 MB quad SPI flash memory

Micro-SD card socket with 4 GB micro-SD card flash device
Memory HPS I/O memory:
  • 1 GB DDR3 SDRAM (32 bit) with error correction code (ECC)
  • 128 MB quad SPI flash memory
  • Micro-SD card socket with 4 GB micro-SD card flash device
FPGA Memory:
  • 1 GB DDR3 SDRAM (32 bit)
Cables and Adapters Laptop DC Input 14 – 20 V adapter, PCIe edge connector
Software A one-year license for the Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information
View all Show less

Table 3. Documentation

Design Files Content Description
User Guide Documentation about setting up the development kit and using the included software.

DK-DEV-5CSXC6N (v22.1std or higher)

DK-DEV-5CSXC6N-B (v22.1std or higher)

 A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 1.0 x4
    Download and unzip the Design Files first, then install the Board Test System.
Board Reference Manual Detailed information about board components and interfaces.
Board Schematic Revision E
View all Show less

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
