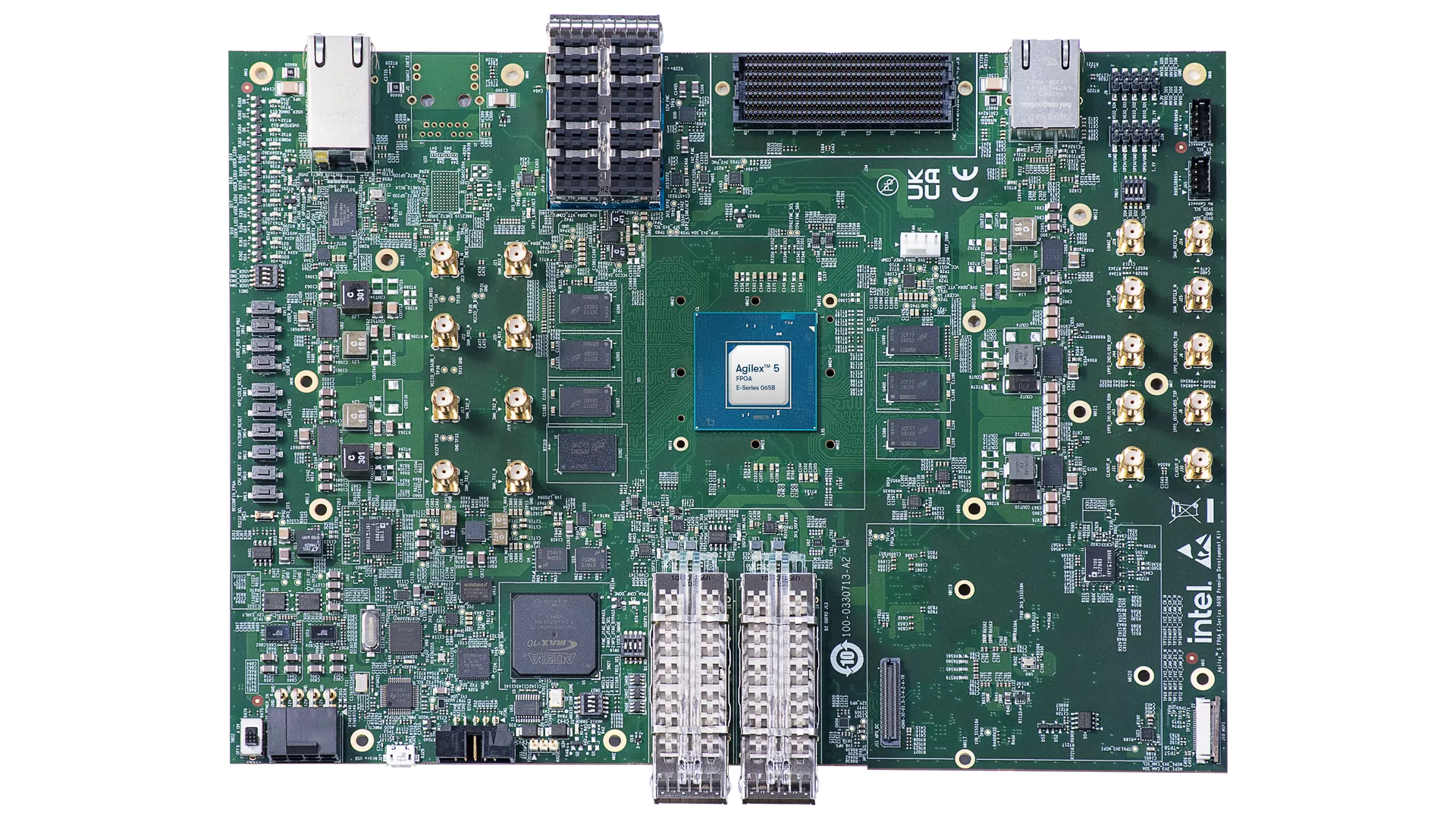

Agilex™ 5 FPGA E-Series 065B Premium Development Kit

Agilex™ 5 FPGA E-Series 065B Premium Development Kit delivers a complete prototyping and reference platform design environment that includes both hardware and software for your Agilex™ 5 FPGA E-Series development needs. ​

Learn more about Agilex™ 5 FPGA E-Series devices ›​

This kit comes in a tabletop form factor, packed with a robust set of features and connectors that are designed to meet your edge and embedded applications​. The features include:

  • 17G transceiver interfaces.
  • Memory interfaces enabling lightning-fast memory access.
  • PCIe 3.0 x 4 connectivity through our FMC+ connector​.
  • Nios® FLASH and 2Gb QSPI FLASH memory​.
  • Hard Processor System expansion board​.

Download the product brief for more information

Table 1. Ordering Information

Ordering Code

Contact Distributor For Availability

Agilex® 5 FPGA E-Series Device

DK- A5E065BB32AES1

DigiKey

Mouser

A5ED065BB32AE6SR0
View all Show less

Table 2. Development Kit Contents and Features

What is Included
Device FPGA: A5ED065BB32AE6SR0
  • Quad HPS, 17G Transceivers, 656 KLEs, B32A(32mm x 32mm) package, 6x10GbE, PCIe 3.0
Form Factor
 Tabletop
Interfaces

FMC+ Connector supporting (8 Tx/RX )

2 channels to QSFP and SFP+, Tx/RX SMAs, SGMII (RJ45 Ethernet)

PCIe 3.0 x 4 support through FMC+ connector

  • The ES development kit (DK- A5E065BB32AES1) is installed with -6s speed grade FPGA and supports up to PCIe 3.0.
  • The Production revision of the development kit will support PCIe 4.0 x4.
DDR Memory

LPDDR4, DDR4, HPS DDR4 up to 2667 Mbps (component soldered)
Flash Memory Nios® FLASH and 2Gb QSPI FLASH
Expansion Boards

HPS Enablement Expansion Board (Micro SD Card, RJ45, USB Type- C (USB2/3.2 Gen1)

USB 3.2/Gen1 supported on Production version of the Development Kit



HPS NAND Board (Optional). To be purchased separately. Ordering Code: EB-HPSNB

HPS Test Board (Optional). To be purchased separately. Ordering Code: EB-HPSTB
Cables & Adapters AC adapter power and USB cables
Software Quartus® Prime Pro Edition design software is included for free with the purchase of the kit. Available for download from within the Quartus Prime Software after installation or from the Intel FPGA Self-Service Licensing Center. Visit Intel FPGA Licensing Support Center for additional licensing help.
View all Show less

Table 3. Documentation

Design Files Content Description
Quick Start Guide Instructions for the initial setup of the development kit.

User Guide

Documentation about setting up the development kit and using the included software (Quartus® Prime and installer package).

Installer Package

DK-A5E065BB32AES1 (v24.2 or higher)

A single installation file containing:

  • User Guide - Contains the user guide.
  • Design Files - Contains schematics and layout, Assembly, and Bill of Materials.
  • Examples - Board Test System: BTS GUI.
  • Examples - Golden Top project for pinout assignments management.
  • Examples - Design Examples: Memory, XCVR, and GPIO.

Download and unzip the Design Files first, then install the Board Test System.

Agilex™ 5 FPGA E-Series 065B Premium Development kit GSRD (Golden System Reference Design)

Instructions for getting started on hardware and software designs that utilize the HPS (hard processor system) on Agilex™ 5 FPGA E-Series 065B.

DK-A5E065BB32AES1
Board Schematic DK-A5E065BB32AES1
View all Show less

Unboxing the Agilex™ 5 FPGA E-Series 065B Premium Development Kit

Watch this video to find out what's included in this development kit and how to set it up.

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
