Performance Analysis Tutorial for Linux* OS

Enable Platform-Appropriate Vectorization

At this point in the Tutorial, you enable the use of vector registers appropriate for the platform and check vectorization efficiency.

NOTE:

  • For an in-depth exploration of vectorization, use Intel® Advisor to get insights into vectorization opportunities, vectorization efficiency, and dependencies.

  • In this section, you use the -xHost option compile the application with the best instruction set extension out of the ones that your processor performing the compilation supports. To generate multiple code paths that enable your software to run on a variety of microarchitectures, see the ax, Qax option of the Intel® oneAPI DPC++/C++ Compiler.

Enable Full Vectorization

To enable the use of a vector instruction set appropriate for the platform, one possible way is to instruct the compiler to use the same vector extension as the best one available in the processor performing the compilation.

Follow these steps to enable platform-appropriate vectorization:

  1. Open the Makefile located in ../matrix/linux with a text editor.

  2. Change line 43 from:

    OPTFLAGS =

    To:

    OPTFLAGS = -xHost

    This option instructs the compiler to use the best instruction set extension that the processor performing the compilation supports.

  3. Save and close the Makefile and recompile the application using command:

    make icc

Check Vectorization with Performance Snapshot

Run the Performance Snapshot analysis to ensure that the application is properly vectorized.

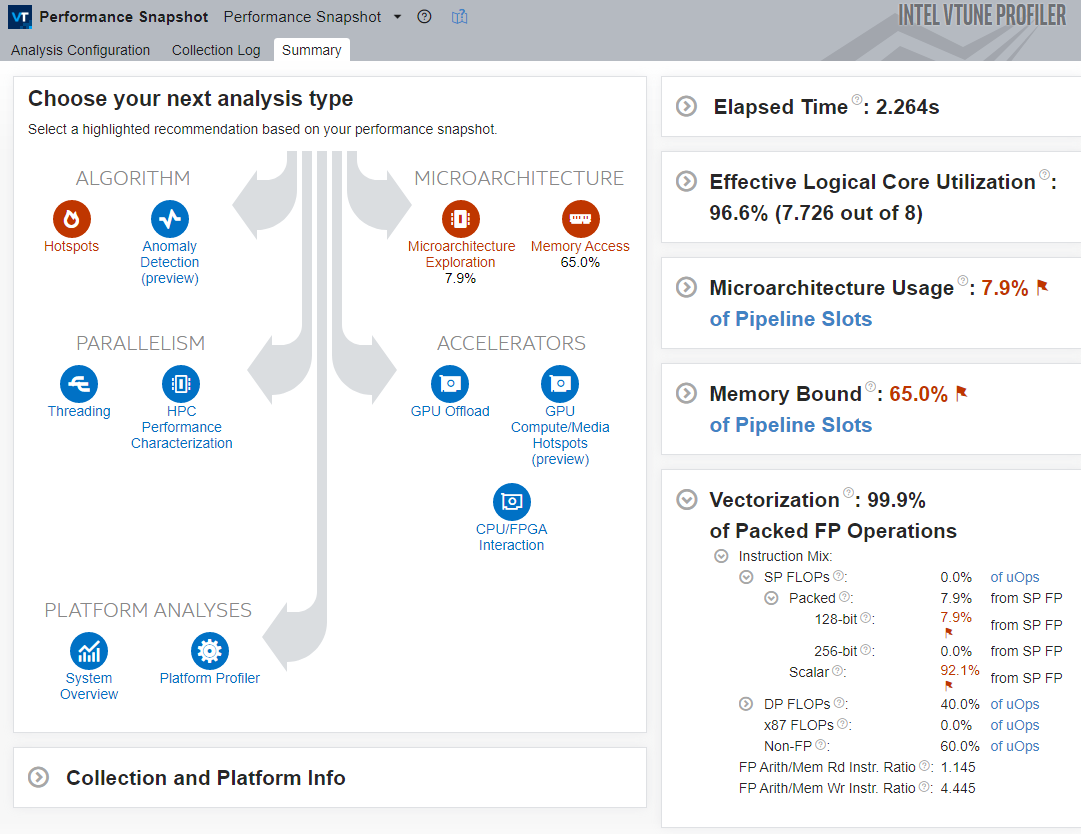

Once the application exits, Intel® VTune™ Profiler opens the Performance Snapshot Summary window.

Observe these main indicators:

  • The Elapsed Time for the application has slightly decreased.

  • The Vectorization metric equals to 99.9%, so the code was fully vectorized.

  • A total 100.0% of Packed DP FLOP instructions were executed using the 256-bit registers. Therefore, even without running the HPC Performance Characterization analysis, the conclusion is that the AVX2 vector extensions were fully utilized.

  • VTune Profiler highlights the Microarchitecture Usage metric and offers to use the Microarchitecture Exploration analysis to understand how exactly the application is underutilizing the microarchitecture.

Next step: Analyze Microarchitecture Usage.
