9.1.2. Creating an FPGA OpenCL Template

To create an FPGA OpenCL Template, perform these steps:

  1. Navigate to the File > New > Project > Visual C++ > OpenCL menu option.
  2. Choose OpenCL Project for Intel FPGA. A new project is created. This project supports Intel® FPGA by default.

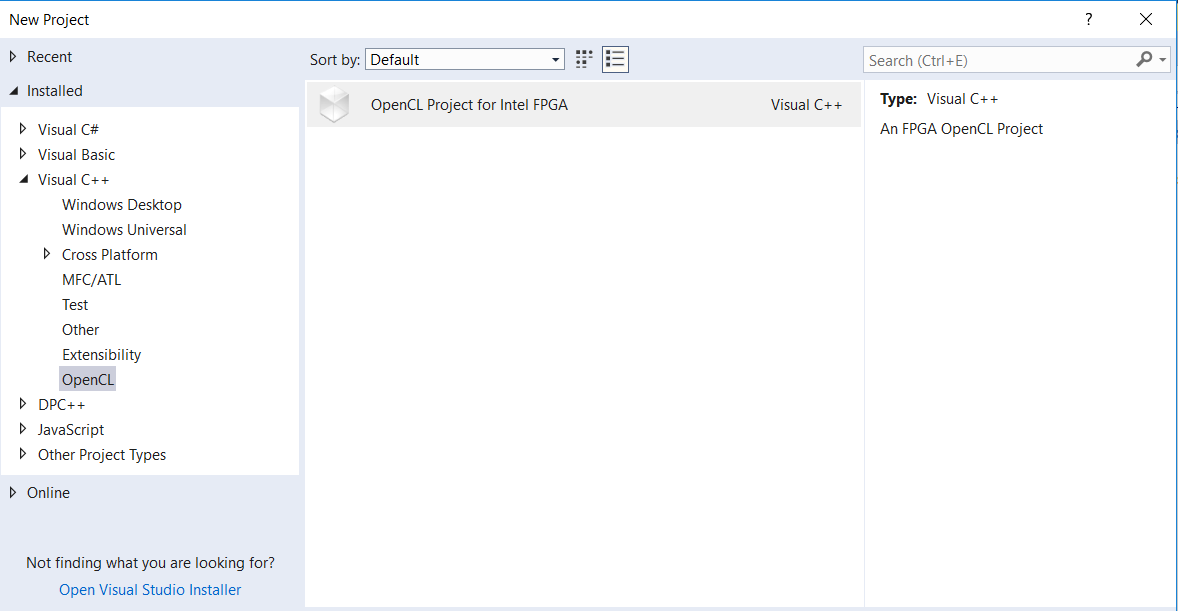

    Figure 17. Creating a New Project in Visual Studio
