1.2. Generating and Configuring the EMIF IP

The following steps illustrate how to generate and configure the EMIF IP. The steps are similar regardless of the memory protocol that you are targeting.

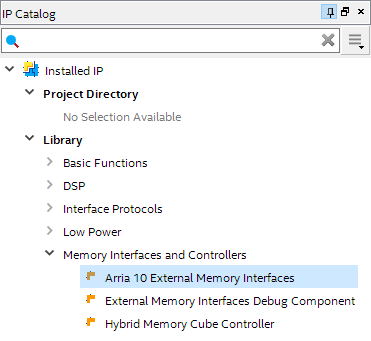

  1. In the IP Catalog window, select Intel® Arria® 10 External Memory Interfaces. (If the IP Catalog window is not visible, select View > Utility Windows > IP Catalog.)

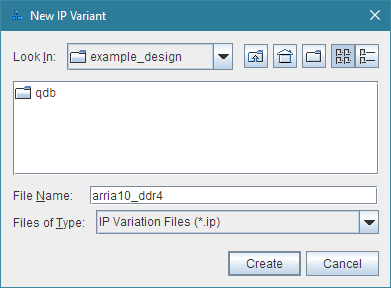

  2. In the IP Parameter Editor, provide an entity name for the EMIF IP (the name that you provide here becomes the file name for the IP) and specify a directory. Click Create.

  3. The parameter editor has multiple tabs where you must configure parameters to reflect your EMIF implementation:


Section Content
Intel Arria 10 EMIF Parameter Editor Guidelines
