2.5.1. Simulation Results

Note: The simulation was run with MCDMA P-Tile.
Figure 7. Simulation Log

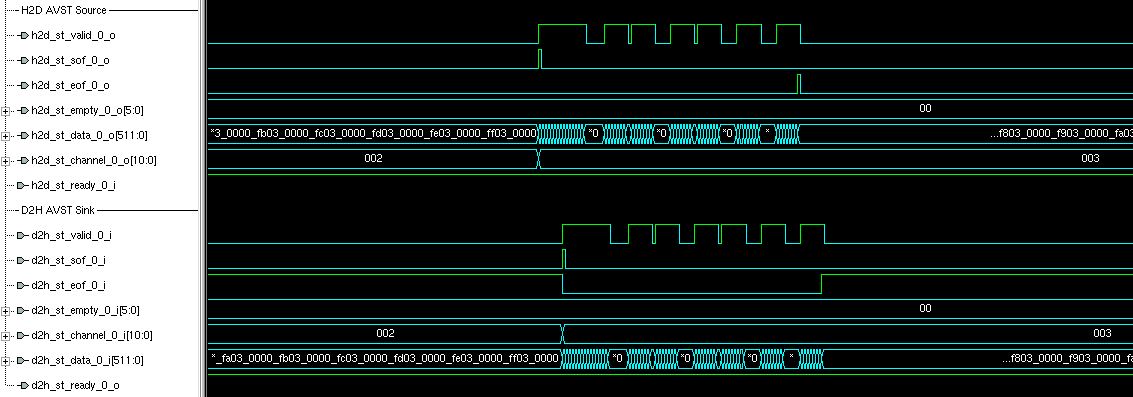

Figure 8. Simulation Waveform
