5.2.3. PCI Express and PCI Capabilities Parameters

For each core (PCIe0/PCIe1/PCIe2/PCIe3), the PCI Express / PCI Capabilities tab contains separate tabs for the device, link, device serial number (EP), power management, VSEC, PRS (EP), MSI (EP), MSI-X (EP), PASID (EP), ATS (EP), TPH, PTM (EP), VirtIO (EP), LTR (EP), ACS (RP), slot (RP), and legacy interrupt pin register (EP) parameters.

Note:
  • (EP) = the parameter is only available when the IP is in Endpoint mode.
  • (RP) = the parameter is only available when the IP is in Root Port mode.
  • Otherwise, the parameter is always available.
Figure 53. PCI Express and PCI Capabilities Parameters in Endpoint Mode

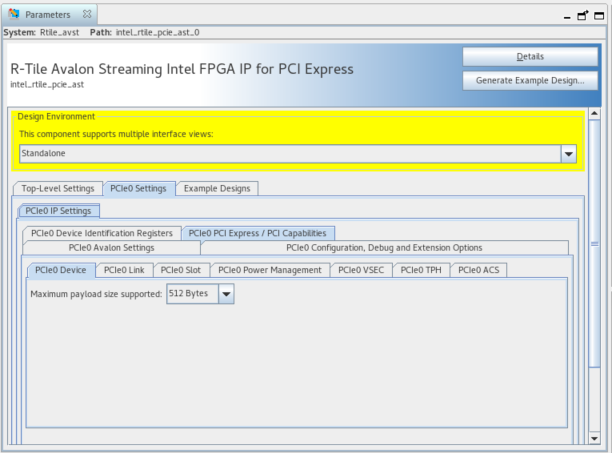

Figure 54. PCI Express and PCI Capabilities Parameters in Root Port Mode

Section Content
Device Capabilities
VirtIO Parameters
Link Capabilities
Legacy Interrupt Pin Register
MSI Capabilities
MSI-X Capabilities
Slot Capabilities
Latency Tolerance Reporting (LTR)
Process Address Space ID (PASID)
Device Serial Number Capability
Page Request Service (PRS)
Access Control Service (ACS)
Power Management
Vendor Specific Extended Capability (VSEC) Registers
TLP Processing Hints (TPH)
Address Translation Services (ATS) Capabilities
Precision Time Measurement (PTM)
