5.2. Core Parameters

Depending on which Hard IP Mode you choose in the Top-Level Settings tab, you will see different tabs for setting the core parameters.

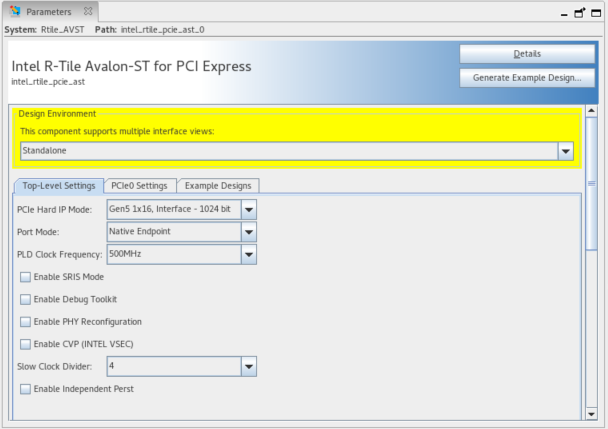

If you choose a 1x16 mode (Gen3, Gen4 or Gen5), only the PCIe0 Settings tab will appear.

Figure 47. Intel R-Tile Avalon® Streaming Top-Level IP Parameter Editor for PCIe Gen5 1x16 Mode

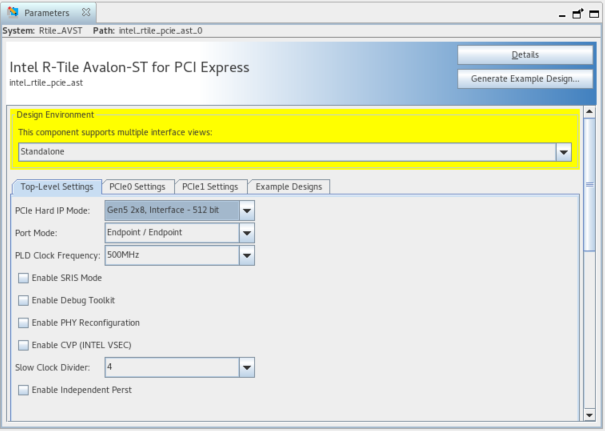

If you choose a 2x8 mode (Gen3, Gen4 or Gen5), only the PCIe0 Settings and PCIe1 Settings tabs will appear.

Figure 48. Intel R-Tile Avalon® Streaming Top-Level IP Parameter Editor for PCIe Gen5 2x8 Mode

If you choose a 4x4 mode (Gen3, Gen4 or Gen5), the PCIe0 Settings, PCIe1 Settings, PCIe2 Settings and PCIe3 Settings tabs will appear.

Figure 49. Intel R-Tile Avalon® Streaming Top-Level IP Parameter Editor for PCIe Gen5 4x4 Mode

Section Content
Avalon Parameters
Base Address Registers
PCI Express and PCI Capabilities Parameters

Level Two Title
