A.1.3. Finding the NIC ID in the Intel® Quartus® Prime Software

Use the following method to find the NIC ID in the Intel® Quartus® Prime software:

  • Display the License Setup settings by clicking Tools > License Setup.

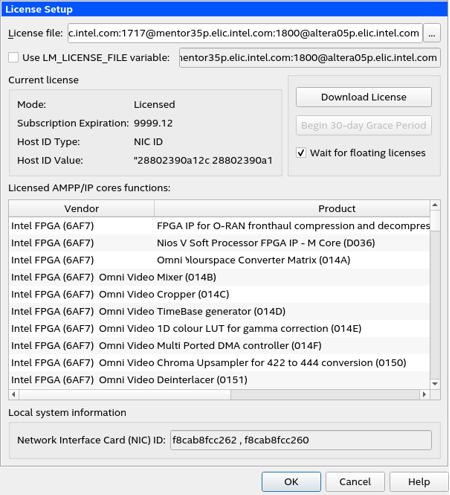

Figure 5. NIC ID in License Setup Settings

The computer's NIC ID appears under Local System info in the Network Interface Card (NIC) ID field.
