9.1.7. Connecting the ALU Folding Ready Signal

Procedure

Connect a Ready block from the Primitive library to the ChannelOut block.

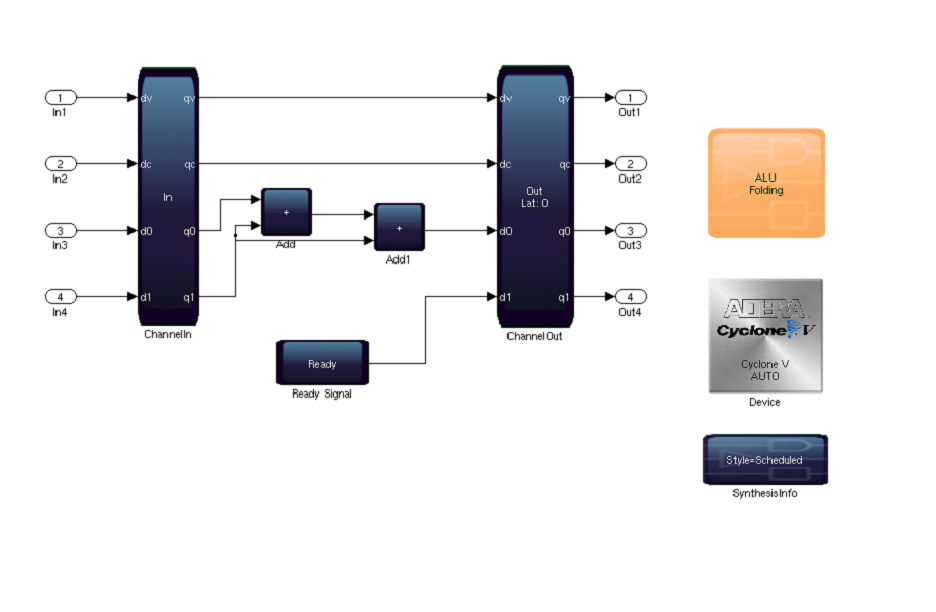

Figure 102. Connecting Ready Block
