1.2. Generating the Design
Procedure

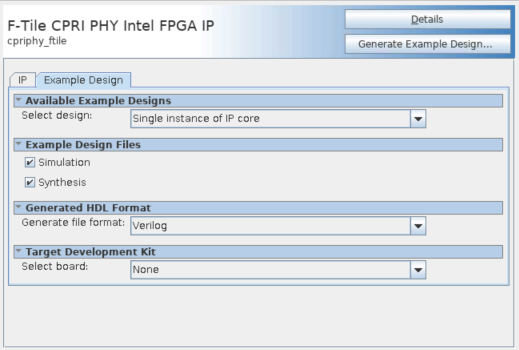

Example Design Tab in IP Parameter Editor
![](/content/dam/docs/us/en/683281/22-2-3-3-0/gdq1614374045704.png)
To create an Intel® Quartus® Prime Pro Edition project:
- In the Intel® Quartus® Prime Pro Edition software, click File > New Project Wizard to create a new project, or File > Open Project to open an existing project. The wizard prompts you to specify a device.
- Specify the device family Agilex (I-series) and select a device that meets all of these requirements:
- Transceiver tile: F-tile
- Transceiver speed grade: -1 or -2
- Core speed grade: -1 or -2 or -3
- Click Finish.
Follow these steps to generate the F-Tile CPRI PHY Intel® FPGA IP hardware design example and testbench:
- In the IP Catalog, locate and select F-Tile CPRI PHY Intel® FPGA IP. The New IP Variation dialog box appears.
- Specify a top-level name for your custom IP variation. The parameter editor saves the IP variation settings in a file named <your_ip> .ip.
- Click OK. The parameter editor appears.
- On the IP tab, specify the parameters for your IP core variation.
- On the Example Design tab, under Example Design Files, select the Simulation option to generate the testbench and the compilation-only project. Select the Synthesis option to generate the hardware design example. You must select at least one of the Simulation and Synthesis options to generate the design example.
- On the Example Design tab, under Generated HDL Format, select Verilog HDL or VHDL. If you select VHDL, you must simulate the testbench with a mixed-language simulator. The device under test in the ex_<datarate> directory is a VHDL model, but the main testbench file is a SystemVerilog file.
- Click the Generate Example Design button. The Select Example Design Directory dialog box appears.
- If you want to modify the design example directory path or name from the defaults (cpriphy_ftile_0_example_design), browse to the new path and type the new design example directory name (<design_example_dir>).
