Intel® Cyclone® 10 LP FPGA Evaluation Kit
Power-Optimized System Integration
Achieve high performance with the evaluation kit powered by Cyclone 10 LP for I/O expansion and bridging applications.
Scalable Performance
Redesign the 32-bit embedded Nios II/e processor to accelerate high performance with evolving market trends for a low-power, low-cost solution.
Reduce Time to Market
Reduce your learning curve with easy-to-use reference designs, development tools with self-help documentation, and tutorials.
Overview
This evaluation kit is an easy-to-use platform to begin your FPGA design.
- Use Intel® Enpirion® Power Solutions to meet project-specific power requirements.
- Configure the Nios® II processor to adjust for project performance and features.
- Leverage several standard I/O headers.
Contact an Intel® Authorized Distributor today.
Who Needs this Product
Industrial IoT developers, independent software vendors (ISV), and technologists who:
- Develop FPGA prototypes and solutions for hardware systems
- Develop low-power applications with high I/O per logic element
- Integrate functions or devices via Arduino* UNO R3 shields, PMOD, GPIO or Ethernet connectors
Industrial Use Cases
- Interfacing and bridging applications
- Sensor fusion
- Power- and cost-optimized solutions
Five Ways to Build Flexibility into Industrial Applications with FPGAs

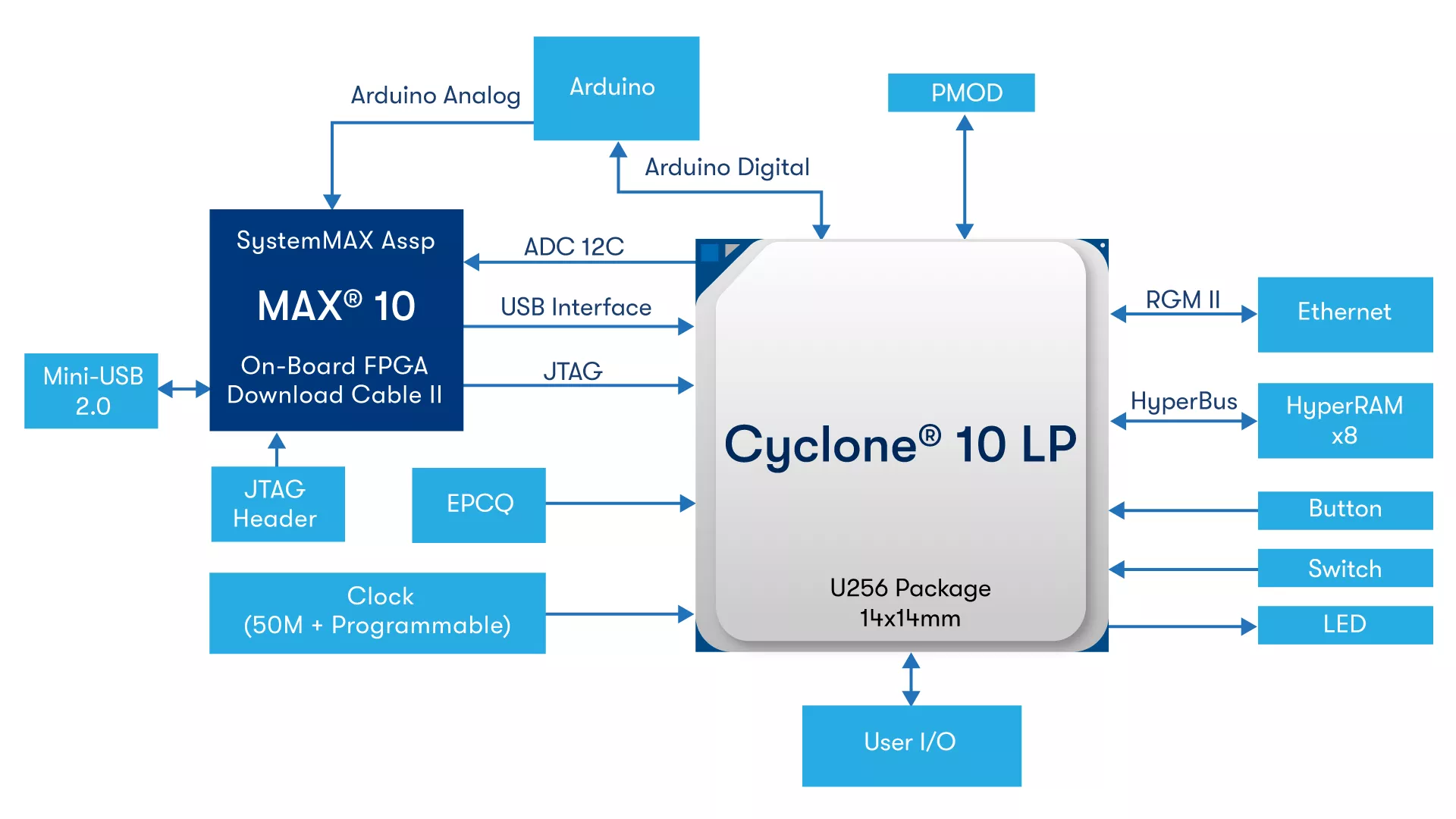

Kit Details
Hardware

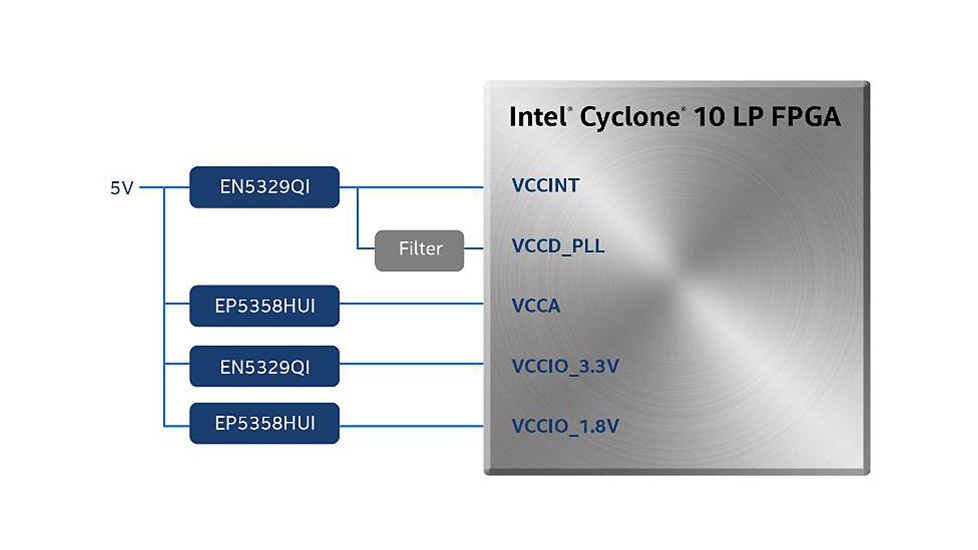

Intel® Enpirion® EN5329QI/EN5339QI- 2 A/3 A PowerSoC
Intel® Enpirion® EP5358xUI 600 mA PowerSoC DC-DC step-down converters with integrated inductor
Gigabit Ethernet
Intel® MAX® 10 FPGA
USB Y-cable (USB Type-A to mini Type-B) for both on-board Intel FPGA download cable II and 5 V power supply from USB port
Preinstalled Software
User manual
Board design files: schematics, bill of materials (BOM), and assembly drawings
Example designs (FPGA projects and application software):
- Board test system
- Nios II processor system
Specifications
Programmable Logic
Logic elements (LE): 25 K LE
594 kilobit memory
66 18 x 18 multipliers
4 phased-locked loops (PLL)
Up to 150 general purpose I/O (GPIO)
Up to 52 low-voltage differential signaling (LVDS) pairs
FPGA Configuration Sources
On-board USB-Blaster* II (JTAG) programming cable
Serial configuration flash for FPGA and processor code
External 2 x 5 JTAG header
FPGA I/O Interfaces
4 user push buttons
3 user dual inline package (DIP) switches
1 configuration push button
1 reset push button
4 user LEDs
One Arduino* expansion header (Arduino UNO* R3 compatibility) that can connect with Arduino shields
12-bit Digilent Pmod compatible connector
One 40-pin expansion header with diode protection
Hardware Design
Nios II embedded processor
Cypress HyperBus* controller
Flash controller
On-chip RAM
GPIO for LEDs, push buttons, slide switches, and Arduino
I2C controller: Intel® MAX® 10 FPGA analog-to-digital converter (ADC)
JTAG UART: USB Blaster II
Intel® MAX® 10 FPGA Hardware Design
On-board programmer for Intel® FPGAs
System controller including:
- Programmable clock adjustment
- Current measurement for Intel Cyclone 10 LP device power rails
- Arduino analog input measurement
- 9-channel, 12-bit ADC, 1 megasample per second (Msps)
Power
5-volt DC power adapter with a center-positive jack and the following physical dimensions:
- Inside jack diameter: 2.1 mm
- Outside jack diameter: 5.5 mm
Software
Intel® Quartus® Prime Software Suite
Used for FPGA hardware development. Programs are written in a hardware description language such as Verilog or VHDL.
- Nios® II embedded processor software - For embedded software development. Applications are written in the C programming language.
- Intel® FPGA IP library - Includes IP for protocol and memory interfaces, digital signal processing (DSP), Nios II embedded processors, and related peripherals.
Documentation & Support
Support
Get additional kit information and kit support on Linux* from Terasic and Rocketboards.org.
