Verilog HDL: Unsigned Multiplier

author-image

By

This example describes an 8 bit unsigned multiplier design in Verilog HDL. Synthesis tools detect multipliers in HDL code and infer lpm_mult function.

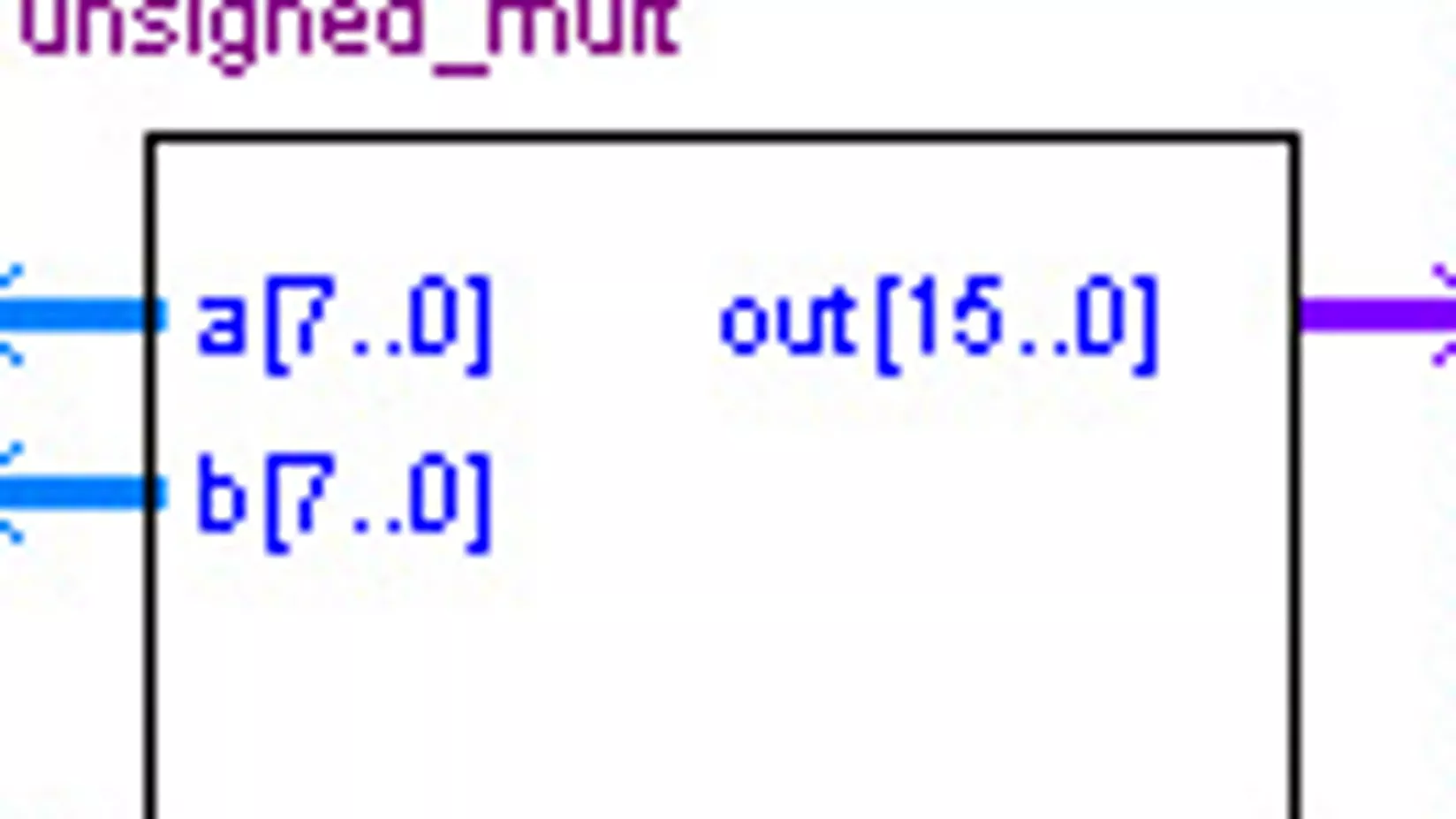

Figure 1. Unsigned multiplier top-level diagram.

Table 1. Unsigned Multiplier Port Listing

Port Name

Type

Description

a[7:0], b[7:0]

Input

8 bit data inputs to multiplier unit

out[15:0]

Output

16 bit multiplier output
