Verilog HDL: Ternary Adder Tree

author-image

By

This example describes a parameterized ternary adder tree in Verilog HDL. For devices which contain large lookup tables as combinational logic structures in logic element (LE) such as Stratix® II, structuring adder trees as ternary adder trees can give significant performance improvement.

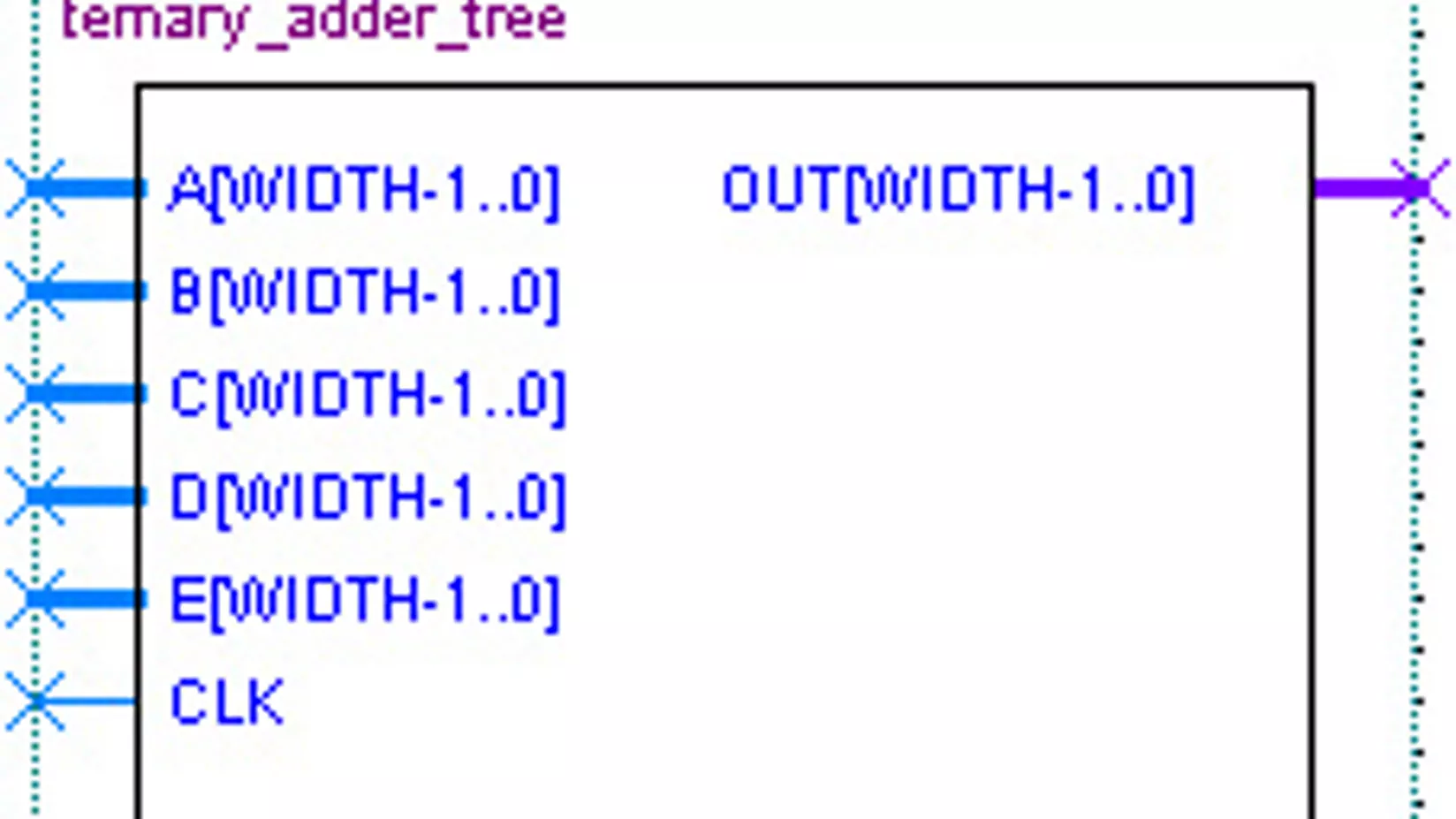

Figure 1. Ternary adder tree top-level diagram.

Download the files used in this example:

The use of this design is governed by, and subject to, the terms and conditions of the Intel® Design Example License Agreement.

Table 1. Ternary Adder Tree Port Listing

Port Name Type Description
A, B, C, D, E Input Parameterized inputs to adder tree
CLK Input Clock
OUT Output Parameterized output of adder tree
