Verilog HDL: Gray Counter

author-image

By

This example describes an 8 bit Gray-code counter design in Verilog HDL. The Gray code outputs differ in only one bit for every two successive values.

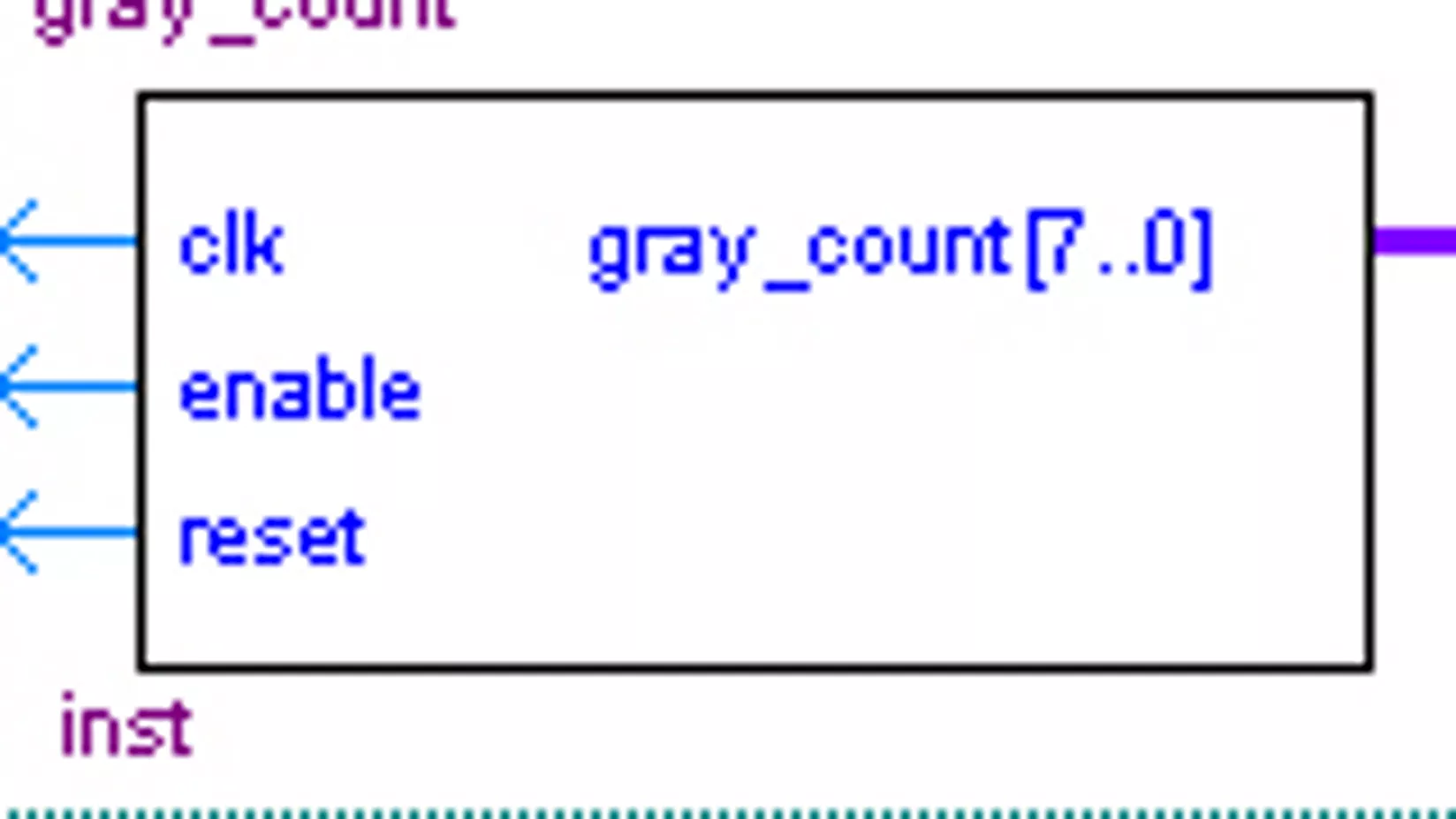

Figure 1. Gray counter top-level diagram.

Download the files used in this example:

Table 1. Gray Counter Port Listing

Port Name Type Description
clk Input Clock input
enable Input Enable input
reset Input Reset input
gray_count[7:0] Output 8 bit data output
