How to Identify My Intel® Xeon® Processor Markings for Warranty Requests

Documentation

Identify My Product

000005965

11/20/2024

Note:
  • 2D matrix (or 2DID, or 2D barcode) is on the topside of the processor, that is, marking on the IHS (integrated heat spread) of the processor.
  • 2nd copy of the 2DID is added on the bottom side starting with the 4th Gen Xeon (Sapphire Rapids) processors for server and workstation including boxed processor SKUs.
  • The processor manual covers the details.



Note: Use the Intel® Processor Identification Utility – Windows* version to identify the specifications of your processor. Also, review the sockets that are supported by your processor.

The following information helps you identify server processor markings. Processor markings let customer support know if you are eligible for a warranty exchange.

Note: Intel® Xeon® Scalable Processors are dictated by the manufacturer.

Where do I find the processor markings?

All Intel® Xeon® Scalable Processors have markings inscribed on the top of the processor package. The most recent Intel® Xeon® Scalable Processors packages and markings are described here.

The serial number is required for warranty processing. The serial number of a processor is typically a combination of the finished process order (FPO) number and the assembly test process order (ATPO) number. If the ATPO Number is not present, provide the FPO number.

If you have the FPO number and ATPO numbers in hand, check your warranty coverage online at the Warranty Center.

If you are not sure about the processor package or socket for your processor, collect the processor markings and contact Support.

Install Steps Video (Steps are identical to older models): How to Install an Intel® Xeon® Processor

Click on the topic for details:

Intel® Xeon® 6 Processors

On Intel® Xeon® 6 the marks are on the examples below:

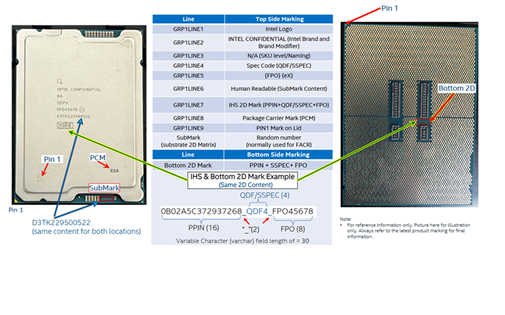

Note: The image below depicts a pre-production CPU and does not represent the final production version.

Orientation example 2

Line Top Side Marking
Line 1 Intel Logo
Line 2 INTEL Brand
Line 3 N/A (SKU level/Naming)
Line 4 Spec Code (QDF/SSPEC)
Line 5 (FPO)
Line 6 Human Readable (SubMark Content)
Line 7 IHS 2D Mark (PPIN+QDF/SSPEC+FPO)
Line 8 Package Carrier
Line 9 PIN1 Mark on Lid
SubMark Randon Number
Bottom 2D Mark PPIN+ SSPEC+FPO

On the orders for Intel® Xeon® 6 the word INTEL will automatically print on the labels and is hard coded in iLabel.

Note: There is a 3 character on the right side of the 2D Mark (see example) that is a random number used for internal controls. This number is not linked to any SKU specification or CPU feature.

NSWER 1
4th and 5th Generation Intel® Xeon® Scalable Processors

On the 4th and 5th Gen Intel® Xeon® Scalable Processors, a change was made on the markings, as in the example below:

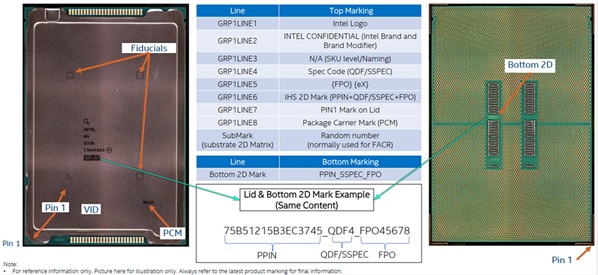

Note: The image below depicts a pre-production CPU and does not represent the final production version.

Scan PPIN Scan for Vis_ID
Scan PPIN M26P8K1400671

There is also a 5-digit number on the internal side of the 4th Generation Intel® Xeon® Scalable Processors, which is used for internal control and will not match any Box information.



Internal side

Scan Backside ID

Scan backside ID





1st, 2nd and 3rd Gen Intel® Xeon® Scalable Processors

On the 2nd and 3rd Gen Intel® Xeon® Scalable Processors the markings, as in the example below:

LGA 3647

Line 1 Copyright Marks
Line 2 Processor Family
Line 3 Processor Number
Line 4 sSpec # / CPU Speed
Line 5 Finished Process Order (FPO)
Line 6 Partial Serial Number
Line 7 Assembly Test Process Order (ATPO) Serial Number

Serial Number = Line 5 (for example, L605G225)
sSpec = Line 4 (for example, SR3GD)

Note: Scanner for 2D Matrix is needed to read the Assembly Test Process Order (ATPO) Serial Number on Line 6.
Intel® Xeon® E Processor

Intel® Xeon® E Processor

LGA 1150

Line 1 Processor Family
Line 2 Processor Number
Line 3 sSpec # / CPU Speed
Line 4 Finished Process Order (FPO)
Line 5 Assembly Test Process Order (ATPO) Serial Number

Serial Number = Line 4 (for example, L838C218)
sSpec = Line 3 (for example, SC3BP)

Note: Scanner for 2D Matrix is needed to read the Assembly Test Process Order (ATPO) Serial Number on Line 5.
Intel® Xeon® E3 Processor Family

Intel® Xeon® Processor E3 v6 Family
Intel® Xeon® Processor E3 v5 Family
Intel® Xeon® Processor E3 v4 Family
Intel® Xeon® Processor E3 v3 Family
Intel® Xeon® Processor E3 v2 Family
Intel® Xeon® Processor E3 Family



Line 1 Copyright Marks
Line 2 Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E3-1240V3)
Line 3 sSpec # / CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)

Serial Number = Line 5 (for example, L407A226)
sSpec= Line 3 (for example, SR182)

Intel® Xeon® Processor E3 v2 Family: Intel® Xeon® E3-1200 v2 Processors

LGA 1155

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E3-1290V2)

Line 3 sSpec # + CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)
Line 6 Assembly Test Process Order (ATPO)

Serial Number = Line 5 + Line 6 (for example, M384N098- 7504)
sSpec= Line 3 (for example, SB0BC)



Intel® Xeon® E5 Processor Family

Intel® Xeon® Processor E5 v4 Family
Intel® Xeon® Processor E5 v3 Family
Intel® Xeon® Processor E5 v2 Family
Intel® Xeon® Processor E5 Family

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E5-2440)

Line 3 sSpec # + CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)
Line 6 Assembly Test Process Order (ATPO)
Line 7 Partial Serial Number

Serial Number = Line 7 (for example, 3B0977)
sSpec = Line 3 (for example, SR8LM)

Intel® Xeon® Processor E5 Family (except the Intel® Xeon® E5-1400/2400 Processors)

LGA 2011

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E5-2660)

Line 3 sSpec # + CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)
Line 6 Lot Number + Serial Number

Serial Number = Line 6 (for example, 3Q244225B0709)
sSpec = Line 3 (for example, ST0BR)

Intel® Xeon® E7 Processor Family

Intel® Xeon® Processor E7 v4 Family
Intel® Xeon® Processor E7 v3 Family
Intel® Xeon® Processor E7 v2 Family
Intel® Xeon® Processor E7 Family





LGA 2011

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E7-8894 v4)

Line 3 sSpec # + CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)
Line 6 Lot Number + Serial Number

Serial Number = Line 6 (for example, 3Q244225B0709)
sSpec = Line 3 (for example, ST0BR)

Intel® Xeon® Legacy Processor

LGA 1156 - Intel® Xeon® 3400 series

Intel® Xeon® X3430
Intel® Xeon® X3440
Intel® Xeon® X3450
Intel® Xeon® X3460
Intel® Xeon® X3470
Intel® Xeon® X3480
Intel® Xeon® L3406

LGA 1156

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, 3460)

Line 3 sSpec # + CPU Speed
Line 4 Country of Manufacture
Line 5 Finished Process Order (FPO)
Line 6 Assembly Test Process Order (ATPO)

Serial Number = Line 5 + Line 6 (for example, P090T875-6382)
sSpec = Line 3 (for example, SC0QF)

LGA 1366 - Intel® Xeon® 5500 and 5600 Series Processor

Intel® Xeon® E5506
Intel® Xeon® E5520
Intel® Xeon® E5540
Intel® Xeon® X5550
Intel® Xeon® X5670
Intel® Xeon® X5680
Intel® Xeon® W3550
Intel® Xeon® W3670

LGA 1366

Line 1 Copyright Marks
Line 2

Trademark and Branding + Processor Family (for example, Xeon) +
Processor Number (for example, E5-5501)

Line 3 sSpec # and Manufacturing Country
Line 4 CPU speed/L2 cache size/Bus speed
Line 5 Finished Process Order (FPO)
Line 6 Serial Number

Serial Number = Line 6 (for example, 4102)
sSpec = Line 3 (for example, S02BG)


LGA 775 - Intel® Xeon® 3000 series Processor

Intel® Xeon® 3050
Intel® Xeon® 3060
Intel® Xeon® 3070
Intel® Xeon® 3085
Intel® Xeon® E3110
Intel® Xeon® E3120

LGA 775



Line 1 CPU speed/L2 cache size/Bus speed
Line 2 Processor Family (for example, Xeon)
Line 3 sSpec # and Manufacturing Country
Line 4 Processor number (for example, X3220)
Line 5 Finished Process Order (FPO)
Line 6 Assembly Test Process Order (ATPO)
Line 7 Partial Serial Number

Serial Number = Line 5 + Line 6 + Line 7 (for example, 2822B890-1Z688177B9996)
sSpec = Line 3 (for example, SL028)


LGA 771 - Intel® Xeon® 5000 and 7000 series Processor

Intel® Xeon® 5110
Intel® Xeon® 5120
Intel® Xeon® 5130
Intel® Xeon® 5140
Intel® Xeon®  5150
Intel® Xeon® 5160
Intel® Xeon® E5310
Intel® Xeon® E5320
Intel® Xeon® E5345
Intel® Xeon® E5430
Intel® Xeon® E5450
Intel® Xeon® X5460
Intel® Xeon® X5470
Intel® Xeon® L5310
Intel® Xeon® L5320

LGA 771

Line 1 CPU speed/L2 cache size/Bus speed
Line 2 Processor Family (for example, Xeon)
Line 3 sSpec # and Manufacturing Country
Line 4 Copyright Marks + Platform Compatibility Guide
Line 5 Finished Process Order (FPO)
Line 6 Assembly Test Process Order (ATPO)
Line 7 Partial Serial Number

Serial Number = Line 5 + Line 6 + Line 7 (for example, 7823N808-8900186H9806)
sSpec = Line 3 (for example, SL022)
