In a design, a reset signal that is generated in one clock domain, and used in one or more other asynchronous clock domains, should be synchronized. A reset signal that is not synchronized can cause metastability problems.

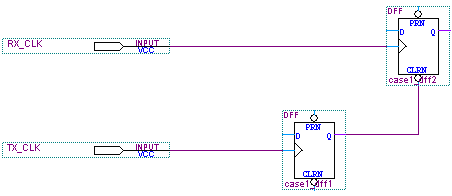

The following image shows an example of a reset signal that is generated in one clock domain, and used in one or more other asynchronous clock domains, that is not synchronized:
The synchronization of the reset signal should follow the following guidelines:
- The reset signal should be synchronized with two or more cascading registers in the receiving asynchronous clock domain.
- The cascading registers should be triggered on the same clock edge.
- There should be no logic between the output of the transmitting clock domain and the cascaded registers in the receiving asynchronous clock domain.

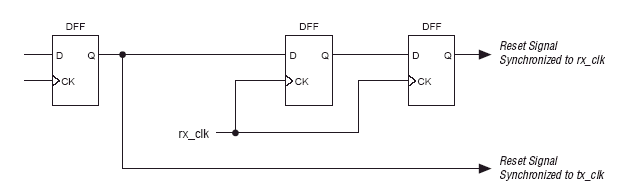

The following image shows an example of a synchronized reset signal:
Synchronizing the reset signal delays the signal by an extra clock cycle; this delay should be considered when using the reset signal in a design.
Important: Important: This rule can be
turned on or off as a global setting for
the entire design on the Design Assistant
page; or enabled or disabled for nodes, entities, or instances with
Rule R105. This rule has a
Medium severity level.
