- Enable directional bundles— Specifies that Design Partition Planner draw pairs of unidirectional connection bundles rather than single bidirectional bundles.
-
Target partition size— Specifies the target size for design
partitions as a percentage of design size.

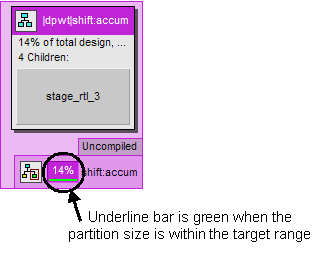

When the size of a design partition falls within the range specified by the Target partition size option, a green underline appears immediately below the design percentage field at the bottom-right of the partition. If the size of the design partition is not within the target range, the underline is yellow.
- Connection is failing if slack is— Specifies a threshold slack value for defining failing paths. Paths with slack less than the specified value are considered failing paths.
